NGP 112NDKB 36" DKB-finish Aluminum Neoprene Door Shoe is designed to provide superior protection and performance for commercial restroom partitions. Constructed from Aluminum Alloy 6063 with T5 temper, this door shoe guarantees durability and longevity, while the synthetic EPDM rubber in a polypropylene thermoplastic matrix ensures excellent abrasion resistance and tensile strength. This door shoe is flame-resistant and moisture-resistant, making it suitable for a wide temperature range of -81°F to 275°F. Moreover, it boasts good resistance to ozone, sunlight, and aging, ensuring it maintains its integrity over time. The NGP 112NDKB is BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, providing peace of mind regarding its reliability in various conditions. Installation is hassle-free, thanks to slotted screw holes that allow for easy adjustment. The product comes with #6 x 3/4" stainless steel SMS fasteners, ensuring a secure fit. Finished in a stylish dark bronze, this door shoe not only functions effectively but also complements the aesthetics of your restroom environment. Ideal for those seeking a robust and efficient solution for partition doors, the NGP 112NDKB is a standout choice.

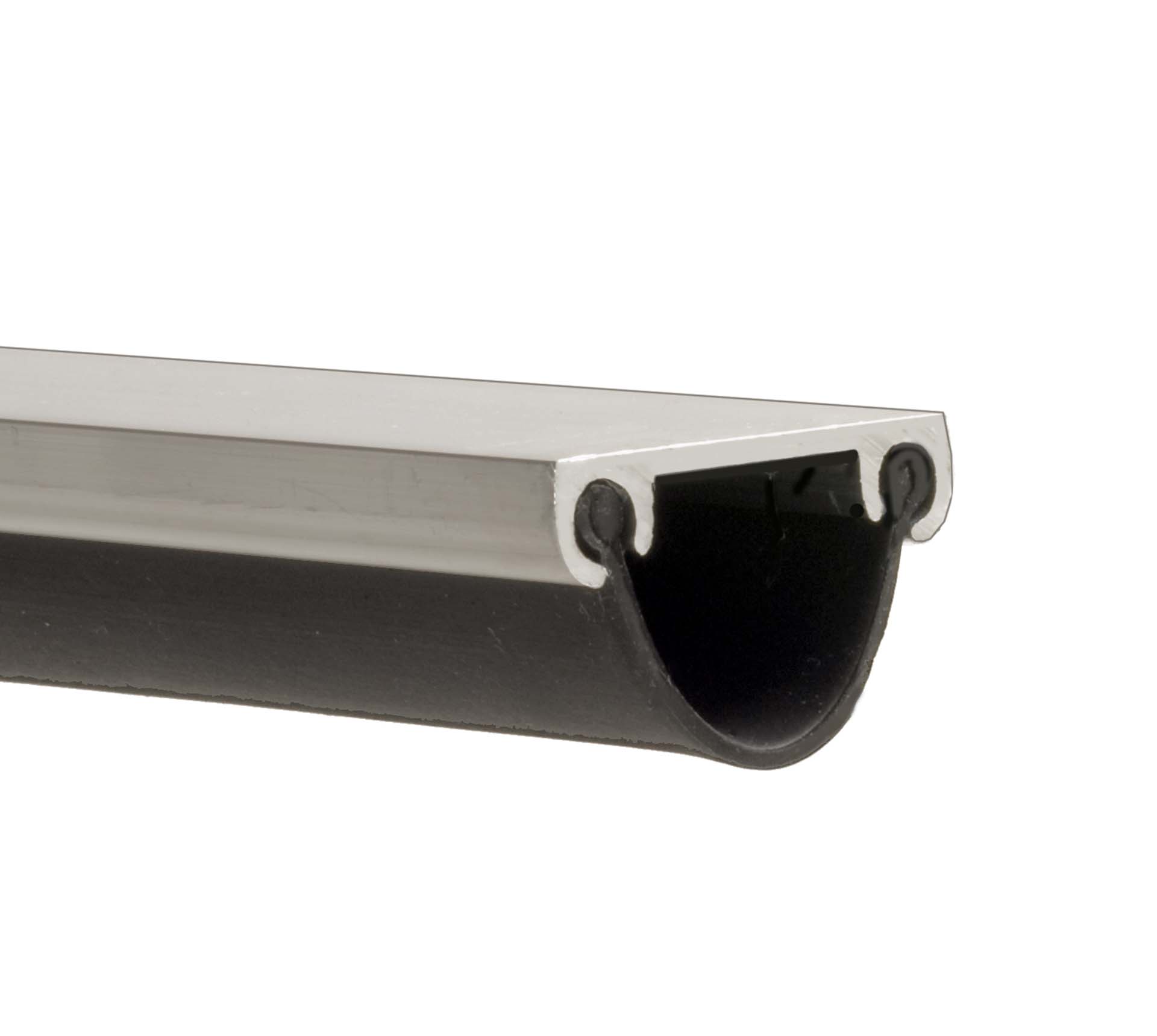

36" DKB-finish Aluminum Neoprene Door Shoe
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is Black
Fasteners: #6 x 3/4" Stainless Steel SMS Furnished
Finish: Dark Bronze Finish
Finish Description: Dark Bronze
Fire Rated: Flame-Resistant
Length: 36.0"
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Series: NGP Gasketing
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Subtype: Weatherstrip
Temperature Range: Temperature Range -81°F to 275°F
Type: Hinges and Pivots
