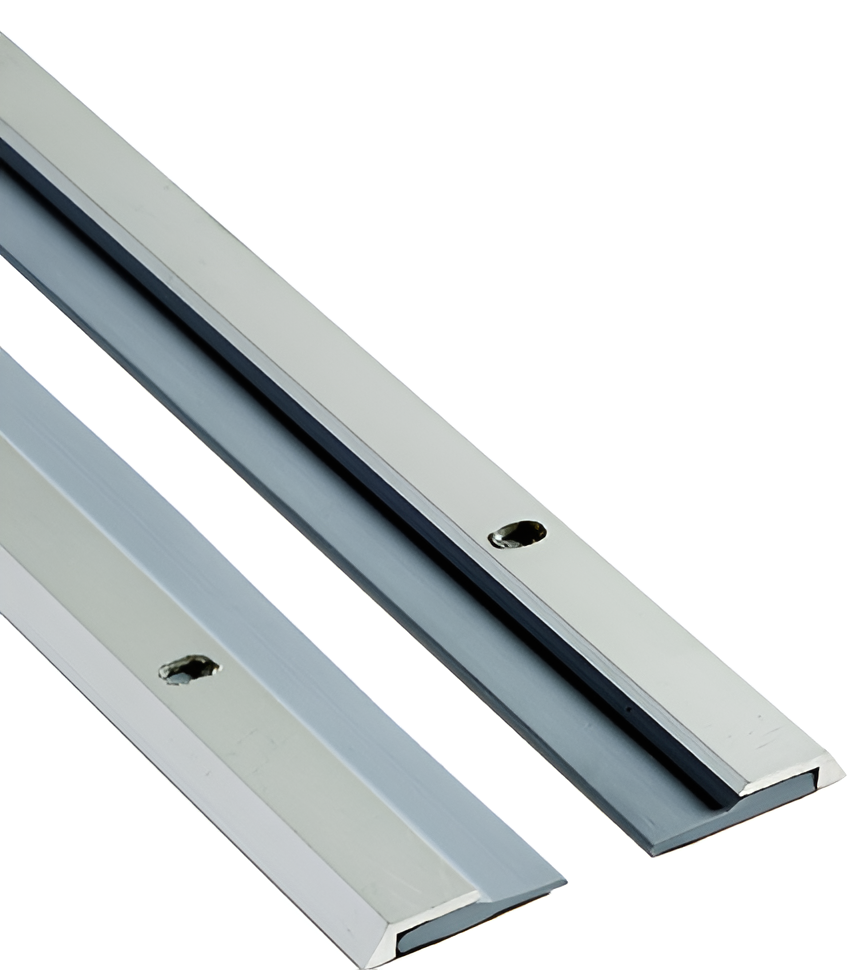

NGP 115NA 84IN Anodized Aluminum Astragal with EPDM Seal Set

National Guard Products Inc NGP 115NA 84IN Anodized Aluminum Astragal with EPDM Seal Set offers a robust solution for enhancing door security and energy efficiency. Constructed from high-quality aluminum alloy 6063 with a T5 temper, this astragal is designed for durability and strength. The synthetic EPDM rubber embedded in a polypropylene thermoplastic matrix ensures exceptional abrasion resistance, tensile strength, and memory, making it ideal for demanding environments. This flame-resistant astragal can withstand extreme temperatures, ranging from -81°F to 275°F, and exhibits excellent resistance to ozone, sunlight, and aging. It is BHMA certified to ANSI/BHMA A156.22 performance standards, addressing heat, cold, air, and smoke infiltration effectively. The two-piece set is finished in sleek black anodized aluminum, providing both functionality and a professional appearance. Included with the astragal are six stainless steel sheet metal screws, with slotted screw holes for easy adjustment during installation. This product meets various fire safety standards, including IBC, NFPA 80, NFPA 105, and NFPA 252, ensuring compliance for fire-rated applications. However, it's important to note that fire-rated astragal seals should not replace any required by the door manufacturer to maintain its fire label. Elevate your door security with this reliable and well-engineered solution from National Guard Products.

Anodized Aluminum Astragal with EPDM Seal Set

• Aluminum alloy 6063, T5 temper
• Synthetic EPDM rubber in polypropylene thermoplastic matrix
• Very good Abrasion resistance, tensile strength and memory
• Flame-resistant
• Temperature range -81°F to 275°F
• Good resistance to ozone, sunlight and aging
• BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
• Fire-rated astragal seals cannot replace any astragal required on the door by the door manufacturer to maintain its fire label
• IBC, NFPA 80, NFPA105, and NFPA 252 require the gap at the meeting edge between fire labeled doors must not exceed 1/8"
• 6 x 3/4" Stainless steel sheet metal screws furnished
• Screw holes are slotted for adjustment
• Provided as two-piece set
• Color is black
• Anodized aluminum

Features

• Synthetic EPDM rubber in polypropylene thermoplastic matrix
• Very good Abrasion resistance, tensile strength and memory
• Temperature range -81°F to 275°F
• IBC, NFPA 80, NFPA105, and NFPA 252 require the gap at the meeting edge between fire labeled doors must not exceed 1/8"
• Provided as two-piece set
• Fire-rated astragal seals cannot replace any astragal required on the door by the door manufacturer to maintain its fire label
• Anodized aluminum
• Flame-resistant
• BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
• Color is black
• 6 x 3/4" Stainless steel sheet metal screws furnished
• Good resistance to ozone, sunlight and aging
• Aluminum alloy 6063, T5 temper
• Screw holes are slotted for adjustment
