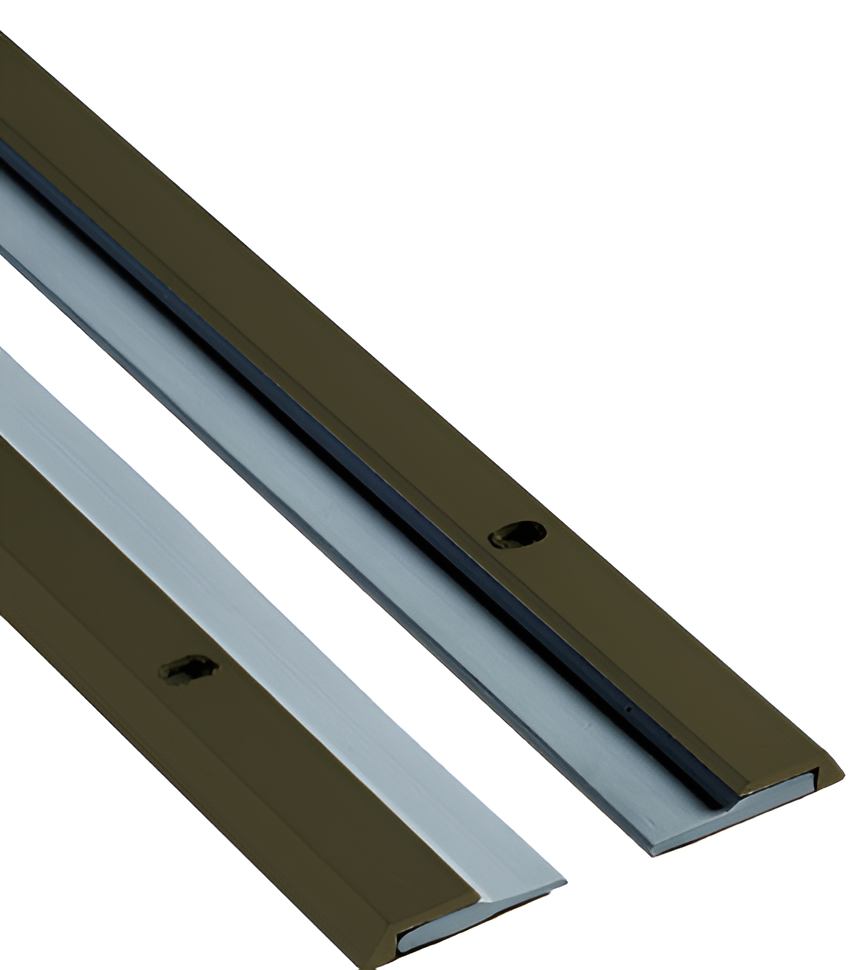

NGP 115NDKB 96IN Anodized Aluminum Astragal with EPDM Seal, DKB Dark Bronze

National Guard Products Inc. NGP 115NDKB 96IN Anodized Aluminum Astragal with EPDM Seal in Dark Bronze combines durability and versatility, making it an essential component for enhancing door performance. Crafted from high-quality aluminum alloy 6063 with a T5 temper, this astragal is designed to withstand harsh conditions while providing a sleek, modern look. The synthetic EPDM rubber embedded in a polypropylene thermoplastic matrix offers excellent abrasion resistance, tensile strength, and memory, ensuring a long-lasting seal that maintains its integrity over time. With a temperature range of -81°F to 275°F, it performs reliably in extreme weather conditions. This fire-rated astragal is BHMA Certified to ANSI/BHMA A156.22 standards, ensuring it meets rigorous performance tests for heat, cold, air infiltration, and smoke infiltration. It is important to note that while this astragal enhances fire-rated doors, it cannot replace any required astragal from the door manufacturer to maintain its fire label. Included with the astragal are six stainless steel sheet metal screws, with slotted screw holes allowing for easy adjustments. The two-piece set features a striking dark bronze anodized finish, providing both functionality and aesthetic appeal. Ideal for commercial or residential applications, this astragal is a smart choice for any building professional or knowledgeable homeowner.

Anodized Aluminum Astragal with EPDM Seal, DKB Dark Bronze

• Aluminum alloy 6063, T5 temper
• Synthetic EPDM rubber in polypropylene thermoplastic matrix
• Very good abrasion resistance, tensile strength and memory
• Flame resistant
• Temperature range -81°F to 275°F
• Good resistance to ozone, sunlight and aging
• BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
• Fire-rated Astragal Seals cannot replace any astragal required on the door by the door manufacturer to maintain its fire label
• IBC, NFPA 80, NFPA105, and NFPA 252 require the gap at the meeting edge between fire labeled doors must not exceed 1/8"
• 6 x 3/4" stainless steel sheet metal screws furnished
• Screw holes are slotted for adjustment
• Provided as two-piece set
• Color is black
• Dark bronze finish

Features

• Synthetic EPDM rubber in polypropylene thermoplastic matrix
• Temperature range -81°F to 275°F
• IBC, NFPA 80, NFPA105, and NFPA 252 require the gap at the meeting edge between fire labeled doors must not exceed 1/8"
• Flame resistant
• Provided as two-piece set
• Dark bronze finish
• BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
• Color is black
• Fire-rated Astragal Seals cannot replace any astragal required on the door by the door manufacturer to maintain its fire label
• 6 x 3/4" stainless steel sheet metal screws furnished
• Good resistance to ozone, sunlight and aging
• Aluminum alloy 6063, T5 temper
• Screw holes are slotted for adjustment
• Very good abrasion resistance, tensile strength and memory
