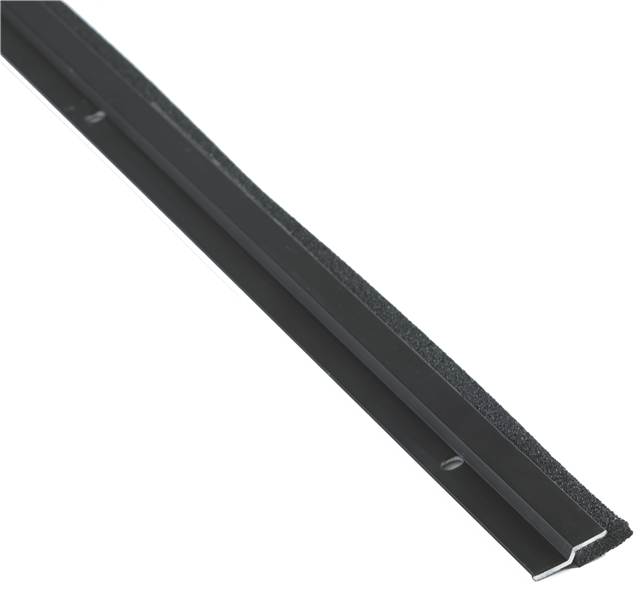

NGP 127NDKB 72" DKB-finish Aluminum Neoprene Sponge Seal is engineered to provide optimal performance and durability for commercial restroom applications. Constructed from high-quality Aluminum Alloy 6063 in T5 Temper, this seal combines strength with a sleek dark bronze finish, ensuring it complements various design aesthetics. The advanced synthetic EPDM rubber, encased in a polypropylene thermoplastic matrix, delivers excellent abrasion resistance, tensile strength, and memory. This makes it an ideal choice for high-traffic environments where durability is essential. With a temperature range of -81°F to 275°F, it maintains integrity under extreme conditions, while its flame-resistant and moisture-resistant properties enhance safety and longevity. This product is BHMA certified to ANSI/BHMA A156.22 performance tests, ensuring it meets rigorous standards for heat and cold. The included #6 x 3/4" stainless steel sheet metal screws come with slotted screw holes for easy adjustment during installation. Additionally, the seal boasts good resistance to ozone, sunlight, and aging, making it a reliable choice for any commercial restroom. For those seeking a robust, versatile sealing solution, NGP 127NDKB stands ready to deliver exceptional performance and peace of mind.
Attributes
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is Black
Fasteners: #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished
Finish: Dark Bronze Finish
Fire Rated: Flame-Resistant
Length: 72.0"
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Patented: Patent Pending Microcellular EPDM
Resistance: Good Resistance to Ozone, Sunlight and Aging
Series: Gasketing Series
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.
Standard-4: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-5: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Subtype: Weatherstripping
Temperature Range: Temperature Range -81°F to 275°F
Type: Weatherization
