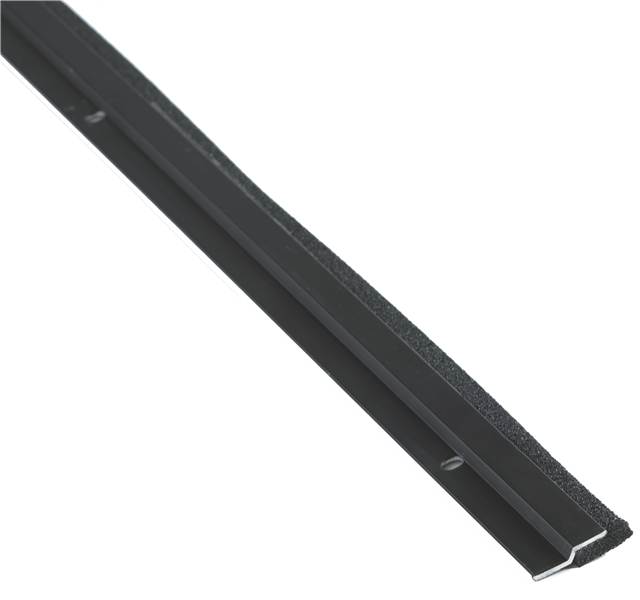

NGP 127NDKB 96" DKB-finish Aluminum Neoprene Sponge Seal offers superior performance and durability for commercial restroom partitions. Crafted from high-quality Aluminum Alloy 6063 with a T5 temper, this seal is designed to withstand demanding environments. The innovative synthetic EPDM rubber in a polypropylene thermoplastic matrix provides excellent abrasion resistance, tensile strength, and memory, ensuring longevity even under heavy use. This seal is flame-resistant and moisture-resistant, making it ideal for various applications. With a temperature range of -81°F to 275°F, it maintains its integrity in extreme conditions. The product is also certified by BHMA to ANSI/BHMA A156.22 performance tests for heat and cold, ensuring compliance with industry standards. Installation is hassle-free, thanks to the included #6 x 3/4" stainless steel sheet metal screws and slotted screw holes that allow for easy adjustments. The sleek black color with a dark bronze finish enhances the aesthetic appeal of any restroom environment. Additionally, NGP’s patented microcellular EPDM technology provides excellent resistance to ozone, sunlight, and aging, making this seal a reliable choice. For professionals seeking a high-performance solution that meets stringent regulations, the NGP 127NDKB seal stands out as an exceptional option.
Attributes
Ship via: No UPS - Common Carrier Only
Restriction message: Due to the large package size of this item, shipping charges will be as follows: 1 to 12 Units: $130.00 13 to 24 Units: $260.00 25 to 36 Units: $390.00
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is Black
Commercial Residential: Commercial
Fasteners: #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished
Finish: Dark Bronze Finish
Finish Description: Dark Bronze
Finish Family: Dark Bronze
Fire Rated: Flame-Resistant
Fire Rating: 3 Hours
Installation: Commercial
Length: 96.0"
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Pack Qty: 1
Patented: Patent Pending Microcellular EPDM
Resistance: Good Resistance to Ozone, Sunlight and Aging
Restrictions: Largethin
Series: Gasketing Series
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.
Standard-4: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-5: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Subtype: Weatherstripping
Temperature Range: Temperature Range -81°F to 275°F
Type: Weatherization
Ul Listing: UL10C
Unit of Measure: Each
