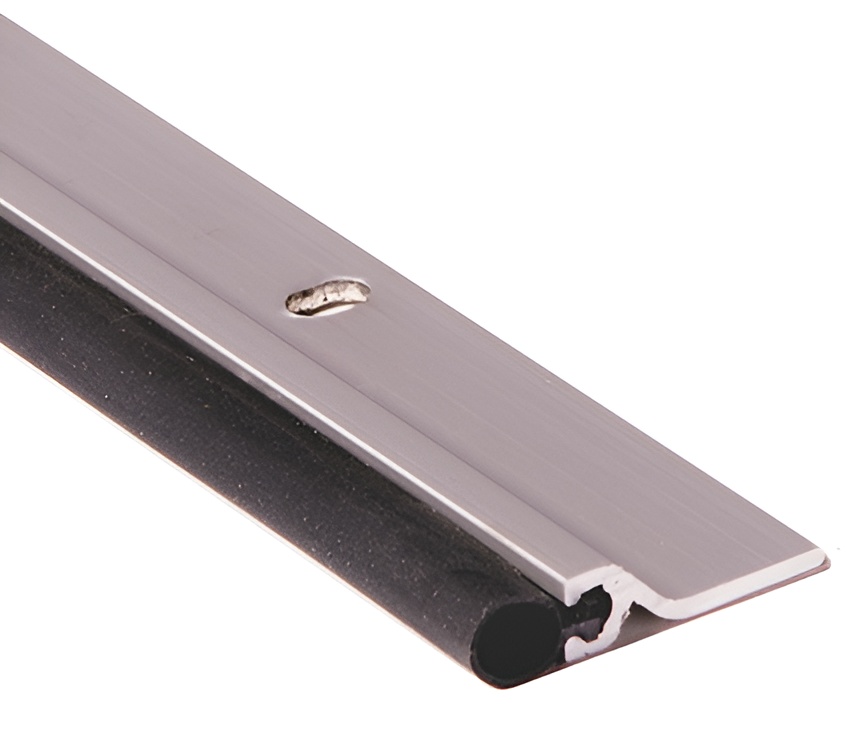

NGP 160SA 96" Anodized Aluminum Silicone Dense Bulb Perimeter Seal offers a superior solution for ensuring moisture resistance and thermal efficiency in commercial restroom partitions. Crafted from Aluminum Alloy 6063 with T5 temper, this seal combines durability with a sleek anodized finish. The dense silicone, engineered from synthetic rubber polymer (Siloxane), provides excellent flexibility and memory, maintaining performance in extreme temperatures ranging from -100°F to 500°F. This perimeter seal is flame-resistant and boasts remarkable resistance against ozone, UV light, and aging, making it ideal for demanding environments. It is particularly recommended for areas utilizing FM200 or Halon fire suppression systems. Each unit comes equipped with #6 x 3/4" stainless steel sheet metal screws, and the screw holes are slotted for easy adjustment during installation. Additionally, the NGP 160SA is BHMA certified, complying with ANSI/BHMA A156.22 performance tests for heat and cold, ensuring reliability and safety. With its robust construction and versatile application, this perimeter seal not only enhances the longevity of restroom partitions but also contributes to overall building integrity. Ideal for professionals seeking high-quality partition hardware, the NGP 160SA is a top choice for any commercial setting.
Attributes
Ship via: No UPS - Common Carrier Only
Restriction message: Due to the large package size of this item, shipping charges will be as follows: 1 to 12 Units: $130.00 13 to 24 Units: $260.00 25 to 36 Units: $390.00
Application: Excellent Flexibility and Memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Dense Silicone is Black
Fasteners: #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished
Finish: Anodized Aluminum
Finish Description: Satin Aluminum Clear Anodized
Fire Rated: Recommended for Areas Using FM200 or Halon Fire Suppression Systems
Flange Material: Anodized Aluminum
Hardware: #6 x 3/4" Stainless Steel Sheet Metal Screws
Insert Color: Black
Insert Material: Silicone
Length: 96.0"
Material: Synthetic Rubber Polymer: Siloxane
Moisture Resistant: YES
Resistance: Excellent Resistance to Ozone, UV and Aging
Restrictions: Largethin
Series: NGP Gasketing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Standards: ANSI/UL10C (Catgory H), CAN4/ULC-S104, ANSI/UL10B, ANSI/UL1784, ANSI/BHMA A156.22
Subtype: Weatherstrip
Temperature Range: Temperature Range -100°F to 500°F, Remains Flexible at Extreme Temperatures
Type: Perimeter Door Seal
