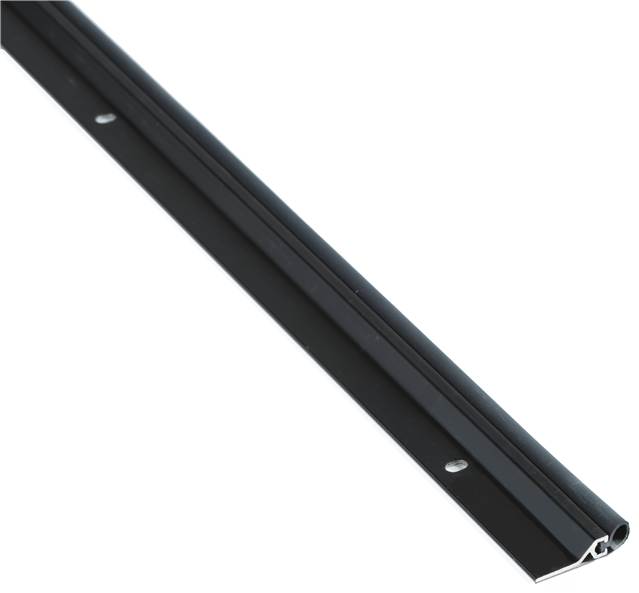

NGP 160SDKB 72" DKB-finish Aluminum Silicone Dense Bulb Perimeter Seal offers a robust solution for high-performance commercial restroom applications. Constructed from durable Aluminum Alloy 6063 with a T5 temper, this perimeter seal is designed to withstand extreme conditions, featuring a temperature range from -100°F to 500°F while maintaining excellent flexibility and memory. The dense silicone bulb, finished in a sophisticated dark bronze, provides superior moisture resistance and is flame-resistant, making it ideal for areas utilizing FM200 or Halon fire suppression systems. This product also excels in environmental resilience, showcasing outstanding resistance to ozone, UV rays, and aging. Included with the seal are #6 x 3/4" stainless steel sheet metal screws, specifically furnished for easy installation, with slotted screw holes to allow for precise adjustments. NGP 160SDKB is BHMA certified to ANSI/BHMA A156.22 standards for heat and cold performance, ensuring it meets rigorous safety and quality requirements. This perimeter seal not only enhances the aesthetic appeal of restroom partitions but also provides essential functionality, making it a reliable choice for building professionals and knowledgeable homeowners alike.
Attributes
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
Application: Excellent Flexibility and Memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Dense Silicone is Black
Fasteners: #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished
Finish: Dark Bronze Finish
Finish Description: Dark Bronze
Fire Rated: Recommended for Areas Using FM200 or Halon Fire Suppression Systems
Length: 72.0"
Material: Synthetic Rubber Polymer: Siloxane
Moisture Resistant: YES
Resistance: Excellent Resistance to Ozone, UV and Aging
Restrictions: Fragile
Series: Gasketing Series
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Subtype: Weatherstripping
Temperature Range: Temperature Range -100°F to 500°F, Remains Flexible at Extreme Temperatures
Type: Weatherization
