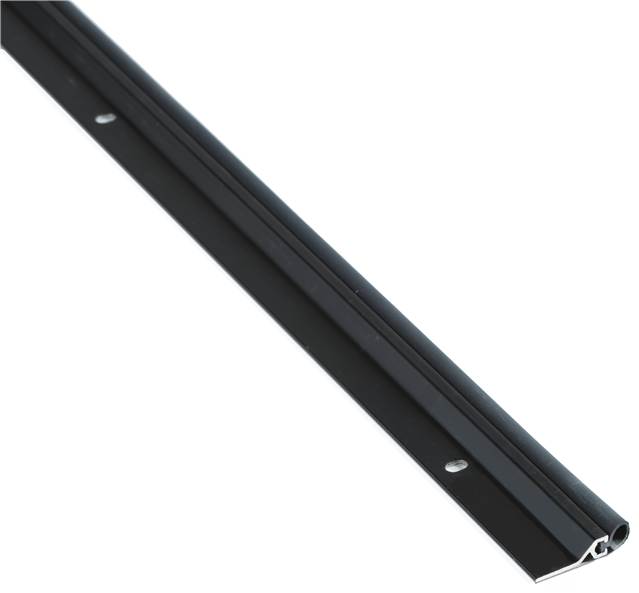

NGP 160SDKB 96" DKB-finish Aluminum Silicone Dense Bulb Perimeter Seal offers exceptional durability and performance for commercial restroom partitions. Crafted from high-quality Aluminum Alloy 6063 with a T5 temper, this seal features a dense silicone made from synthetic rubber polymer (Siloxane), ensuring excellent flexibility and memory even in extreme temperatures ranging from -100°F to 500°F. This perimeter seal is flame-resistant, moisture-resistant, and boasts outstanding resistance to ozone, UV rays, and aging, making it ideal for high-traffic areas. It is particularly recommended for environments utilizing FM200 or Halon fire suppression systems. The product is BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, ensuring reliable performance under varying conditions. The dense silicone is presented in a sleek black color, complemented by a dark bronze finish that adds a touch of professionalism to any restroom design. For easy installation, #6 x 3/4" stainless steel sheet metal screws are furnished, and screw holes are slotted for adjustment. Remember, NGP 160SDKB exceeds standard small package regulations, so consult customer service for shipping details on items measuring 96" or more. Elevate your restroom partitions with this premium perimeter seal that combines style, safety, and functionality.
Attributes
Ship via: No UPS - Common Carrier Only
Restriction message: Due to the large package size of this item, shipping charges will be as follows: 1 to 12 Units: $130.00 13 to 24 Units: $260.00 25 to 36 Units: $390.00
Application: Excellent Flexibility and Memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Dense Silicone is Black
Fasteners: #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished
Finish: Dark Bronze Finish
Finish Description: Dark Bronze
Fire Rated: Recommended for Areas Using FM200 or Halon Fire Suppression Systems
Length: 96.0"
Material: Synthetic Rubber Polymer: Siloxane
Moisture Resistant: YES
Resistance: Excellent Resistance to Ozone, UV and Aging
Restrictions: Largethin
Series: Gasketing Series
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Subtype: Weatherstripping
Temperature Range: Temperature Range -100°F to 500°F, Remains Flexible at Extreme Temperatures
Type: Weatherization
