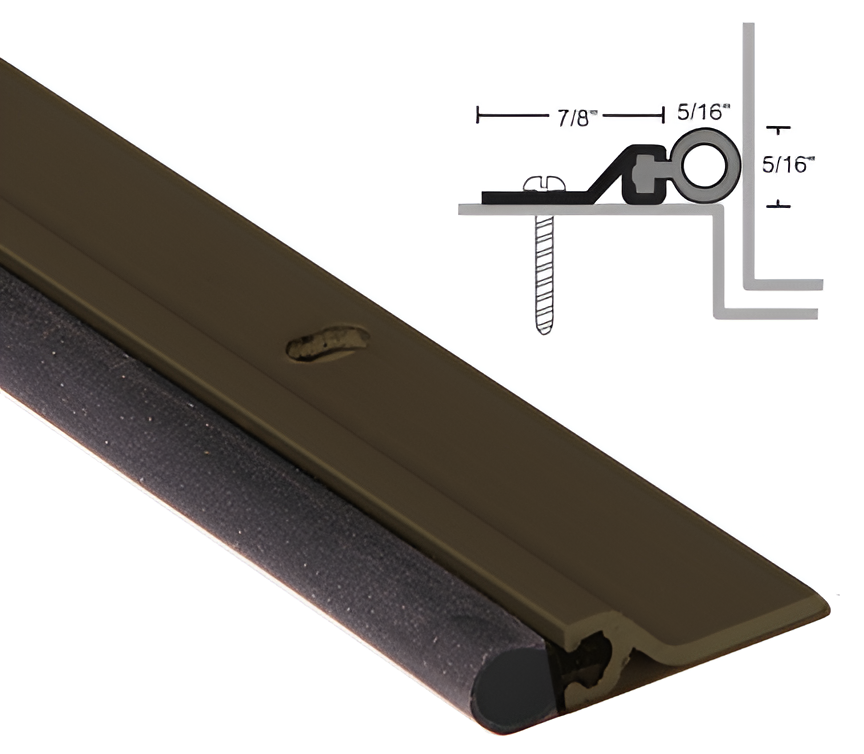

NGP 160SDKB3684 Weatherstrip 36in x 84in x 84in, DKB Dark BronzeNational Guard Products Inc NGP 160SDKB3684 Weatherstrip provides a robust solution for sealing doors, measuring 36 inches wide and 84 inches tall. Constructed from high-quality aluminum alloy 6063 with a T5 temper, this weatherstrip ensures durability and longevity. The synthetic rubber polymer, Siloxane, offers excellent flexibility and memory, making it suitable for various applications. This weatherstrip is designed to withstand extreme conditions, remaining flexible in temperatures ranging from -100°F to 500°F. Its flame and moisture-resistant properties ensure reliable performance in diverse environments, making it ideal for areas utilizing FM200 or Halon fire suppression systems. Furthermore, it boasts exceptional resistance to ozone, UV, and aging, maintaining its integrity over time. The NGP 160SDKB3684 is BHMA certified to ANSI/BHMA A156.22 performance standards, guaranteeing effective heat, cold, air infiltration, and smoke infiltration resistance. Installation is simplified with the inclusion of six 3/4" stainless steel sheet metal screws, featuring slotted screw holes for easy adjustment. With a sleek dark bronze anodized finish, this weatherstrip not only performs well but also enhances the aesthetic appeal of your entryways. Trust in National Guard Products Inc for a reliable, high-performance sealing solution that meets your needs.
Weatherstrip 36in x 84in x 84in, DKB Dark Bronze
Notice: The info below is not item specific.
- Aluminum alloy 6063, T5 temper
- Synthetic rubber polymer: Siloxane
- Excellent flexibility and memory
- Flame resistant
- Moisture resistant
- Temperature range -100°F to 500°F, remains flexible at extreme temperatures
- Excellent resistance to ozone, UV and aging
- Recommended for areas using FM200 or Halon fire suppression systems
- BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
- 6 x 3/4" stainless steel sheet metal screws furnished
- Screw holes slotted for adjustment
- Dense silicone is black
- Options: FATT - Fast attach tape
Features
- Excellent flexibility and memory
- Recommended for areas using FM200 or Halon fire suppression systems
- Options: FATT - Fast attach tape
- Flame resistant
- Dense silicone is black
- Synthetic rubber polymer: Siloxane
- Temperature range -100°F to 500°F, remains flexible at extreme temperatures
- Excellent resistance to ozone, UV and aging
- Screw holes slotted for adjustment
- BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
- 6 x 3/4" stainless steel sheet metal screws furnished
- Moisture resistant
- Aluminum alloy 6063, T5 temper
Attributes
Alternate Codes: 160SDKB3684
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A156.22, ANSI, ASTM E283, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, NFPA 252, NFPA 80, UL 10b, UL 10C, UL 1784
Compatibility: FM200 Fire Suppression Systems, Halon Fire Suppression Systems
Door Application: Thresholds & Seals
Door Height: 84"
Door Width: 36"
Fasteners: #6 x 3/4" SMS
Finish Color: Dark Bronze Anodized
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Height: 5/16"
Manufacturer: National Guard Products
Material: Aluminum Alloy, Synthetic Rubber Polymer
Operating Temperatures: -100 to 500F (-73.33 to 260C)
Series: 160S
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 84" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Weather Rating: Moisture Resistant
Width: 1-3/16"
