NGP 160VA 96" Anodized Aluminum Vinyl Perimeter Seal is the ideal solution for enhancing the durability and efficiency of commercial restroom partitions. Constructed from high-quality Aluminum Alloy 6063 with T5 temper, this perimeter seal combines strength with an elegant anodized finish. The black thermoplastic polymer vinyl is formulated with an environmentally friendly bio-based plasticizer, ensuring both functionality and sustainability. Designed to be economical, the NGP 160VA is flame-resistant and moisture-resistant, making it suitable for a variety of environments. It performs effectively within a temperature range of 0°F to 140°F, providing reliable protection against the elements. The seal is equipped with slotted screw holes for easy adjustments during installation, and it comes with #6 x 3/4" stainless steel sheet metal screws for added convenience. This product is certified by UL to meet stringent fire safety standards, including CAN/ULC-S104 and ANSI/UL10B, making it compatible with hollow metal and wood fire doors. With its robust design and functional attributes, the NGP 160VA perimeter seal is an essential component for any commercial restroom partition project. Ensure longevity and performance with this high-quality seal that stands the test of time.

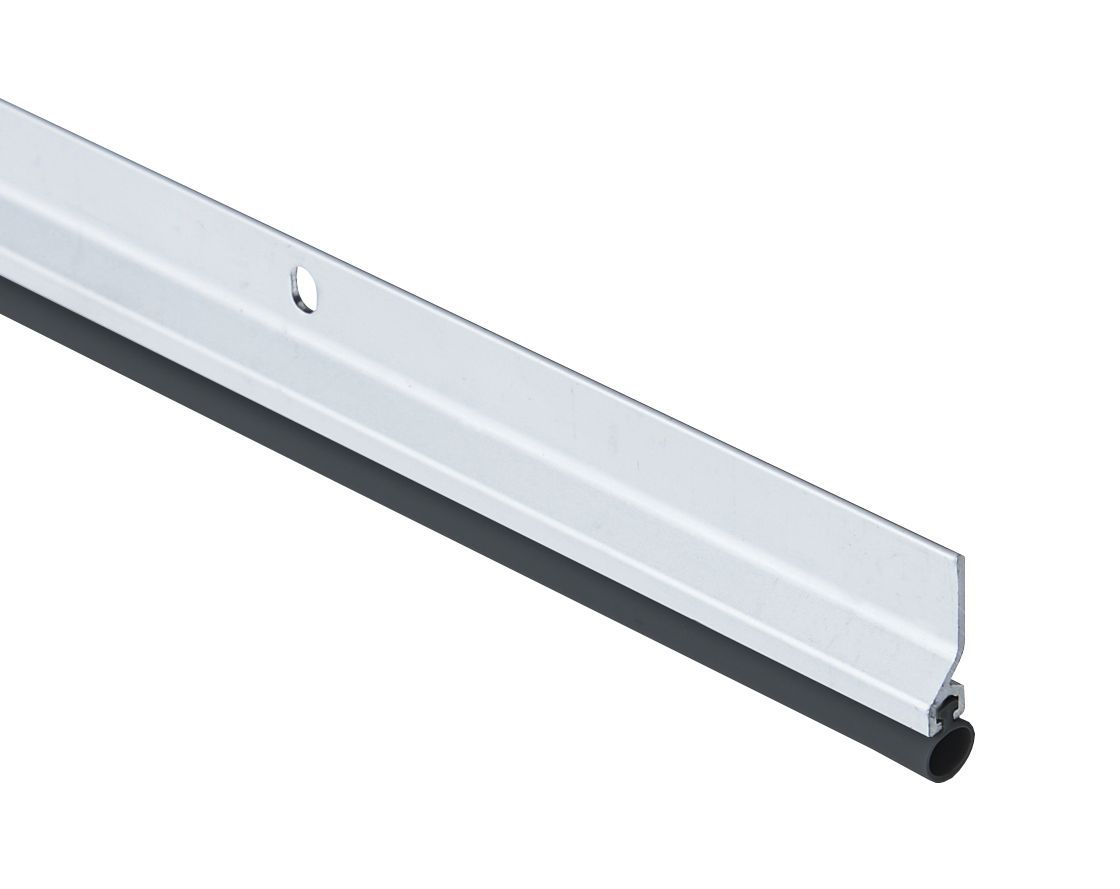

96" Anodized Aluminum Vinyl Perimeter Seal
Ship via: No UPS - Common Carrier Only
Color: Vinyl is Black
Fasteners: #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished
Finish: Anodized Aluminum
Fire Rated: Flame-Resistant
Length: 96.0"
Material: Thermoplastic Polymer: Polyvinyl Chloride Formulated With an Environmentally Friendly Bio-Based Plasticizer
Moisture Resistant: YES
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Temperature Range: Temperature Range 0°F to 140°F
