Pemko 303AV3684 is a 36" x 84" standard perimeter gasketing solution designed to enhance energy efficiency and comfort in any building. Crafted with a mill finish aluminum frame and a durable vinyl insert, this product combines functionality with aesthetics, making it an ideal choice for both commercial and residential applications. The anodized aluminum flanges, measuring 36" in length and 7/8" in width, are 1/4" thick, providing robust support while ensuring a tight seal around doors. The gray vinyl insert not only complements a variety of door styles but also effectively seals gaps, preventing drafts and moisture infiltration. With rigorous testing to meet or exceed industry standards, Pemko products assure reliability and performance. Included with the gasketing is all necessary mounting hardware, simplifying the installation process. The Pemko 303AV3684 also comes with a limited 5-year warranty, underscoring the manufacturer's commitment to quality. As part of a comprehensive line of weatherization solutions, this perimeter gasketing is an essential component to ensure your doors perform optimally while contributing to energy savings. Choose Pemko for proven quality and innovative design in architectural door accessories.

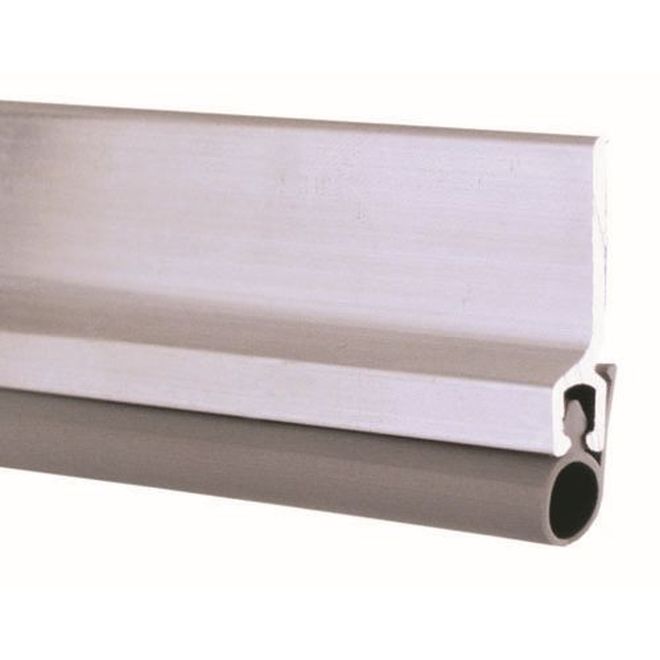

36" (3') x 84" (7') Standard Perimeter Gasketing with Vinyl Mill Finish Aluminum Finish

Since 1952, the Pemko name has been known as a key manufacturer in weatherstripping products. Over the years as an ASSA ABLOY Group brand, we have expanded our product line into a full line of architectural door accessory products to include thresholds, fire/smoke gaskets, door bottoms, perimeter gasketing, brush seals, astragals, continuous geared hinges, fire and life-safety products, lites and louvers, and sliding door hardware. The Pemko product line offers sound-tested, smoke-labeled, fire-labeled, skid resistant, and ADA-compliant products, and aggressively pursues new product development to create solutions for new applications and requirements.

• TYPE: Astragal and Meeting Stile Gasketing Split Astragal
• FINISHES:
• A (Mill Finish Aluminum)
• BDG (Bright Dip Gold Anodized Aluminum)
• D (Dark Bronze Anodized Aluminum)
• G (Gold Anodized Aluminum)
• PW (Painted White Aluminum)
• SN (Satin Nickel Anodized Aluminum)

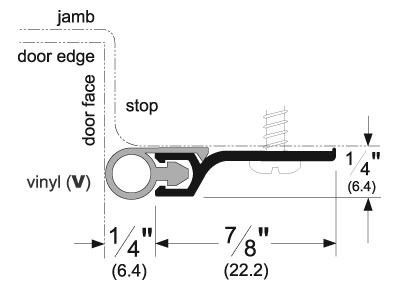

• PROFILE WIDTH: 7/8" (22.2 mm) (x2)
• TOTAL WIDTH WITH INSERT: 1-1/8" (28.6 mm) (x2)
• HEIGHT: 1/4" (6.4 mm)
• Pemko Products Provide an Energy Efficient Door Solution
• Pemko Products Undergo Rigorous Testing to Ensure That They Meet or Exceed the Industry Standards
• Pemko Offers Many Fabrication Options to Fit Specific Job Requirements
• Mounting Hardware Included
• Limited 5 Year Warranty
• Category J gaskets for use with listed steel frames and/or classified steel covered composite, hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.
• Rigid jamb weatherstrip is shown mounted on openings with 1/16" gaps; however, each weatherstrip can seal gaps up to the depth of its seal.
• Seal depth is provided on each illustration.
• Stainless steel fasteners are standard.
• Other fasteners are available.
• Model 303_ is available with self-adhesive, two-sided tape (TST) and tek screws (3 slotted holes per part) for easy installation.
• To obtain this option, add "TST" to the end of the part number when ordering (i.e. 303AS36TST).
• This perimeter gasketing is supplied with a Eco-V® ("V") insert - item number EV47 (available in gray, black, and white).

Ratings

	Underwriters Laboratory 4L10
	GREENGUARD Gold Certified
	Air Infiltration Tested
	Fire Rated - UL10C - Positive Pressure
