NGP 170NA 36" Anodized Aluminum Neoprene Perimeter Seal with Concealed Fastener offers exceptional durability and performance for your commercial restroom needs. Constructed from Aluminum Alloy 6063 with T5 Temper, this seal ensures longevity and resilience. It features a synthetic EPDM rubber in a polypropylene thermoplastic matrix, providing excellent abrasion resistance, tensile strength, and memory. Designed to withstand harsh conditions, the NGP 170NA is flame-resistant and moisture-resistant, with a wide temperature range from -81°F to 275°F. It also boasts good resistance to ozone, sunlight, and aging, making it suitable for various environments. The snap-on cover effectively conceals screw heads, ensuring a clean and polished appearance. This perimeter seal is BHMA certified to ANSI/BHMA A156.22 performance tests, ensuring it meets stringent quality standards. It comes with #6 x 3/4" stainless steel sheet metal screws for secure installation, and the slotted screw holes provide adjustment flexibility. With its sleek black color and anodized aluminum finish, the NGP 170NA is not only functional but also enhances the overall aesthetic of restroom partitions. This product is ideal for building professionals seeking reliable and high-quality hardware solutions.

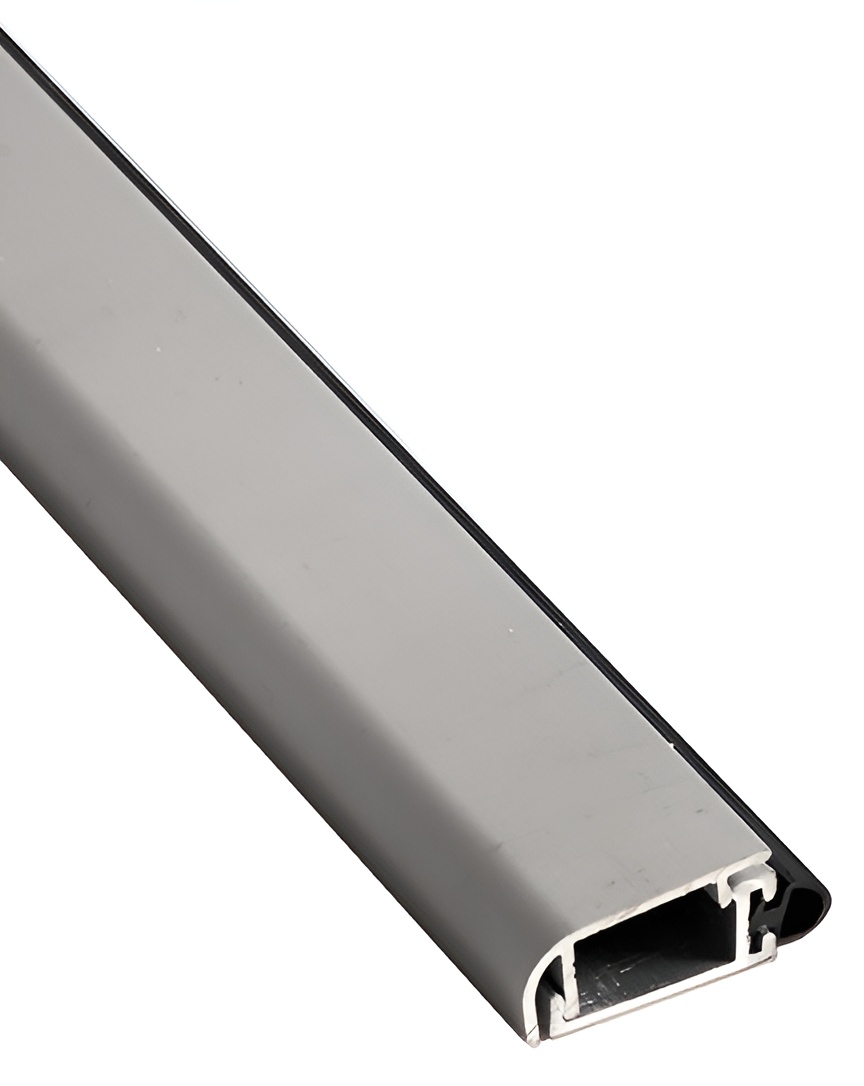

36" Anodized Aluminum Neoprene Perimeter Seal with Concealed Fastener
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is Black
Fasteners: #6 X 3/4" Stainless Steel Sheet Metal Screws Furnished
Finish: Anodized Aluminum
Finish Description: Satin Aluminum Clear Anodized
Fire Rated: Flame-Resistant
Length: 36.0"
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Series: NGP Gasketing
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Subtype: Weatherstrip
Temperature Range: Temperature Range -81°F to 275°F
Type: Hinges and Pivots
