NGP 172VDKB 96" DKB-Aluminum Vinyl Perimeter Seal with Concealed Fastener is designed for superior performance in commercial restroom applications. Constructed from durable Aluminum Alloy 6063 with T5 temper, this perimeter seal ensures longevity and reliability. The innovative thermoplastic polymer, formulated with an environmentally friendly bio-based plasticizer, offers excellent moisture resistance, making it ideal for humid environments. This seal features a sleek black vinyl finish paired with a dark bronze exterior, providing an attractive aesthetic while maintaining functionality. With a flame-resistant rating, it adheres to safety standards, ensuring protection against fire hazards. The temperature range of 0°F to 140°F guarantees its usability in various climates, and the oxidative degradation resistance protects against hardening and discoloration over time. Installation is made easy with #6 x 3/4" stainless steel sheet metal screws, which are included and slotted for adjustment. Certified by UL for fire door applications, this perimeter seal meets stringent NFPA standards, making it suitable for both hollow metal and wood fire doors. Whether for new installations or replacements, the NGP 172VDKB provides an economical solution that balances durability, safety, and style.

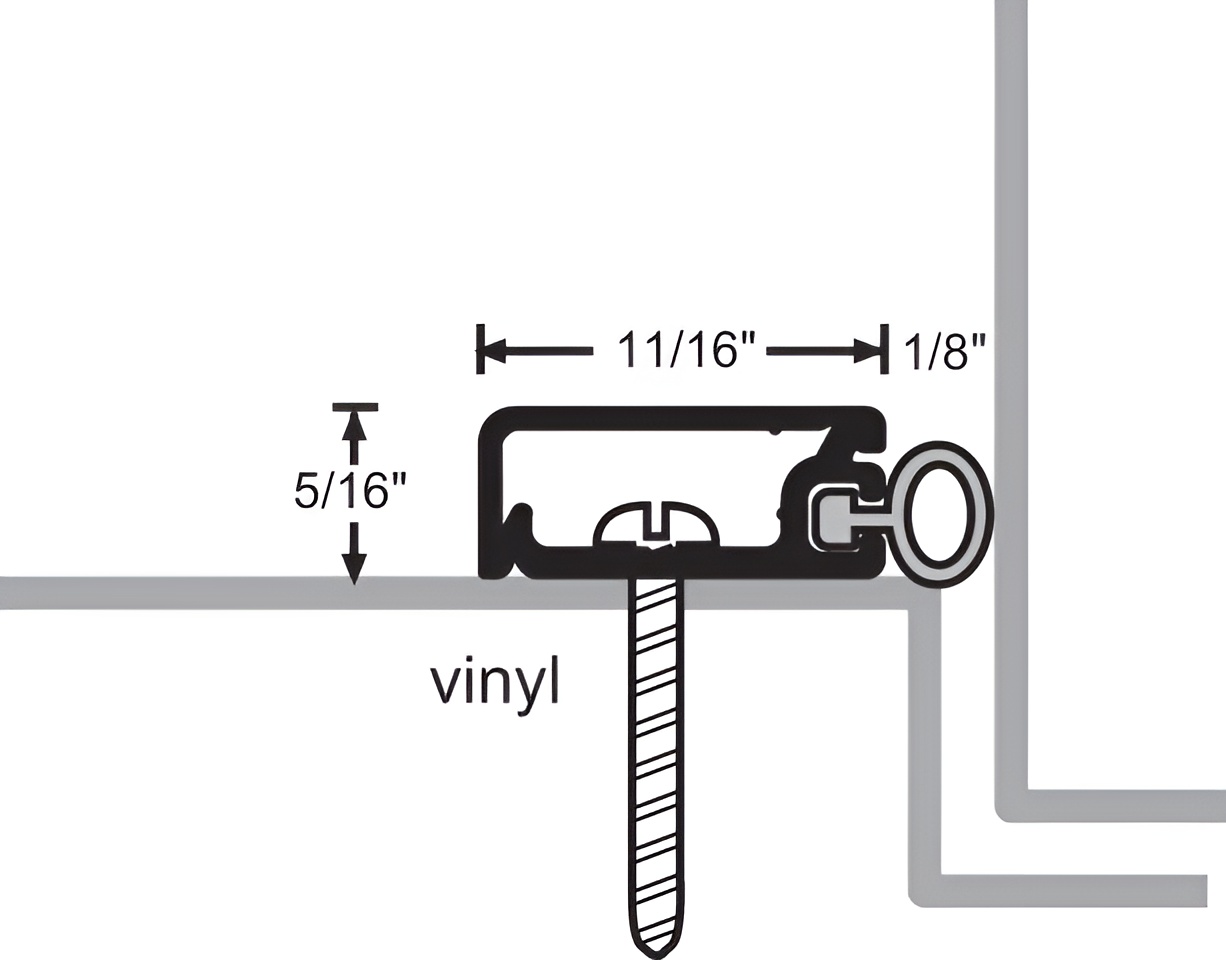

96" DKB-Aluminum Vinyl Perimeter Seal with Concealed Fastener
Ship via: No UPS - Common Carrier Only
Restriction message: Due to the large package size of this item, shipping charges will be as follows: 1 to 12 Units: $130.00 13 to 24 Units: $260.00 25 to 36 Units: $390.00
Color: Vinyl is Black
Fasteners: #6 x 3/4" Stainless Steel Sheet Metal Screws Furnished
Finish: Dark Bronze Finish
Finish Description: Dark Bronze
Fire Rated: Flame-Resistant
Length: 96.0"
Material: Thermoplastic Polymer: Polyvinyl Chloride Formulated With an Environmentally Friendly Bio-Based Plasticizer
Moisture Resistant: YES
Restrictions: Largethin
Series: NGP Gasketing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Subtype: Weatherstrip
Temperature Range: Temperature Range 0°F to 140°F
Type: Hinges and Pivots
