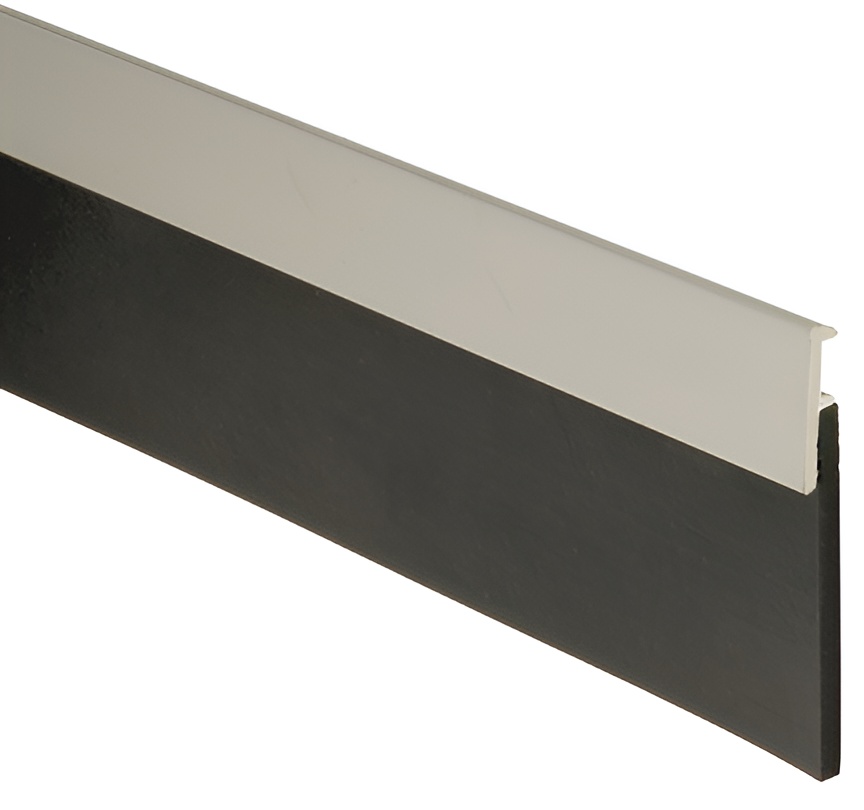

NGP 197NA 48" Anodized Aluminum Neoprene Door Sweep provides a robust solution for maintaining the integrity of commercial restroom environments. Crafted from Aluminum Alloy 6063 in T5 Temper, this door sweep combines durability with a sleek anodized finish. Its innovative synthetic EPDM rubber, integrated into a polypropylene thermoplastic matrix, ensures excellent abrasion resistance, tensile strength, and memory, making it ideal for high-traffic areas. Designed for extreme conditions, the NGP 197NA can withstand temperatures ranging from -81°F to 275°F, exhibiting remarkable resistance to ozone, sunlight, and aging. This flame-resistant product not only meets but exceeds BHMA certification standards, ensuring reliable performance in both heat and cold environments. The door sweep is equipped with slotted screw holes, allowing for easy adjustments during installation. With a length of 48 inches and furnished with #6 x 3/4" stainless steel SMS fasteners, this door sweep is as practical as it is effective. It effectively controls air infiltration and smoke, making it suitable for use on hollow metal or wood fire doors rated up to 90 minutes. Enhance your commercial restroom's functionality and safety with the dependable NGP 197NA door sweep.
48" Anodized Aluminum Neoprene Door Sweep
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is Black
Fasteners: #6 x 3/4" Stainless Steel SMS Furnished
Finish: Anodized Aluminum
Fire Rated: Flame-Resistant
Length: 48.0"
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature Range -81°F to 275°F
