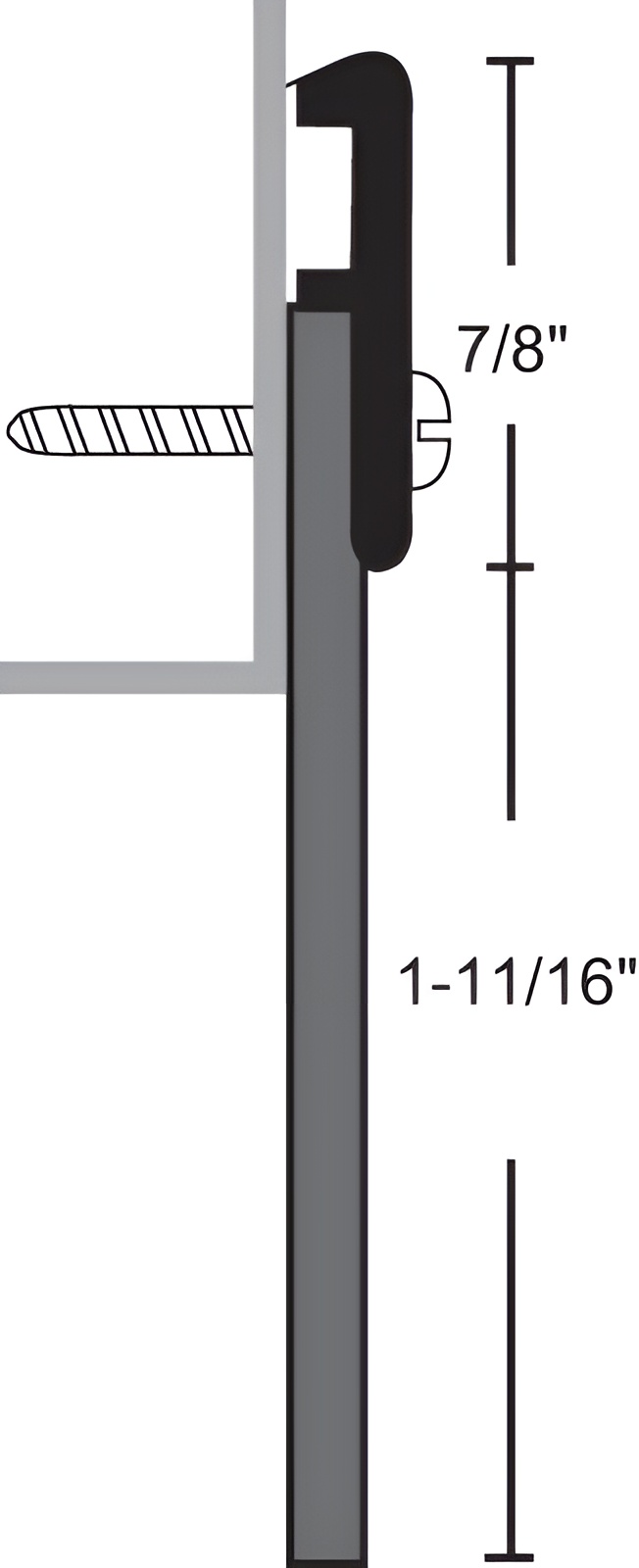

NGP 197NA 72" Anodized Aluminum Neoprene Door Sweep offers a robust solution for maintaining the integrity and efficiency of commercial restroom spaces. Constructed from durable Aluminum Alloy 6063 with T5 temper, this door sweep is designed to withstand a wide temperature range of -81°F to 275°F, ensuring reliability in varying environmental conditions. The innovative synthetic EPDM rubber embedded in a polypropylene thermoplastic matrix provides excellent abrasion resistance and tensile strength, making it ideal for high-traffic areas. Not only is it flame-resistant, but it also boasts moisture resistance and superior durability against ozone, sunlight, and aging. This product is BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, ensuring it meets rigorous industry standards. The NGP 197NA comes in a sleek black finish and includes #6 x 3/4" stainless steel SMS fasteners, with slotted screw holes for easy adjustment during installation. Whether you're upgrading existing partitions or installing new ones, the NGP 197NA door sweep is a reliable choice that combines functionality with long-lasting performance. Ideal for building professionals and discerning homeowners alike, this door sweep enhances both aesthetics and performance in any restroom setting.
Attributes
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is Black
Commercial Residential: Commercial
Fasteners: #6 x 3/4" Stainless Steel SMS Furnished
Finish: Anodized Aluminum
Finish Description: Satin Aluminum Clear Anodized
Finish Family: Matte Silver
Fire Rated: Flame-Resistant
Fire Rating: 3 Hours
Flange Material: Anodized Aluminum
Hardware: #6 x 3/4" Stainless Steel Sheet Metal Screws
Insert Color: Black
Insert Material: Neoprene
Installation: Commercial
Length: 72.0"
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Pack Qty: 1
Resistance: Good Resistance to Ozone, Sunlight and Aging
Restrictions: Fragile
Series: NGP Gasketing
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Standards: BHMA Certified
Subtype: Weatherstrip
Temperature Range: Temperature Range -81°F to 275°F
Type: Neoprene Sweep
Ul Listing: UL10C
Unit of Measure: Each
