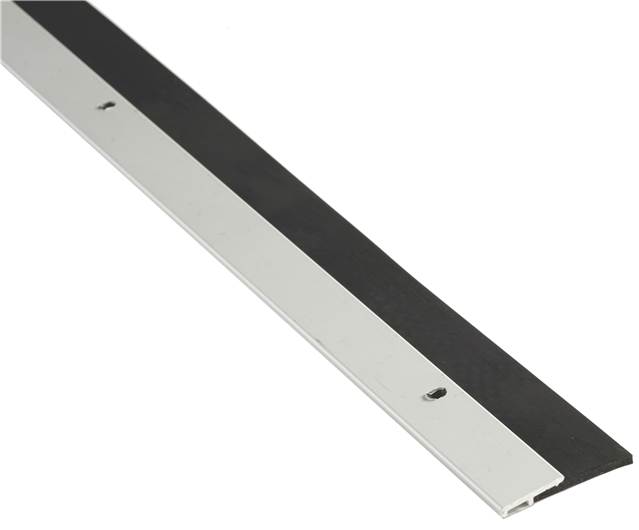

NGP 198NA 48" Anodized Aluminum Neoprene Door Sweep is expertly crafted to enhance the durability and functionality of your commercial restroom partitions. Constructed from high-quality Aluminum Alloy 6063 with T5 Temper, this door sweep is designed to withstand the rigors of daily use. Its synthetic EPDM rubber, encased in a polypropylene thermoplastic matrix, offers exceptional abrasion resistance, tensile strength, and memory, ensuring long-lasting performance. This door sweep not only provides a flame-resistant barrier but also boasts moisture resistance, making it ideal for high-humidity environments. With a temperature range of -81°F to 275°F, it maintains effectiveness under various conditions. The anodized aluminum finish in sleek black provides a clean appearance, while the snap-on cover conceals screw heads for a polished look. NGP 198NA is BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, guaranteeing its reliability. Installation is straightforward, thanks to the included #6 X 3/4" stainless steel sheet metal screws and slotted screw holes for adjustment. This door sweep is a smart choice for building professionals seeking a robust solution for air infiltration control and smoke draft protection in both hollow metal and wood fire doors.
Attributes
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is Black
Fasteners: #6 X 3/4" Stainless Steel Sheet Metal Screws Furnished
Finish: Anodized Aluminum
Finish Description: Satin Aluminum Clear Anodized
Fire Rated: Flame-Resistant
Length: 48.0"
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Restrictions: Fragile
Series: Gasketing Series
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Subtype: Weatherstripping
Temperature Range: Temperature Range -81°F to 275°F
Type: Weatherization
