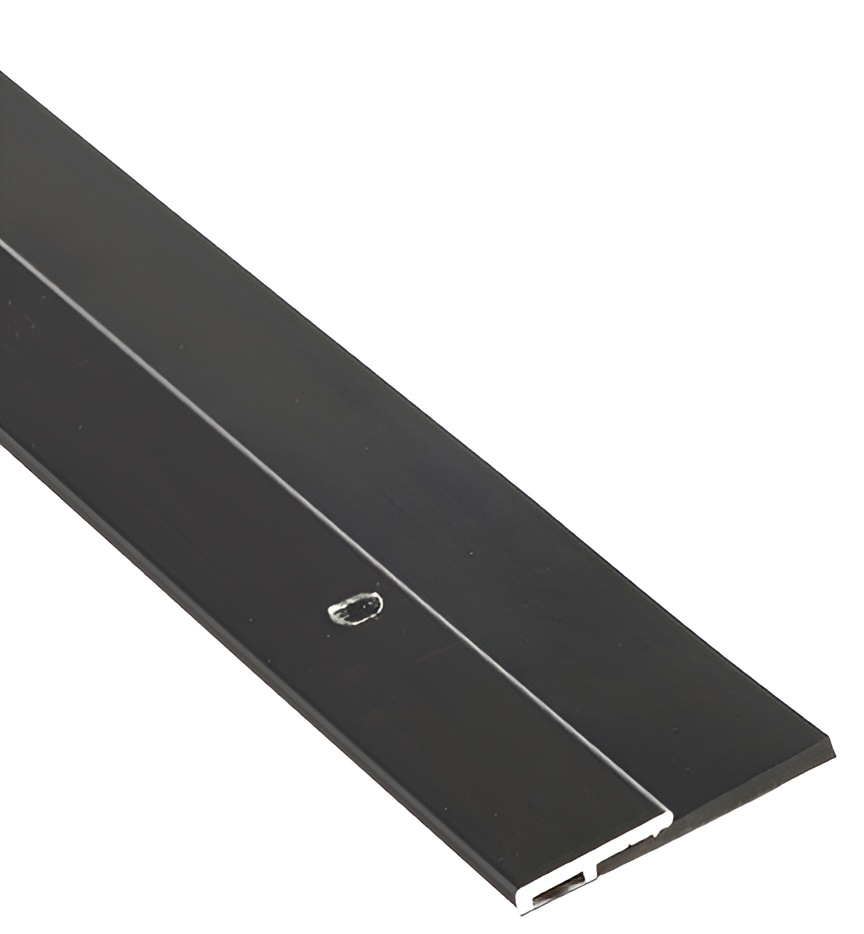

NGP 198NDKB 72" DKB-finish Aluminum Neoprene Door Sweep is engineered for durability and performance in commercial restroom applications. Constructed from Aluminum Alloy 6063 with T5 temper, this door sweep boasts excellent abrasion resistance and tensile strength. The synthetic EPDM rubber embedded in a polypropylene thermoplastic matrix ensures optimal memory and resilience, making it reliable for varied conditions. This sweep is flame-resistant and moisture-resistant, providing essential protection against the elements. With a temperature range from -81°F to 275°F, it remains functional in extreme environments. Additionally, the product offers impressive resistance to ozone, sunlight, and aging, ensuring longevity and consistent performance. The NGP 198NDKB features a sleek dark bronze finish that contributes to a clean aesthetic, while the snap-on cover effectively conceals screw heads for a polished look. It includes #6 x 3/4" stainless steel sheet metal screws, with slotted screw holes for easy adjustment during installation. Certified by BHMA to ANSI/BHMA A156.22 performance standards, this door sweep guarantees reliability and compliance for commercial applications. Elevate your restroom's functionality and appearance with the NGP 198NDKB door sweep, designed to meet the demands of modern facilities.
Attributes
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is Black
Fasteners: #6 X 3/4" Stainless Steel Sheet Metal Screws Furnished
Finish: Dark Bronze Finish
Fire Rated: Flame-Resistant
Length: 72.0"
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature Range -81°F to 275°F
