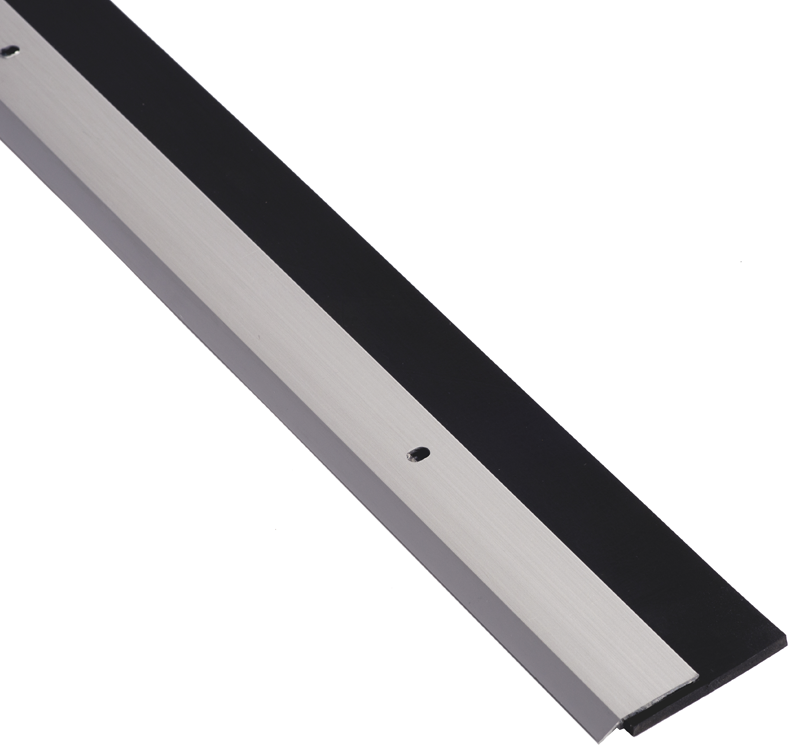

NGP 199NA 36" Anodized Aluminum Neoprene Door Sweep is designed to provide superior protection and performance in commercial restroom applications. Crafted from Aluminum Alloy 6063 with T5 Temper, this door sweep offers remarkable durability and resistance to wear and tear. It features a synthetic EPDM rubber embedded in a polypropylene thermoplastic matrix, ensuring excellent abrasion resistance, tensile strength, and memory. This door sweep is flame-resistant and moisture-resistant, making it suitable for a variety of environments. It can withstand extreme temperatures ranging from -81°F to 275°F, and its resistance to ozone, sunlight, and aging ensures long-lasting functionality. The NGP 199NA is BHMA certified to meet ANSI/BHMA A156.22 performance tests for heat and cold, adding an extra layer of reliability. Installation is straightforward, with slotted screw holes allowing for easy adjustments, and it comes furnished with #6 x 3/4" stainless steel screws. The elegant black color and anodized aluminum finish not only enhance its aesthetic appeal but also contribute to its durability. NGP’s commitment to quality ensures that this door sweep meets rigorous standards for fire safety and air infiltration, making it an ideal choice for your restroom partition hardware needs.
Attributes
Alternate Codes: 199NA 36IN, 199NA36IN
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Color: Color is Black
Fasteners: #6 x 3/4" Stainless Steel SMS Furnished
Finish: Anodized Aluminum
Finish Description: Satin Aluminum Clear Anodized
Fire Rated: Flame-Resistant
Flange Material: Anodized Aluminum
Hardware: #6 x 3/4" Stainless Steel Sheet Metal Screws
Insert Color: Black
Insert Material: neoprene
Length: 36.0"
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Series: NGP Gasketing
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Standards: ANSI/UL10C (Catgory H), CAN4/ULC-S104, ANSI/UL10B, ANSI/UL1784, ANSI/BHMA A156.15
Subtype: Weatherstrip
Temperature Range: Temperature Range -81°F to 275°F
Type: Neoprene Sweep
