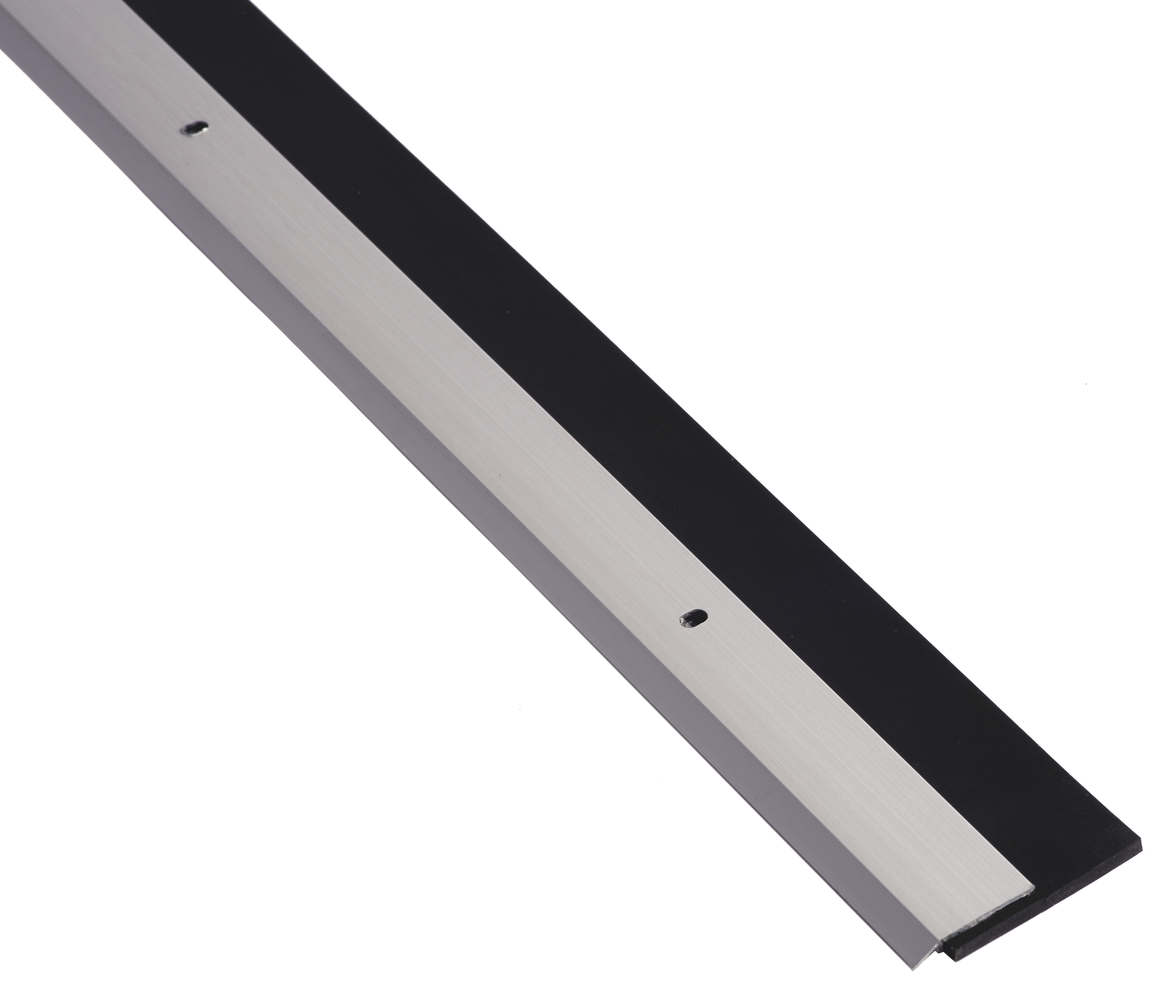

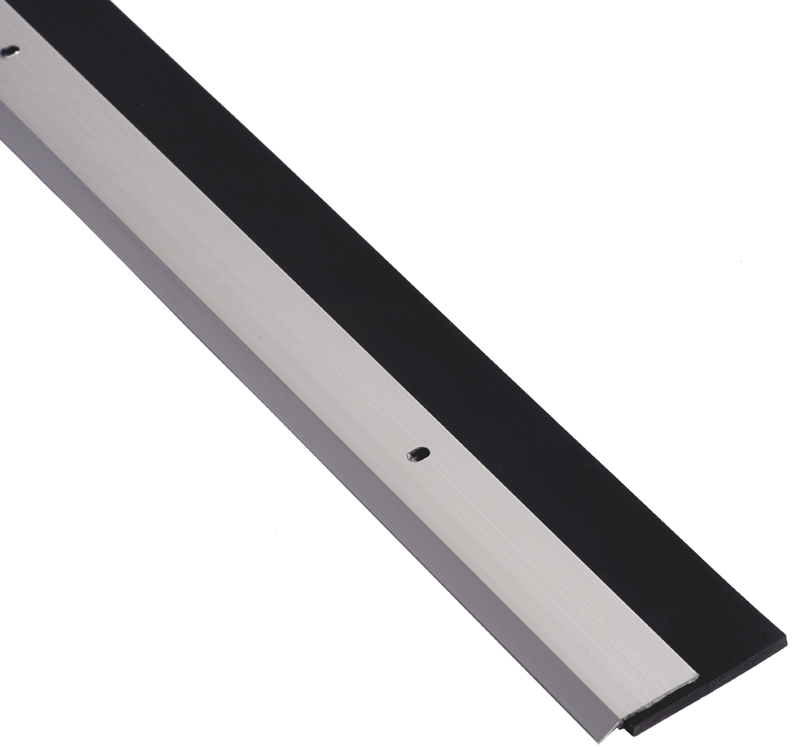

NGP 199NA 48" Anodized Aluminum Neoprene Door Sweep is designed to enhance the performance and durability of your commercial restroom partitions. Constructed from Aluminum Alloy 6063 with T5 temper, this door sweep boasts exceptional strength and resistance to wear, ensuring longevity in high-traffic areas. The synthetic EPDM rubber embedded in a polypropylene thermoplastic matrix provides excellent abrasion resistance, tensile strength, and memory, making it a reliable choice for varying conditions. This door sweep excels in moisture resistance, flame resistance, and can endure temperatures ranging from -81°F to 275°F. Its black anodized aluminum finish not only adds a sleek appearance but also aids in resisting ozone, sunlight, and aging. Installation is made easy with slotted screw holes for adjustment, and it comes with #6 x 3/4" stainless steel screws. Certified by BHMA to ANSI/BHMA A156.22 performance tests, the NGP 199NA effectively controls air infiltration and contributes to smoke and draft control, making it suitable for hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes. Choose the NGP 199NA for a dependable and efficient solution to your door sealing needs.
Attributes
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
Alternate Codes: 199NA 48IN, 199NA48IN
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Color: Color is Black
Fasteners: #6 x 3/4" Stainless Steel SMS Furnished
Finish: Anodized Aluminum
Finish Description: Satin Aluminum Clear Anodized
Fire Rated: Flame-Resistant
Flange Material: Anodized Aluminum
Hardware: #6 x 3/4" Stainless Steel Sheet Metal Screws
Insert Color: Black
Insert Material: neoprene
Length: 48.0"
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Restrictions: Fragile
Series: NGP Gasketing
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Standards: ANSI/UL10C (Catgory H), CAN4/ULC-S104, ANSI/UL10B, ANSI/UL1784, ANSI/BHMA A156.15
Subtype: Weatherstrip
Temperature Range: Temperature Range -81°F to 275°F
Type: Neoprene Sweep
