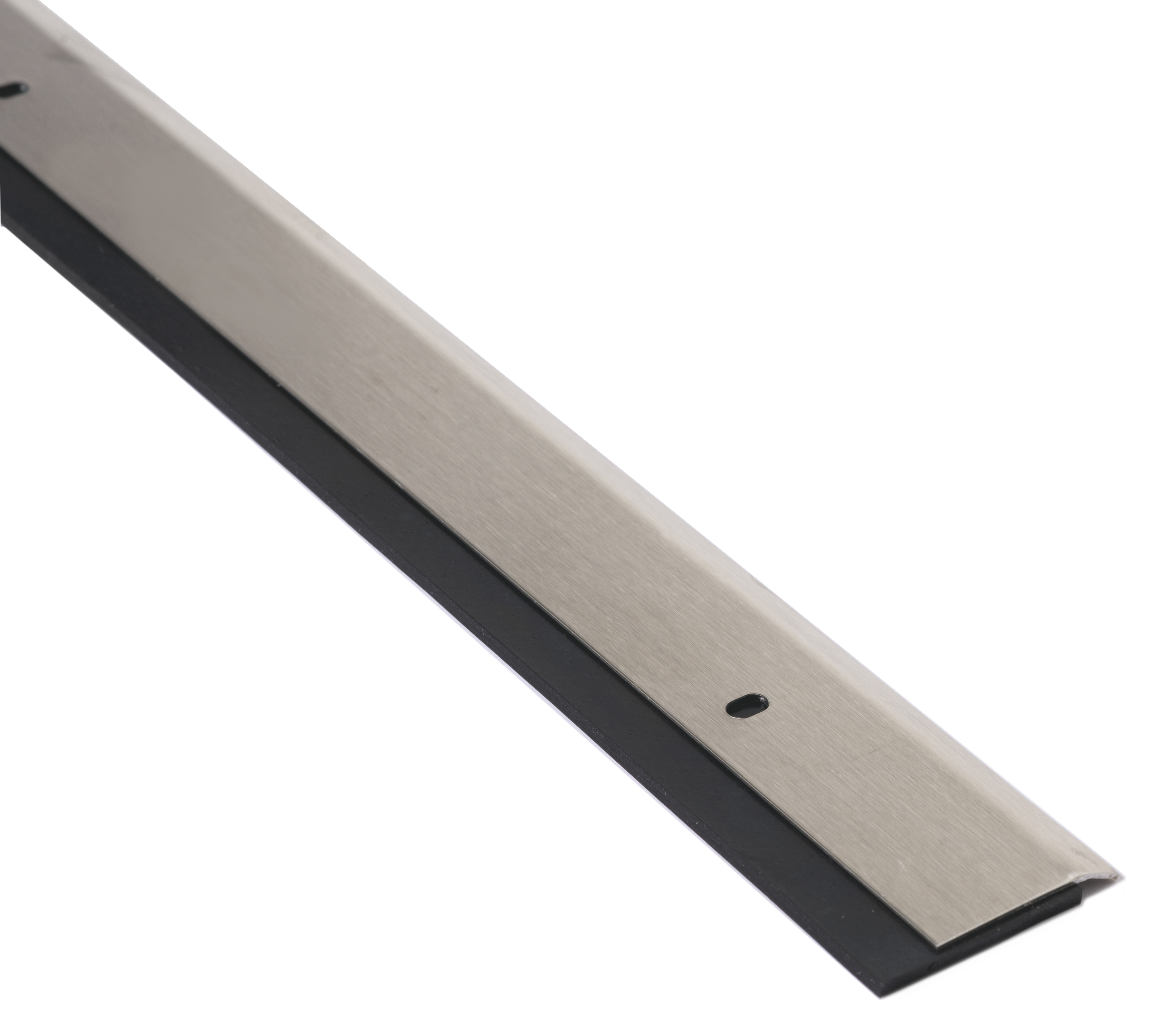

NGP 200NSS 48" Stainless Steel Door Sweep with Neoprene Seal is engineered to provide superior performance and durability for commercial restroom partitions. Constructed from Type 304 stainless steel, this door sweep features a brushed #4 finish (US32D, 630) that not only enhances its aesthetic appeal but also ensures long-lasting resilience against wear and tear. Designed with a synthetic EPDM rubber seal within a closed-cell advanced elastomeric foam matrix, this door sweep offers exceptional moisture resistance and flame resistance, making it a reliable choice for any environment. It withstands a wide temperature range from -81°F to 275°F, ensuring effective sealing in diverse conditions. The NGP 200NSS is BHMA certified to ANSI/BHMA A156.22 performance tests for heat and cold, providing peace of mind regarding its quality and effectiveness. Additionally, it features slotted screw holes for easy adjustment during installation, with #6 x 3/4" stainless steel SMS fasteners included. With good resistance to ozone, sunlight, and aging, this door sweep not only provides functional benefits but also contributes to the longevity of your restroom partitions. Upgrade your space with the NGP 200NSS for a blend of style, safety, and efficiency.
Attributes
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Color is Black
Commercial Residential: Commercial
Fasteners: #6 x 3/4" Stainless Steel SMS Furnished
Finish: Brushed #4 Finish (US32D, 630)
Finish Description: Satin Stainless Steel
Finish Family: Matte Silver
Fire Rated: Flame-Resistant
Fire Rating: 3 Hours
Flange Material: Stainless Steel
Hardware: #6 x 3/4" Stainless Steel Sheet Metal Screws
Insert Color: Black
Insert Material: neoprene
Installation: Commercial
Length: 48.0"
Material: Stainless Steel Type 304
Moisture Resistant: YES
Pack Qty: 1
Resistance: Good Resistance to Ozone, Sunlight and Aging
Restrictions: Fragile
Series: Gasketing Series
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Standards: ANSI/UL10C (Catgory H), CAN4/ULC-S104, ANSI/UL10B, ANSI/UL1784, ANSI/BHMA A156.15
Subtype: Weatherstripping
Temperature Range: Temperature Range -81°F to 275°F
Type: Stainless Steel Neoprene Sweep
Ul Listing: UL10C
Unit of Measure: Each
