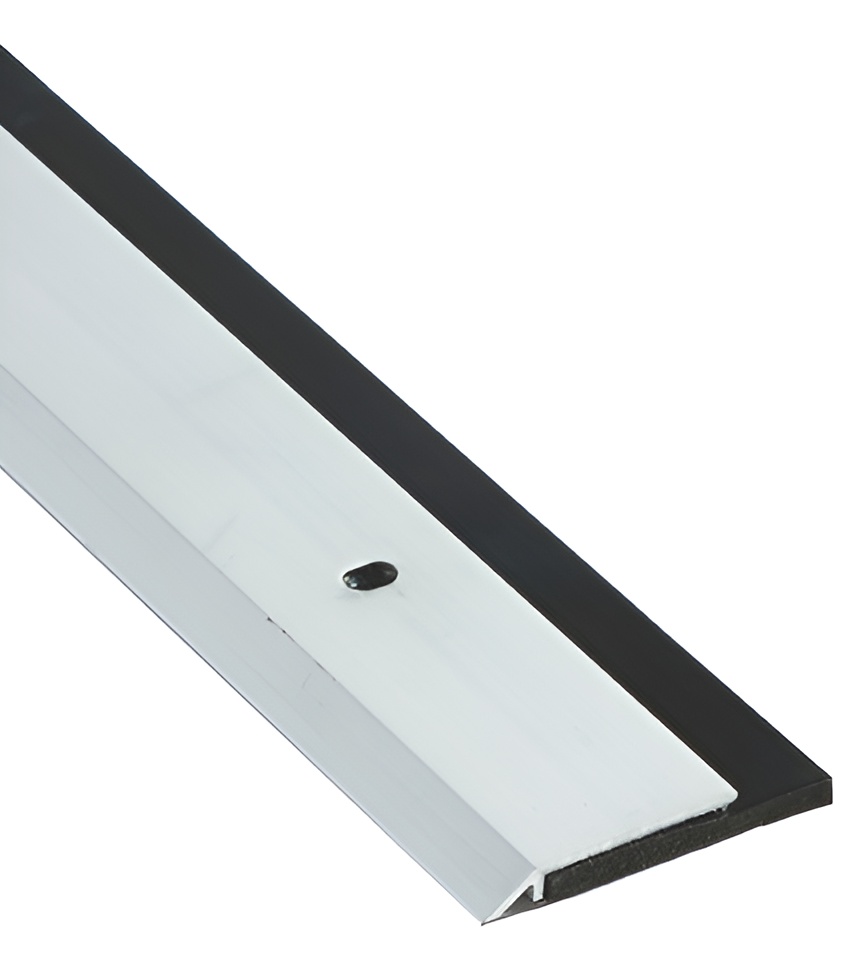

NGP 200SA 36" Anodized Aluminum Silicone Door Sweep offers a durable and versatile solution for commercial restroom partitions. Constructed from aluminum alloy 6063 with T5 temper, this door sweep is designed to withstand the rigors of high-traffic environments. The silicone material, a closed-cell sponge made from synthetic rubber polymer, provides exceptional flexibility and memory, ensuring a secure fit and effective sealing. This door sweep excels in a wide temperature range, from -100°F to 500°F, maintaining its flexibility even in extreme conditions. It is also flame resistant and moisture resistant, making it ideal for areas that utilize FM200 or Halon Fire Suppression Systems. The NGP 200SA is BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold, offering peace of mind in terms of safety and compliance. Installation is straightforward, with #6 x 3/4" stainless steel sheet metal screws included, and slotted screw holes allow for easy adjustments. The sleek anodized aluminum finish not only enhances its aesthetic appeal but also adds to its longevity. With excellent resistance to ozone, UV, and aging, the NGP 200SA Door Sweep is a reliable choice for ensuring comfort and safety in restroom environments.
Attributes
Application: Excellent flexibility and memory
BHMA: BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold
Color: Silicone is black
Fasteners: #6 x 3/4" stainless steel sheet metal screws furnished
Finish: Anodized aluminum
Finish Description: Satin Aluminum Clear Anodized
Fire Rated: Recommended for areas using FM200 or Halon Fire Suppression Systems
Length: 36.0"
Material: Synthetic rubber polymer: Siloxane closed cell sponge
Moisture Resistant: YES
Resistance: Excellent resistance to ozone, UV and aging
Series: NGP Gasketing
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Subtype: Weatherstrip
Temperature Range: Temperature range -100°F to 500°F, remains flexible at extreme temperatures
Type: Hinges and Pivots
