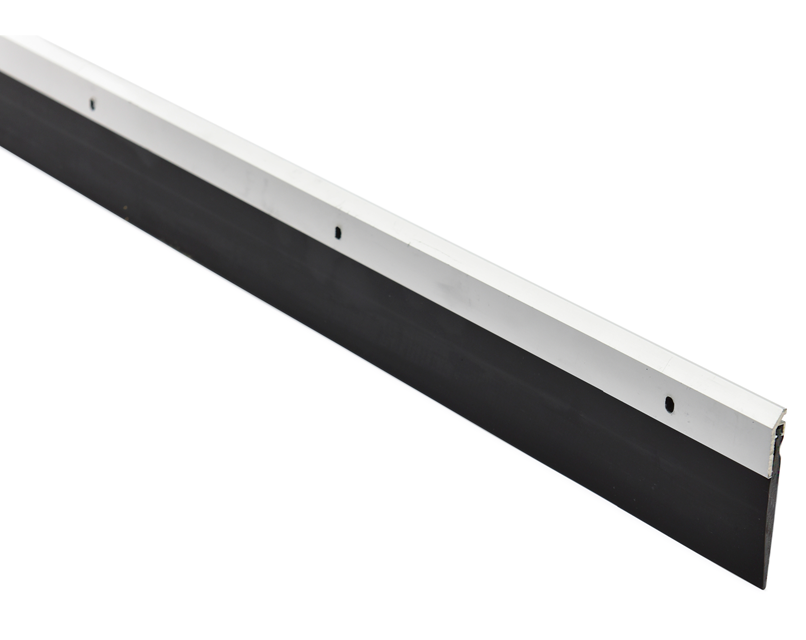

NGP 203NA 36" Anodized Aluminum Neoprene Door Sweep is engineered to provide exceptional protection and performance for commercial restroom applications. Constructed from durable Aluminum Alloy 6063 with T5 temper, this door sweep offers excellent abrasion resistance and tensile strength, ensuring longevity even in high-traffic areas. The synthetic EPDM rubber in a polypropylene thermoplastic matrix enhances moisture resistance while maintaining flexibility across a wide temperature range of -81°F to 275°F. This feature, combined with good resistance to ozone, sunlight, and aging, makes it a reliable choice for various environments. Certified by BHMA to ANSI/BHMA A156.22 performance tests, the NGP 203NA meets rigorous standards for heat and cold, confirming its reliability. The slotted screw holes allow for easy adjustment during installation, and it comes with #6 x 1" stainless steel SMS fasteners for added convenience. Finished in sleek black anodized aluminum, this door sweep seamlessly integrates into any restroom design while effectively minimizing air infiltration, as verified by ASTM E283 testing. Choose the NGP 203NA for a high-quality, resilient solution that enhances both functionality and aesthetics in commercial restroom settings.
Attributes
Alternate Codes: 203NA 36IN, 203NA36IN, NGP203NA36
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Category: Weatherization
Color: Color is Black
Dimension: 36" (3') x 3-1/16"
Fasteners: #6 x 1" Stainless Steel SMS Furnished
Finish: Anodized Aluminum
Finish Code: A
Finish Description: Satin Aluminum Clear Anodized
Fire Rated: 3 Hours
Flange Length: 36"
Flange Material: Anodized Aluminum
Flange Thickness: 3/8"
Flange Width: 1-1/16"
Hardware: #6 x 3/4" Stainless Steel Sheet Metal Screws
Hazardous Material: NO
Insert Color: Black
Insert Material: Neoprene
Insert Size: 36" x 2"
Insert Type: Sweep
Length: 36.0"
Manufacturer Warranty: Limited 5 Year Warranty
Material: Aluminum Alloy 6063, T5 Temper
Moisture Resistant: YES
No Of Inners: 1
Order_ Qty: 1
Resistance: Good Resistance to Ozone, Sunlight and Aging
Series: Gasketing Series
Standard-0: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-1: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Standards: UL Classified UL10C Category H, ANSI/BHMA Certified A156.22
Subcategory: Weatherstripping
Subtype: Weatherstrip
Temperature Range: Temperature Range -81°F to 275°F
Type: Neoprene Sweep
