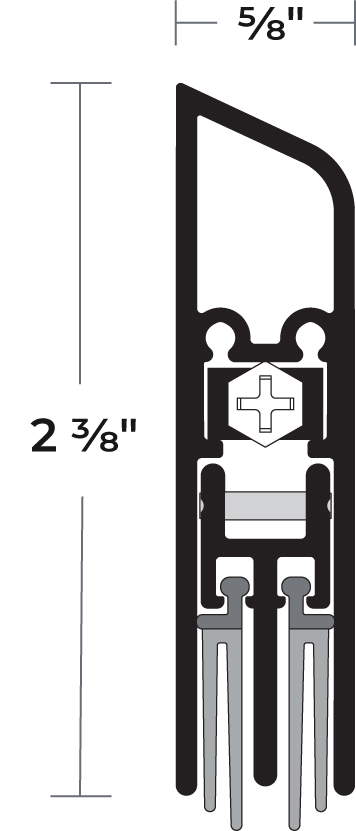

NGP 220SA 36" Anodized Aluminum Automatic Door Bottom with Silicone Seal delivers exceptional performance and durability for commercial restroom applications. This door bottom is BHMA Certified to ANSI/BHMA A156.22, ensuring it can withstand up to 1,000,000 cycles as well as rigorous heat and cold performance tests. Constructed from high-quality Aluminum Alloy 6063 with a T5 temper, the NGP 220SA features a synthetic rubber polymer made from Siloxane closed cell sponge, offering excellent flexibility, memory, and flame resistance. It maintains impressive moisture resistance and can function effectively in extreme temperatures ranging from -100°F to 500°F, remaining flexible even in harsh conditions. Designed for maximum sealing capability, it is recommended to be mounted on the push side of the door with a threshold. For carpet applications where no threshold is provided, a nylon brush is suggested. The door bottom is handed, with right-hand units supplied as standard unless specified otherwise. Ideal for environments utilizing FM200 or Halon fire suppression systems, the NGP 220SA ensures compliance with various fire safety standards, making it a reliable choice for any commercial restroom installation. With a maximum drop of 7/8" and a range of lengths available, this door bottom is tailored to meet specific project requirements effectively.
Attributes
Ansi: A156.22
Application: Nylon Brush Recommended for Carpet Applications Where No Threshold is Provided
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Silicone is Black
Commercial Residential: Commercial
Drop: 7/8" Max Drop
Finish: Anodized Aluminum
Finish Description: Satin Aluminum Clear Anodized
Finish Family: Matte Silver
Fire Rated: Recommended for Areas Using FM200 or Halon Fire Suppression Systems
Fire Rating: 3 Hours
Grade: Grade 1
Handing: Door Bottom is Handed. Right Hand Supplied Unless Specified. Units Under 36" Not Field Reversible. Please Specify Handing
Installation: Commercial
Length: 36"
Material: Synthetic Rubber Polymer: Siloxane Closed Cell Sponge
Moisture Resistant: YES
Pack Qty: 1
Resistance: Excellent Resistance to Ozone, UV and Aging
Series: NGP Gasketing
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.
Standard-4: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-5: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Subtype: Weatherstrip
Temperature Range: Temperature range -100°F to 500°F, Remains Flexible at Extreme Temperatures
Type: Hinges and Pivots
Ul Listing: UL10C
Unit of Measure: Each
