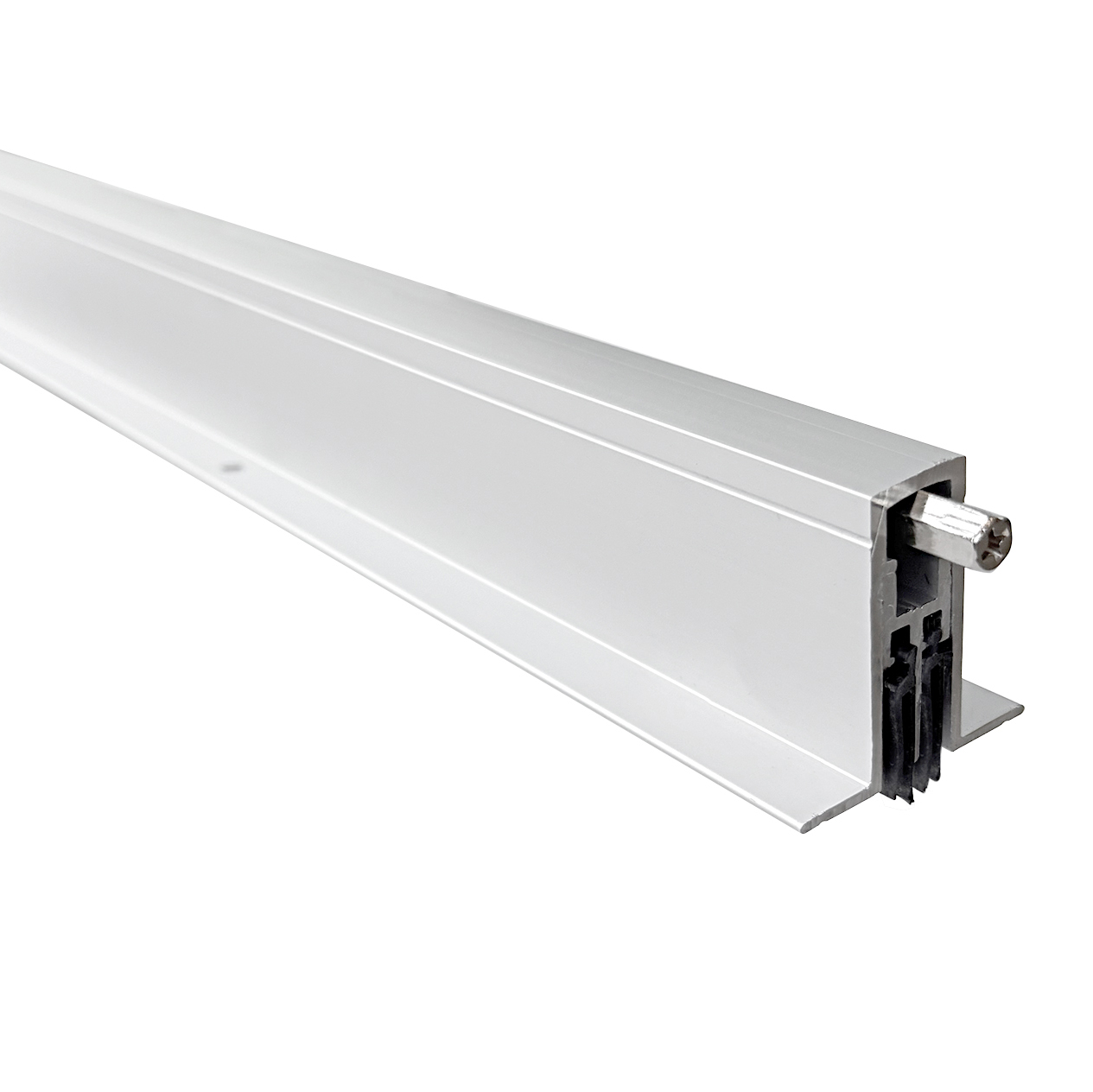

NGP 225NA-60 Anodized Aluminum Mortise Automatic Door Bottom with Neoprene Seal provides an exceptional solution for maintaining privacy and energy efficiency in commercial restroom environments. This product is BHMA certified to ANSI/BHMA A156.22, ensuring it meets rigorous performance standards, including a 1,000,000 cycle test for durability. Constructed from Aluminum Alloy 6063 with T6 temper, the door bottom features a flame-resistant and moisture-resistant neoprene seal, designed to withstand temperatures ranging from -81°F to 275°F. Its excellent abrasion resistance and tensile strength make it ideal for high-traffic areas. The NGP 225NA-60 can be effectively used with a threshold for maximum sealing capabilities, while a nylon brush is recommended for carpet applications where no threshold is present. Available in lengths from 11.5" to 60", this product is furnished 1/2" shorter than ordered to ensure a perfect fit. The automatic drop of 3/4" enhances its sealing performance, while black plastic end caps provide a polished finish. With its combination of robust design and practical features, the NGP 225NA-60 is an essential component for any commercial restroom installation, offering both functionality and reliability.
Anodized Aluminum Mortise Automatic Door Bottom with Neoprene Seal
Application: Nylon Brush Recommended for Carpet Applications Where No Threshold is Provided
BHMA: BHMA Certified to ANSI/BHMA A156.22 Performance Tests for Heat and Cold
Color: Neoprene is Black
Drop: 3/4" Max Drop
Finish: Anodized Aluminum
Fire Rated: Flame-Resistant
Length: Specify Exact Net Length Required to Avoid Field Sizing
Moisture Resistant: YES
Resistance: Good Resistance to Ozone, Sunlight and Aging
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Standard-4: ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Temperature Range: Temperature Range -81°F to 275°F
