NGP 312V 48" Mill Aluminum Finned Vinyl Door Shoe is an essential component for enhancing the durability and efficiency of commercial restroom partitions. Constructed from Aluminum alloy 6063 with a T5 temper, this door shoe is designed for longevity and resilience. Its thermoplastic polymer, made from Polyvinyl Chloride (PVC) with an eco-friendly bio-based plasticizer, ensures it is both economical and environmentally conscious. This door shoe excels in performance, being flame resistant and moisture resistant, making it ideal for high-traffic areas. It operates effectively within a temperature range of 0°F to 140°F, ensuring reliable functionality in various conditions. Additionally, the innovative design includes slotted screw holes for easy adjustment during installation. The black vinyl adds a sleek aesthetic while providing effective sealing against drafts and moisture. Equipped with #6 x 3/4" stainless steel SMS fasteners, it guarantees secure attachment. The NGP 312V is certified by UL for smoke and draft control, ensuring compliance with stringent safety standards. This makes it suitable for use on fire doors rated up to 3 hours, providing peace of mind in critical applications. Upgrade your restroom partitions with the NGP 312V for outstanding quality and performance.
Attributes
Alternate Codes: 312V 48IN, 312V48IN
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: ANSI, ASTM E2235, ASTM E283, ASTM E90, CAN/ULC-S104, IBC International Code 1008.1.3.4, NFPA 105, NFPA 252, NFPA 80, UL 10b, UL 10C, UL 1784
Color: Vinyl is black
Door Application: Thresholds & Seals
Door Width: 48"
Fasteners: #6 x 3/4" stainless steel SMS furnished
Finish Color: Mill Aluminum
Fire Rated: Flame resistant
Fire Rating: 180 min, 90 min

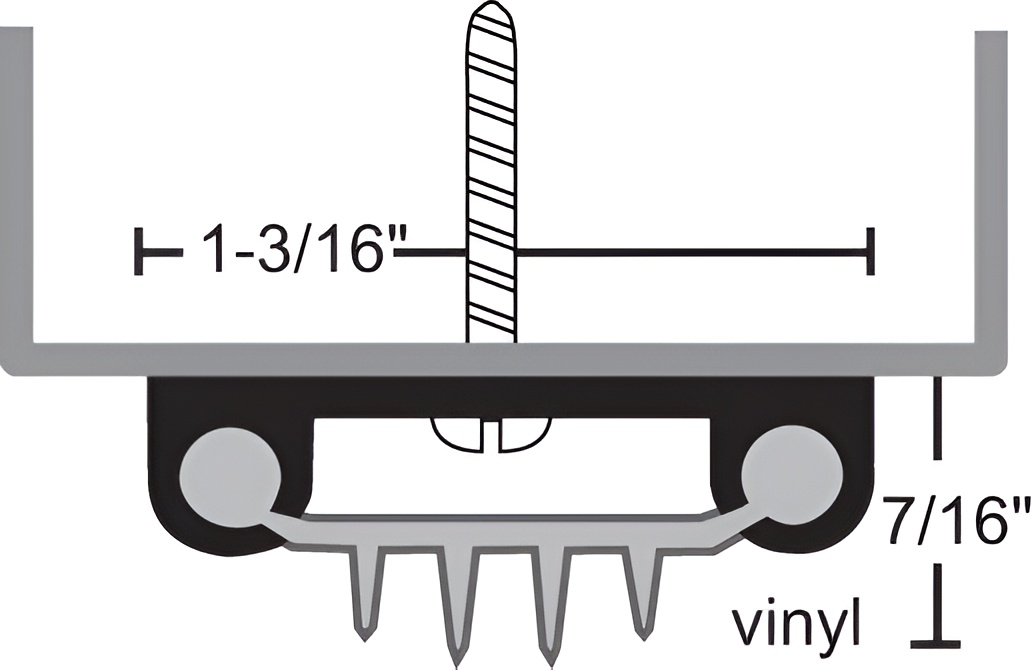

Height: 7/16"
Length: 48.0"
Manufacturer: National Guard Products
Material: Mill aluminum
Moisture Resistant: YES
Operating Temperatures: 0 to 140F (-17.7 to 60C
Series: 312V
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: ACOUSTICAL TESTED to ASTM E90 Standard Test Method for Laboratory Measurement of Airborne Sound Transmission Loss of Building Partitions and Elements, and ASTM E2235 Standard Test Method for Determination of Decay Rates for use in Sound Insulation Test Methods. Refer to information on pages G8 thru G10 of our Gasketing catalog for test result data.
Standard-4: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Temperature Range: Temperature range 0°F to 140°F
Weather Rating: Moisture Resistant
Width: 1-3/16"
