NGP 313VDKB 48" DKB-finish Aluminum Finned Vinyl Door Shoe offers an exceptional combination of durability and functionality for commercial restroom partitions. Constructed from high-quality aluminum alloy 6063 with a T5 temper, this door shoe is designed to withstand the rigors of everyday use. The thermoplastic polymer, made from Polyvinyl Chloride (PVC) with an environmentally friendly bio-based plasticizer, enhances its resilience against moisture and flame, making it a reliable choice for any restroom environment. This model features a sleek dark bronze finish, complemented by a black vinyl insert that effectively seals gaps and prevents drafts. With a temperature range of 0°F to 140°F, it maintains performance in a variety of conditions, ensuring longevity. The design includes slotted screw holes for easy adjustment during installation, and it comes furnished with #6 x 3/4" stainless steel screws for added convenience. Additionally, the NGP 313VDKB is certified for fire safety, adhering to strict standards including UL certifications for both hollow metal and wood fire doors. Its flame resistance and moisture resistance features make it an economical choice for enhancing the overall safety and efficiency of restroom facilities. Upgrade your restroom partitions with this reliable and stylish door shoe.

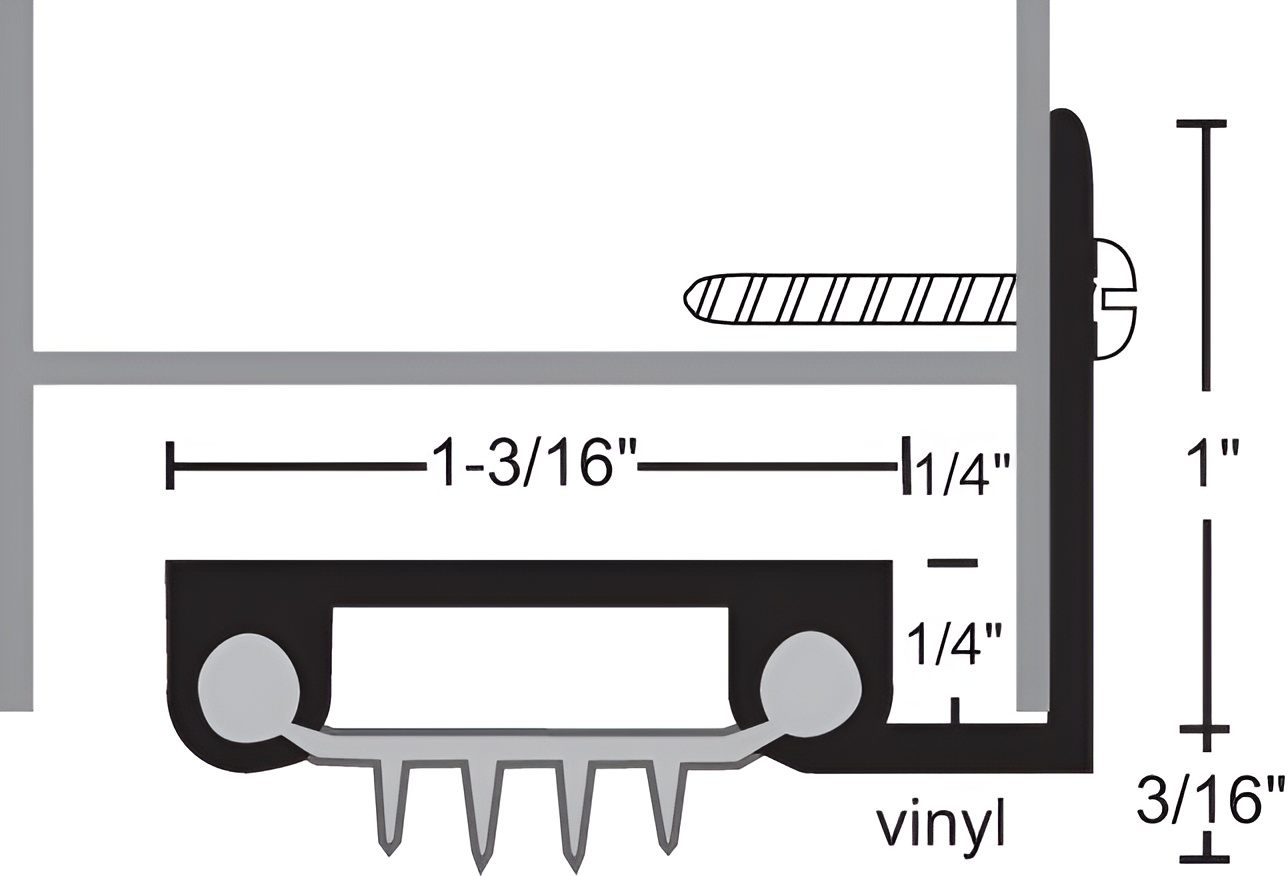

48" DKB-finish Aluminum Finned Vinyl Door Shoe
Color: Vinyl is black
Fasteners: #6 x 3/4" stainless steel SMS furnished
Finish: Dark bronze finish
Fire Rated: Flame resistant
Length: 48.0"
Material: Thermoplastic polymer: Polyvinyl Chloride (PVC) formulated with an environmentally friendly Bio-based plasticizer
Moisture Resistant: YES
Standard-0: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-1: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
Standard-3: SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category ‘H’; complies with IBC and NFPA 105 for use on ‘S’ labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Temperature Range: Temperature range 0°F to 140°F
