NGP 315 36" Mill Aluminum Half Saddle Threshold is a reliable and durable solution for enhancing accessibility and safety in commercial settings. Crafted from high-quality aluminum alloy 6063 with T5 temper, this threshold features a sleek mill finish and a fluted top, providing both functionality and aesthetic appeal. Measuring 3" wide and 1/4" tall, the NGP 315 is designed to meet ADA compliance standards, ensuring barrier-free access in accordance with the ADA Standard for Accessible Design and ICC/ANSI A117.1. It is certified by UL for application on hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes, complying with NFPA 80 and NFPA 252 requirements. The threshold includes #10 x 1-1/2" FH zinc plated wood screws for easy installation. Weighing just .41 lbs./ft. and featuring a typical wall thickness of .125", this product is both lightweight and robust, making it an excellent choice for high-traffic environments. NGP 315 offers a blend of practicality and compliance, ensuring that your facilities are up to code while providing a safe and seamless transition between spaces.
36" Mill Aluminum Half Saddle Threshold, 1/4" x 3"

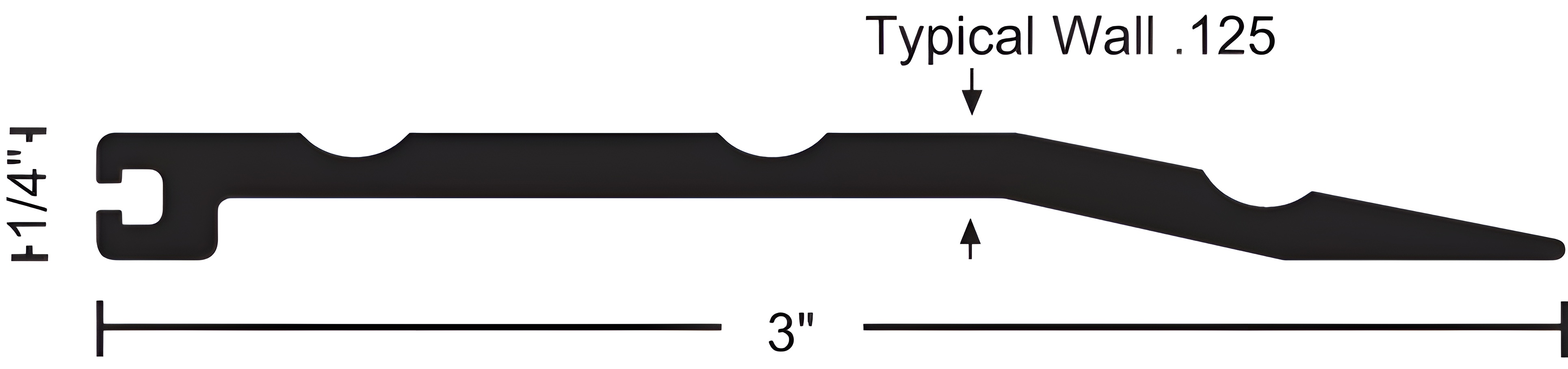

Dimensions: 3" wide x 1/4" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Mill finish
Length: 36.0"
Material: Aluminum alloy 6063, T5 temper
Series: Threshold Series
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Thresholds
Type: Weatherization
Wall Thickness: Typical wall thickness .125"
Weight: Weight: .41 lbs./ft.
