NGP 324 72" Mill Aluminum Half Saddle Threshold combines functionality and durability, making it an essential addition for any commercial restroom project. Crafted from aluminum alloy 6063 with a T5 temper, this threshold measures 4" wide and stands 1/2" tall, featuring a fluted top design that enhances both aesthetics and grip. This product is ADA compliant when installed with the non-beveled edge flush with the flooring or where there is no greater than a 1/4" vertical rise, ensuring accessibility for all users. Weighing only 1.20 lbs./ft., it is lightweight yet robust, suitable for high-traffic areas. The typical wall thickness is .250", providing solid support for stable installation. Included with the threshold are #10 x 1-1/2" FH zinc-plated wood screws, with dark bronze screws supplied for DKB thresholds. The mill finish not only adds to its sleek appearance but also offers resistance against wear. With certifications from UL for fire safety, this threshold is compliant with NFPA 80 and NFPA 252 standards, making it ideal for use with hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes. Enhance your restroom partition system with the reliable performance of the NGP 324 threshold.
Attributes
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
ADA: ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4" vertical rise occurs
Accessible: Yes
Ada Compliance: Yes
Commercial Residential: Commercial

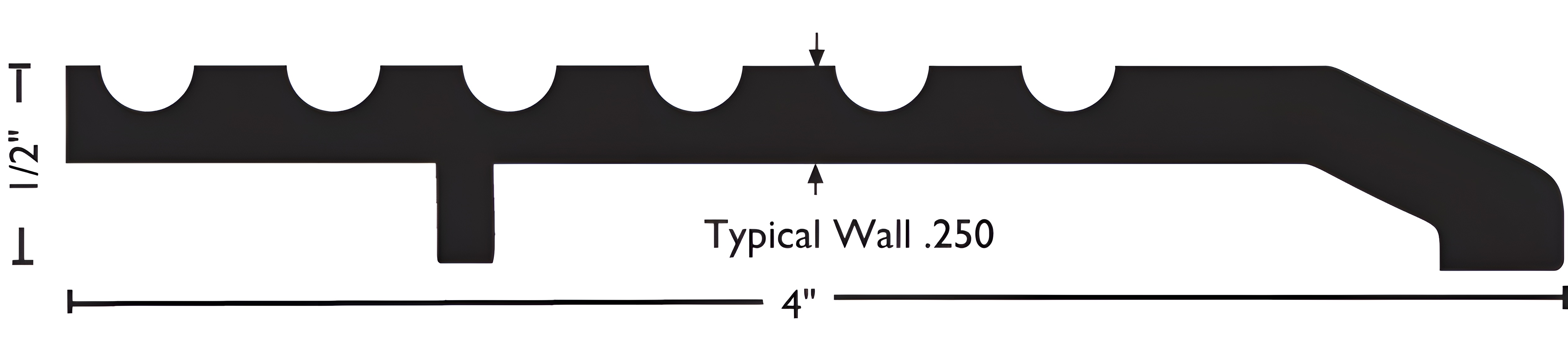

Dimensions: 4" wide x 1/2" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Mill finish
Finish Description: Milled Aluminum
Finish Family: Matte Silver
Fire Rated: 3 Hours
Fire Rating: 3 Hours
Installation: Commercial
Length: 72.0"
Material: Aluminum alloy 6063, T5 temper
Pack Qty: 1
Restrictions: Fragile
Series: NGP Thresholds
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Subtype: Threshold
Type: Hinges and Pivots
Ul Listing: UL10C
Unit of Measure: Each
Wall Thickness: Typical wall thickness .250"
Weight: Weight: 1.20 lbs./ft.
