NGP 327DKB 60" DKB-finish Aluminum Half Saddle Threshold offers a robust and stylish solution for seamless transitions in commercial restroom environments. Constructed from high-quality aluminum alloy 6063 in T5 temper, this threshold measures 4" wide and 1/2" tall, ensuring a reliable barrier while maintaining accessibility. Designed with a fluted top, the NGP 327DKB not only provides visual appeal but also meets ADA compliance when installed correctly. It is ideal for use where there is no greater than a 1/4" vertical rise, facilitating smooth access for all users. The thermal break design enhances energy efficiency, making it suitable for a range of applications. The threshold comes with #10 x 1-1/2" FH zinc-plated wood screws, ensuring sturdy installation. Weighing only .60 lbs./ft., it is lightweight yet durable, with a typical wall thickness of .110". Finished in a sophisticated dark bronze, the NGP 327DKB seamlessly integrates into various decor styles while adding an element of professionalism to your restrooms. Certified by UL for fire door applications, this threshold complies with NFPA standards, providing peace of mind for safety-conscious environments. Enhance your restroom’s functionality and aesthetics with the NGP 327DKB Aluminum Half Saddle Threshold.
60" DKB-finish Aluminum Half Saddle Threshold, 1/2" x 4"
ADA: ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4" vertical rise occurs
Application: Designed for thermal break. Bumper seal not available

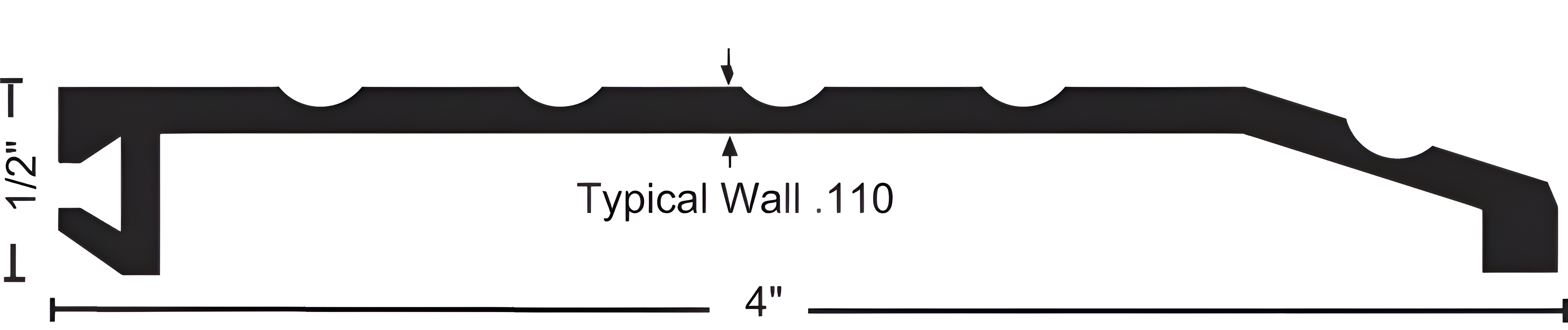

Dimensions: 4" wide x 1/2" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Dark bronze finish
Length: 60.0"
Material: Aluminum alloy 6063, T5 temper
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Wall Thickness: Typical wall thickness .110"
Weight: Weight: .60 lbs./ft.
