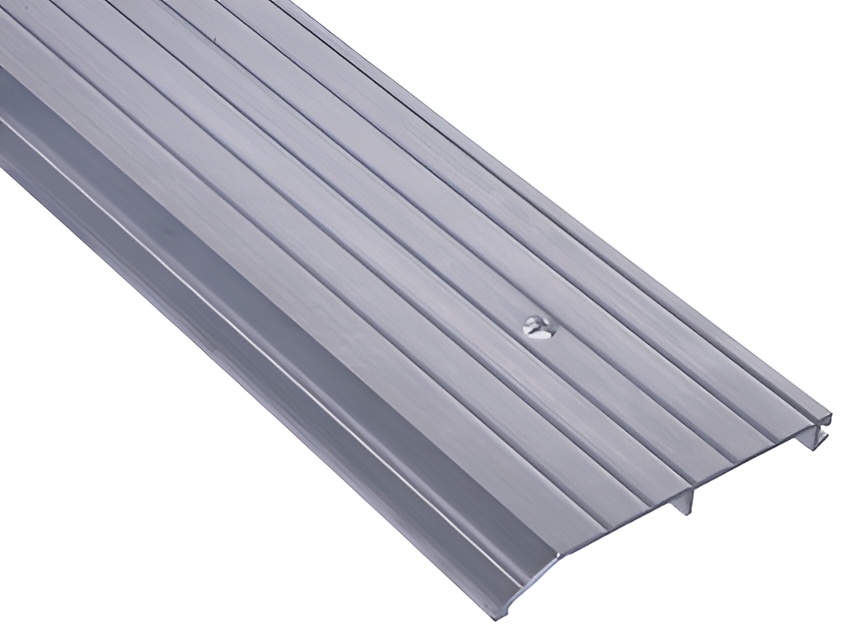

NGP 350 36" Mill Aluminum Half Saddle Threshold is engineered for durability and compliance, making it an ideal choice for commercial restroom applications. Constructed from Aluminum alloy 6063 with a T5 temper, this threshold measures 5" wide and stands 1/2" tall, featuring a fluted top for enhanced aesthetics and functionality. Designed to ensure accessibility, the NGP 350 is ADA compliant when installed with the non-beveled edge flush with the flooring or where a vertical rise does not exceed 1/4". This threshold is also tailored for thermal breaks, though it does not accommodate a bumper seal. Weighing only 0.83 lbs./ft., it is lightweight yet robust, supporting typical wall thicknesses of .110". Included with the threshold are #10 x 1-1/2" FH zinc plated wood screws, ensuring a straightforward installation process. The mill finish provides a clean, industrial look that blends seamlessly with various restroom designs. This product is certified by UL to meet stringent fire safety standards, making it suitable for use with hollow metal and wood fire doors. Invest in the NGP 350 for a reliable, compliant, and visually appealing threshold solution that enhances your commercial restroom environment.
Attributes
ADA: ADA Compliant when installed with the non-beveled edge flush with flooring, or where no greater than 1/4" vertical rise occurs
Application: Designed for thermal break. Bumper seal not available
Dimensions: 5" wide x 1/2" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Mill finish
Finish Description: Milled Aluminum
Fire Rated: 3 Hours
Flange Material: Mill
Hardware: #10 x 1 1/2" FH Zinc Wood Screws
Length: 36.0"
Material: Aluminum alloy 6063, T5 temper
Series: NGP Thresholds
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Standards: ANSI/UL10C, ANSI/BHMA A156.21
Subtype: Threshold
Type: Half-Saddle Threshold
Wall Thickness: Typical wall thickness .110"
Weight: Weight: .83 lbs./ft.
