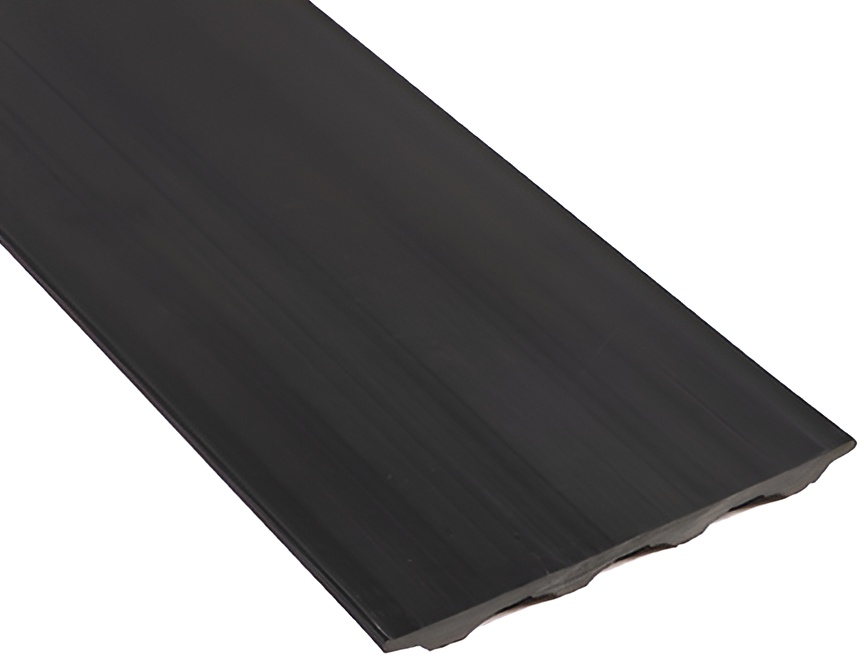

NGP 400 48" Hospitality Vinyl Carpet/Tile Divider Threshold offers a seamless transition from carpet to tile, enhancing both functionality and aesthetics in commercial spaces. Measuring 5-1/2" wide and 11/32" tall, this threshold is designed to provide a smooth surface that meets ADA compliance when installed correctly, ensuring accessibility for all. Crafted from durable black vinyl, the NGP 400 is easy to install with adhesive options such as NGP RR5007BL, a reliable black RTV silicone rubber construction sealant. Each tube of adhesive can bond a substantial length, accommodating various thresholds-4 feet for models 398 or 399, 8 feet for 400 or 401, and more. With a maximum length of 73 inches, this threshold can be tailored to fit diverse installation requirements. In addition to its practical benefits, the NGP 400 is certified by UL to meet stringent fire safety standards, making it suitable for use with hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes. This combination of safety, ease of installation, and compliance with accessibility standards makes the NGP 400 an excellent choice for any hospitality or commercial application.
48" Hospitality Vinyl Carpet/Tile Divider Threshold, 11/32" x 5-1/2"
ADA: ADA Compliant when installed as illustrated between carpet
Application: For transition from carpet to tile
Color: Black vinyl
Dimensions: 5-1/2" wide x 11/32" tall
Finish: Clear Anodized Aluminum
Length: 48.0"
Maximum Length: Maximum length = 73"
Series: Threshold Series
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Subtype: Thresholds
Type: Weatherization
