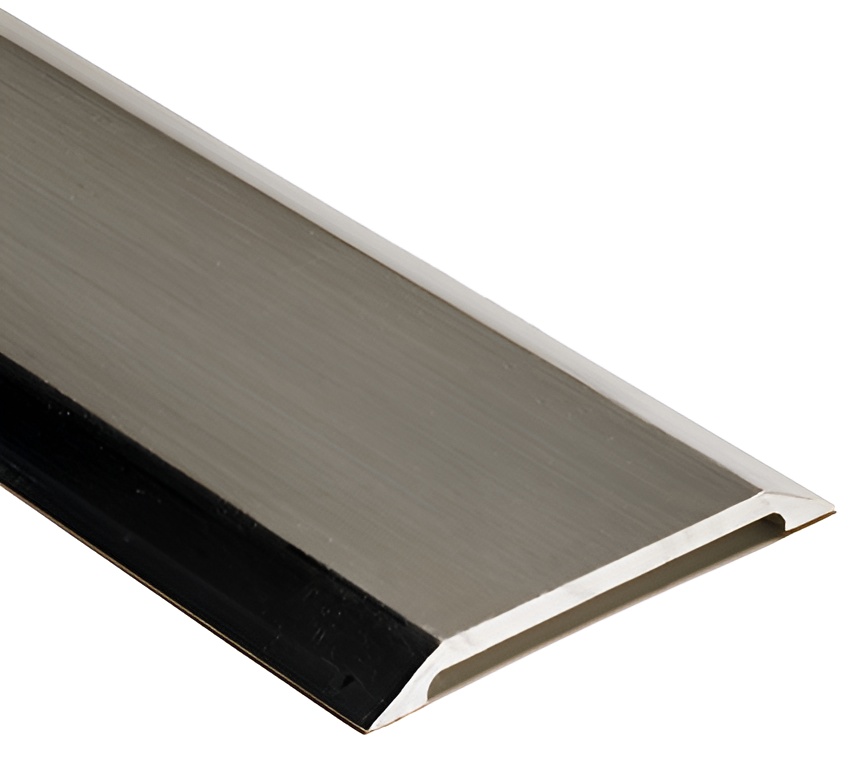

NGP 410 36" Mill Aluminum Smooth Surface Saddle Threshold is expertly crafted from durable aluminum alloy 6063 in T5 temper, ensuring long-lasting performance in commercial restroom applications. With dimensions of 2-1/2" wide and 1/4" tall, this threshold features a smooth top that enhances both aesthetics and functionality. Weighing only .36 lbs. per foot, it is lightweight yet robust enough to withstand a load of up to 1,000 lbs., as certified by the BHMA to ANSI/BHMA A156.21. Designed to provide exceptional results when paired with automatic door bottoms, the NGP 410 threshold is also ADA compliant, meeting the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1. Its mill finish offers a sleek appearance that blends effortlessly into any design scheme. Included with the threshold are #10 x 1-1/2" FH zinc plated wood screws for easy installation. With a typical wall thickness of .125", this threshold is perfect for various building applications, including those requiring fire door compliance. Trust NGP to deliver quality and reliability in your restroom partition hardware needs.
36" Mill Aluminum Smooth Surface Saddle Threshold, 1/4" x 2-1/2"
BHMA: BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test
Dimensions: 2-1/2" wide x 1/4" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Mill finish
Finish Description: Milled Aluminum
Fire Rated: 3 Hours
Flange Material: Mill
Hardware: #10 x 1-1/2" FH Zinc Plated Wood Screws
Length: 36.0"
Material: Aluminum alloy 6063, T5 temper
Series: NGP Thresholds
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Standards: UL Classified UL10C; ANSI/BHMA Certified A156.20
Subtype: Threshold
Type: Saddle Threshold
Wall Thickness: Typical wall thickness .125"
Weight: Weight: .36 lbs./ft.
