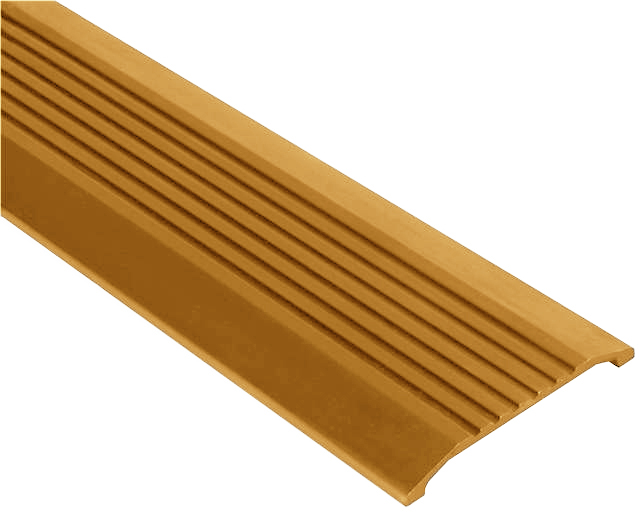

NGP 424BR 48" Architectural Bronze Saddle Threshold is designed to provide both functionality and aesthetic appeal in commercial restroom settings. Constructed from Alloy CDA 385 (Copper Alloy No. C38500), this threshold measures 4 inches in width and stands 1/2 inch tall, making it a robust choice for high-traffic areas. The fluted top adds a stylish touch while enhancing slip resistance, ensuring safety and ease of access. Weighing in at 2.28 lbs per foot, this threshold is both solid and durable. It comes with #10 X 1-1/2" brass wood screws, featuring an antique bronze finish to seamlessly blend with the dark bronze threshold. The architectural bronze satin finish (similar to US4) not only enhances the visual appeal but also aligns with modern design standards. Importantly, the NGP 424BR is ADA compliant, meeting the requirements for accessible design as outlined by the ICC/ANSI A117.1. Furthermore, it is certified by UL for fire door applications, complying with NFPA 80 and NFPA 252 for both hollow metal and wood doors, providing peace of mind in safety and compliance. This threshold is an excellent addition for those seeking quality and reliability in their restroom facilities.
48" Architectural Bronze Saddle Threshold, 1/2" x 4"
Dimensions: 4" width x 1/2" tall
Finish: Architectural Bronze satin finish (728) similar to US4
Flange Material: Bronze
Hardware: #10 x 1-1/2" Solid Brass Wood Screws
Length: 48.0"
Material: Alloy CDA 385 (Copper Alloy No. C38500)
Series: Threshold Series
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standards: ADA, UL Classified UL10C
Subtype: Thresholds
Type: Bronze Saddle Threshold
Wall Thickness: Typical wall thickness .187"
Weight: Weight: 2.28 lbs./ft.
