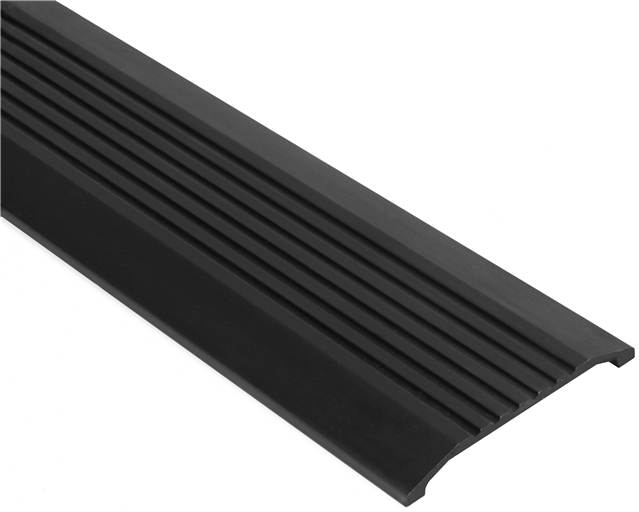

NGP 424DKB 36" DKB-finish Aluminum Saddle Threshold combines durability and aesthetic appeal to enhance your commercial restroom spaces. Constructed from high-quality aluminum alloy 6063 with a T5 temper, this threshold measures 4" wide and stands 1/2" tall, ensuring a robust barrier that is both functional and stylish. The dark bronze/black anodized finish adds a contemporary touch while also providing excellent resistance to wear. Weighing just .61 lbs. per foot, the NGP 424DKB is lightweight yet sturdy, featuring a fluted top that promotes slip resistance. With a typical wall thickness of .125", this threshold meets the rigorous standards of ADA compliance, making it a perfect choice for accessible designs. Included with the threshold are #10 x 1-1/2" FH zinc-plated wood screws, ensuring a secure installation. Furthermore, it is certified by UL to comply with various fire safety standards, making it suitable for use with both hollow metal and wood fire doors rated up to 3 hours and 90 minutes, respectively. Upgrade your restroom partitions with the NGP 424DKB threshold, where quality meets compliance and style.
Attributes
Alternate Codes: 424DKB 36IN, 424DKB36IN
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, ADA, ANSI, CAN/ULC-S104, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Dimensions: 4" wide x 1/2" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: DKB Aluminum Dark Bronze/Black Anodized
Finish Color: Dark Bronze
Finish Description: Dark Bronze
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Height: 1/2"
Length: 36.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Series: 424
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Subtype: Thresholds
Type: Weatherization
Wall Thickness: Typical wall thickness .125"
Weight: Weight: .61 lbs./ft.
Width: 4"
