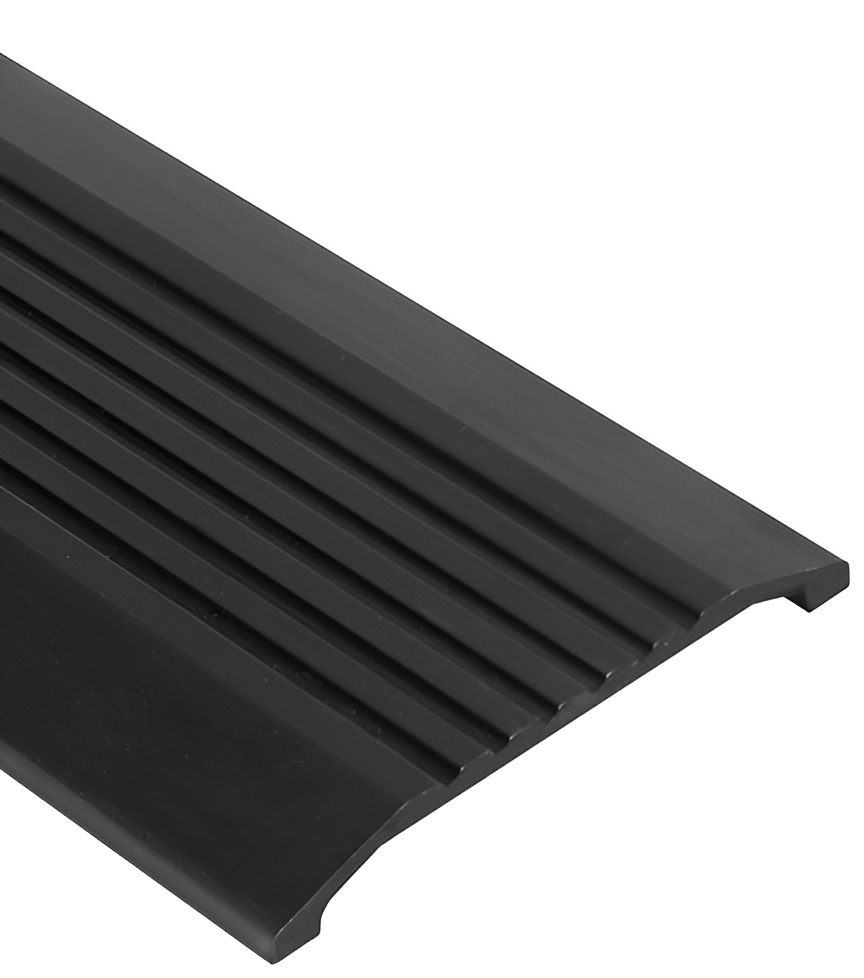

NGP 424DKB 72" DKB-finish Aluminum Saddle Threshold is designed for durability and accessibility in commercial restroom environments. Constructed from high-quality aluminum alloy 6063 with a T5 temper, this threshold features a robust design that measures 4" wide and stands 1/2" tall, ensuring a seamless transition between spaces. The fluted top adds both aesthetic appeal and functionality, offering slip resistance for safe passage. Weighing just .61 lbs./ft., this threshold is lightweight yet sturdy, making installation straightforward. Each unit comes with #10 x 1-1/2" FH zinc plated wood screws, ensuring you have everything needed for a secure fit. The dark bronze/black anodized DKB finish not only enhances the overall look but also provides excellent corrosion resistance. This threshold meets ADA compliance standards, making it an ideal choice for accessible design in public facilities. Additionally, it has been certified by UL for use with hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes, meeting NFPA 80 and NFPA 252 standards. With a typical wall thickness of .125", the NGP 424DKB threshold combines strength and style, perfect for any commercial restroom application.
Attributes
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
Alternate Codes: 424DKB 72IN, 424DKB72IN
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, ADA, ANSI, CAN/ULC-S104, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Dimensions: 4" wide x 1/2" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: DKB Aluminum Dark Bronze/Black Anodized
Finish Color: Dark Bronze
Finish Description: Dark Bronze
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Height: 1/2"
Length: 72.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Restrictions: Fragile
Series: 424
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Subtype: Threshold
Type: Hinges and Pivots
Wall Thickness: Typical wall thickness .125"
Weight: Weight: .61 lbs./ft.
Width: 4"
