NGP 424E 36" Mill Aluminum Saddle Threshold offers a robust solution for enhancing accessibility and safety in commercial restroom environments. Crafted from high-quality aluminum alloy 6063 with a T5 temper, this threshold combines durability and practicality. Measuring 4" wide and 1/2" tall, it features a fluted top that not only adds to its aesthetic appeal but also provides a slip-resistant surface, ensuring user safety. With a typical wall thickness of .120" and a lightweight design at just .65 lbs./ft., this threshold is easy to handle and install. NGP includes #10 x 1-1/2" FH zinc-plated wood screws for a hassle-free installation process. The mill finish allows for versatility in design, seamlessly blending with various restroom decor. This threshold is ADA compliant, meeting the requirements for accessible design, ensuring that facilities are welcoming to all users. Additionally, it is certified by UL to various fire safety standards, making it suitable for use with hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes. For building professionals seeking reliable and compliant restroom partition hardware, the NGP 424E threshold is an excellent choice.

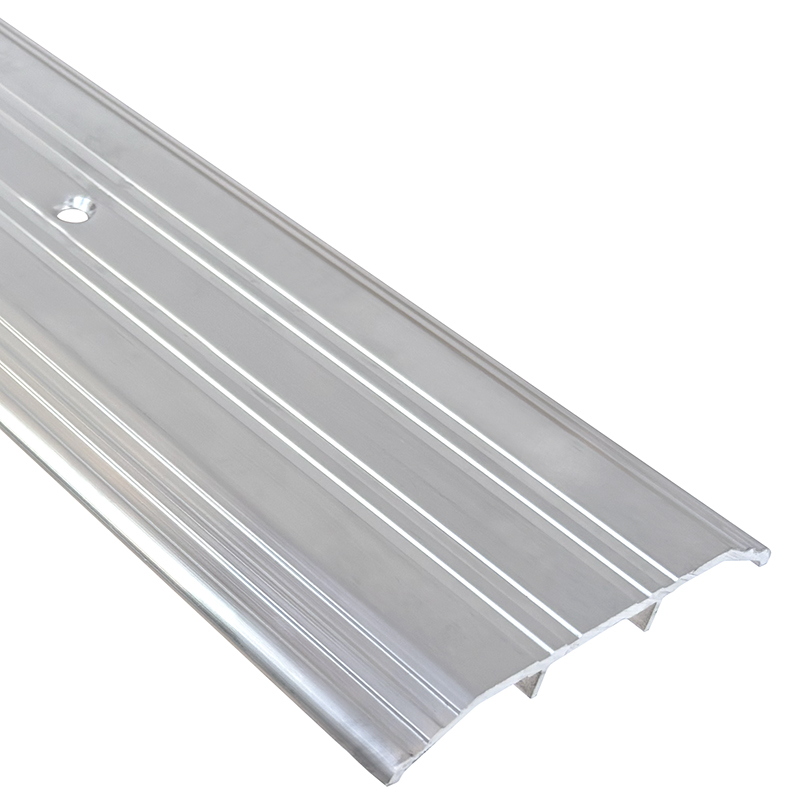

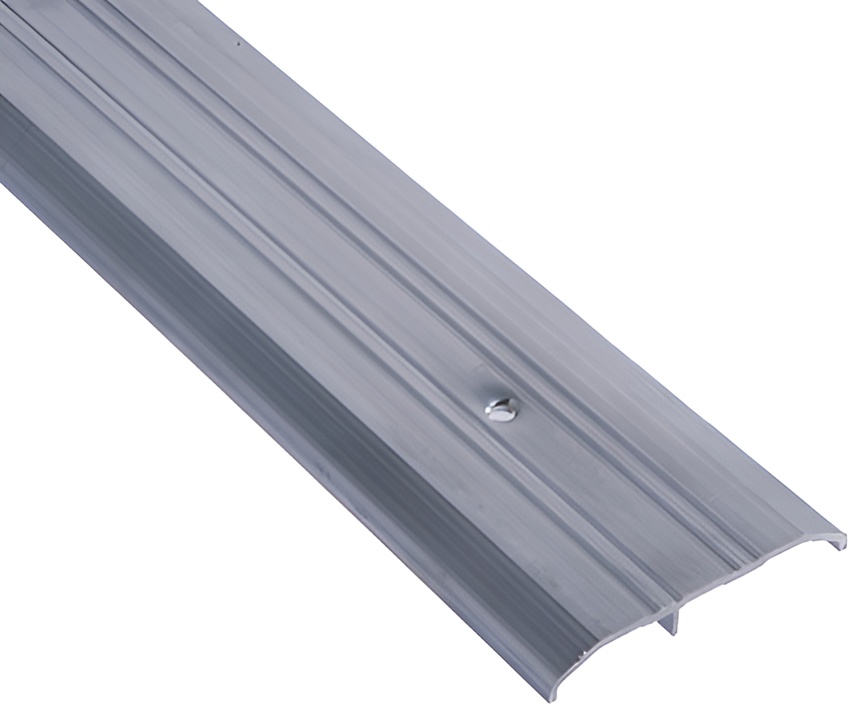

36" Mill Aluminum Saddle Threshold, 1/2" x 4"
Dimensions: 4" wide x 1/2" tall
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Mill finish
Finish Description: Milled Aluminum
Fire Rated: 3 Hours
Flange Material: Mill
Hardware: #10 x 1 1/2" FH Zinc Wood Screws
Length: 36.0"
Material: Aluminum alloy 6063, T5 temper
Series: NGP Thresholds
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Standards: ANSI/UL10C, ANSI/BHMA A156.21
Subtype: Threshold
Type: Saddle Threshold
Wall Thickness: Typical wall thickness .120"
Weight: Weight: .65 lbs./ft.
