NGP 425BR 48" Architectural Bronze Saddle Threshold is designed to enhance the accessibility and durability of commercial restroom entrances. Crafted from Alloy CDA 385, this threshold measures 5" in width and stands 1/2" tall, offering a robust solution for seamless transitions between spaces. The fluted top not only adds an aesthetic touch but also provides excellent grip for foot traffic. This threshold is ADA compliant, ensuring that it meets the stringent requirements of the ADA Standard for Accessible Design, making it a perfect choice for facilities focused on inclusivity. Additionally, it is certified by UL to comply with various fire safety standards, including NFPA 80 and NFPA 252, allowing it to be used with Hollow Metal fire doors rated up to 3 hours and Wood fire doors rated up to 90 minutes. The threshold comes with antique bronze finish screws that complement its architectural bronze satin finish (similar to US4), enhancing its overall visual appeal. Weighing 2.84 lbs./ft., it provides stability without compromising ease of installation. With a typical wall thickness of .187", this threshold is engineered for durability and long-lasting performance in high-traffic environments.

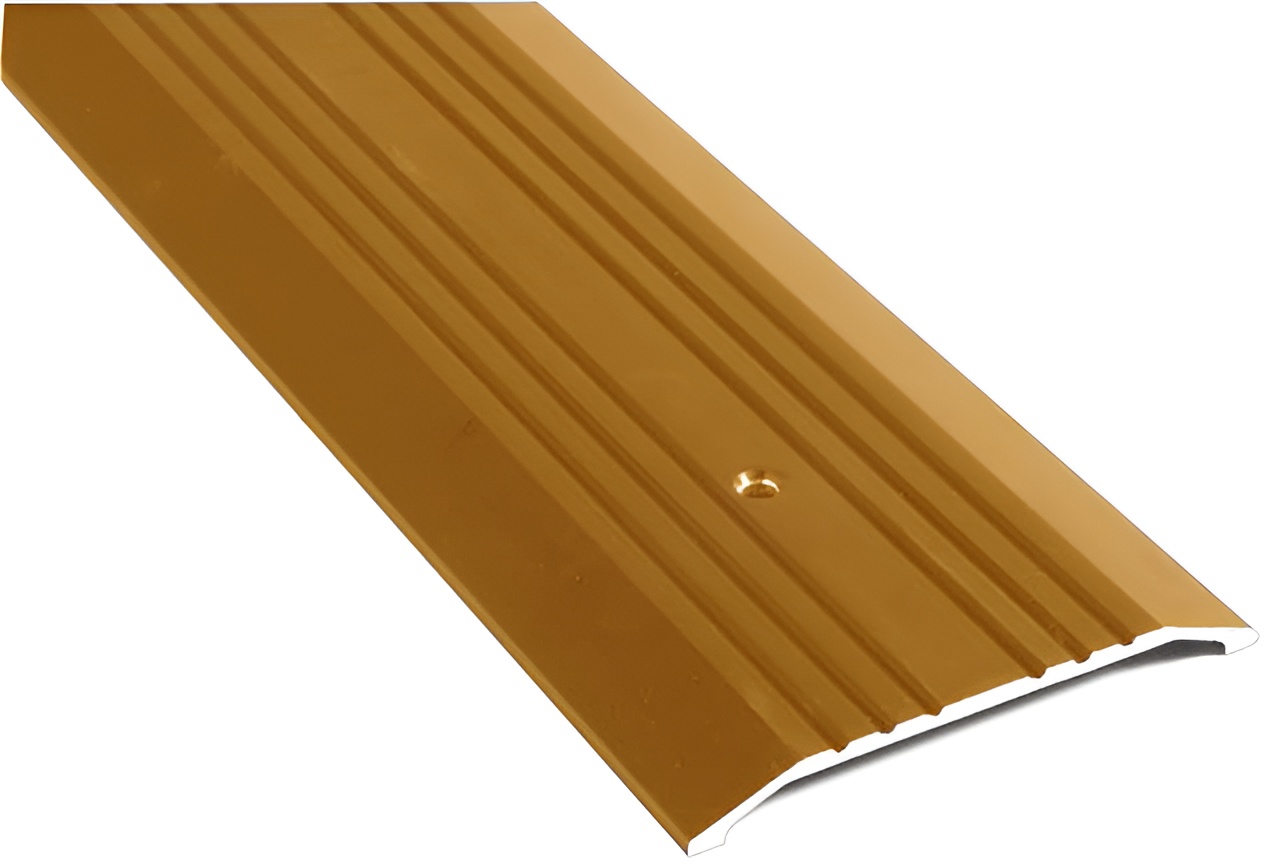

48" Architectural Bronze Saddle Threshold, 1/2" x 5"
Dimensions: 5" width x 1/2" tall
Finish: Architectural Bronze satin finish (728) similar to US4
Flange Material: Bronze
Hardware: #10 x 1-1/2" Solid Brass Wood Screws
Length: 48.0"
Material: Alloy CDA 385 (Copper Alloy No. C38500)
Series: Threshold Series
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standards: ADA, UL Classified UL10C
Subtype: Thresholds
Type: Bronze Saddle Threshold
Wall Thickness: Typical wall thickness .187"
Weight: Weight: 2.84 lbs./ft.
