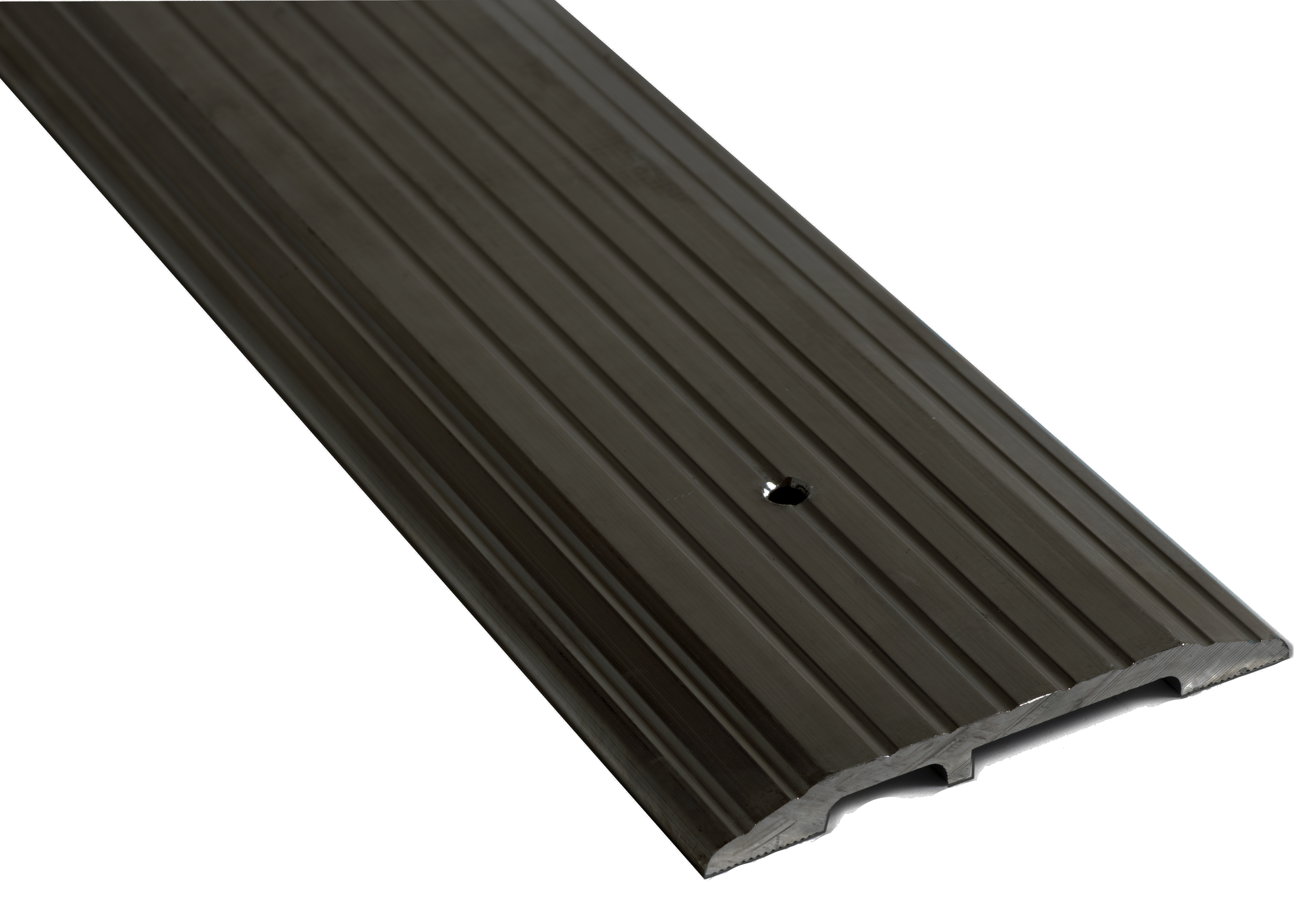

NGP 425HDDKB 36" ADA Compliant DKB-finish EXTRA Heavy Duty Threshold is engineered for durability and accessibility in high-traffic commercial environments. Constructed from robust aluminum alloy 6063 with T5 temper, this threshold measures 5" wide and stands 1/2" tall, making it ideal for delivery and storage doorways where heavier loads traverse. Designed to withstand forklift and vehicular traffic, the NGP 425HDDKB features a fluted top for enhanced traction, ensuring safety in busy areas. Its dark bronze finish not only adds an aesthetic appeal but also complements various architectural styles. This threshold is ADA compliant, meeting the stringent requirements of the ADA Standard for Accessible Design as well as ICC/ANSI A117.1. With a typical wall thickness of .244" and lightweight at just 1.6 lbs./ft., installation is efficient and straightforward. Each package includes #10 x 1-1/2" FH zinc plated wood screws for quick assembly. Additionally, this product is certified by UL for fire door applications, complying with both NFPA 80 and NFPA 252 standards, ensuring safety without compromising on performance. Choose the NGP 425HDDKB for a reliable and stylish threshold solution that meets the demands of modern commercial spaces.
Attributes
Alternate Codes: 425HDDKB 36IN, 425HDDKB36IN
Category: Weatherization
Certifications: A117.1, A156.21, ANSI, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Dimension: 5" x 1/2" x 36" (3')
Dimensions: 5" wide x 1/2" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Dark Bronze
Finish Code: DKB
Finish Color: Dark Bronze
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Flange Length: 36"
Flange Material: Aluminum
Flange Thickness: 1/2"
Flange Width: 5"
Hazardous Material: NO
Height: 1/2"
Length: 36.0"
Manufacturer: National Guard Products
Manufacturer Warranty: Limited 5 Year Warranty
Material: Aluminum alloy 6063, T5 temper
No Of Inners: 1
Order_ Qty: 1
PO date: 2024-10-08
Series: Threshold Series
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 Heavy Duty 10,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subcategory: Thresholds
Subtype: Thresholds
Type: Weatherization
Wall Thickness: Typical wall thickness: .244"
Weight: Weight: 1.6 lbs./ft.
Weight Rating: 000 lbs, 1
Width: 5"
