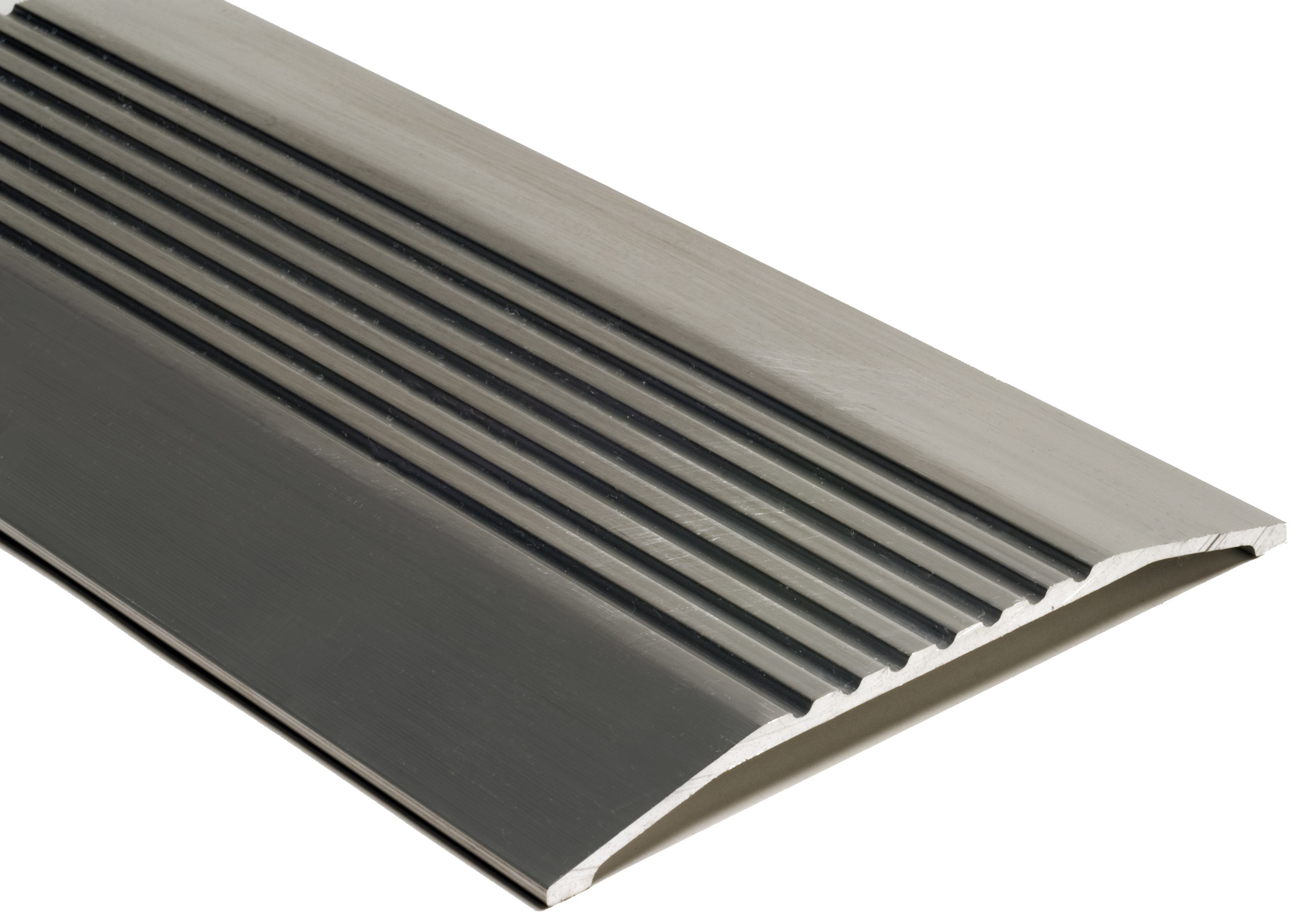

NGP 426 48" Mill Aluminum Saddle Threshold is a robust and versatile solution designed for commercial restroom applications. Crafted from high-quality aluminum alloy 6063 with a T5 temper, this threshold measures 6" wide and stands 1/2" tall, making it an ideal choice for creating seamless transitions between spaces while ensuring compliance with ADA accessibility standards. The threshold features a fluted top that enhances both functionality and aesthetics, providing a slip-resistant surface. Notably, it has a typical wall thickness of .175", contributing to its durability and strength. Weighing in at just 1.00 lbs./ft., this threshold is lightweight yet sturdy, making installation straightforward. Included with the product are #10 x 1-1/2" FH zinc plated wood screws, ensuring you have everything needed for a secure fit. The mill finish not only adds to its sleek look but also provides resistance to wear and tear, suitable for high-traffic environments. In addition, the NGP 426 is certified by UL to meet the stringent requirements of NFPA 80 and NFPA 252 for fire doors, making it a reliable choice for safety and compliance. Upgrade your restroom partition hardware with this exceptional threshold that combines practicality, compliance, and style.
Attributes
Alternate Codes: 426 48IN, 42648IN
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, ADA, ANSI, CAN/ULC-S104, IBC International Code 1008.1.3.4, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Dimensions: 6" wide x 1/2" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Mill finish
Finish Color: Mill Aluminum
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Flange Material: Mill
Hardware: #10 x 1-1/2" FH Zinc Plated wood screws
Height: 1/2"
Length: 48.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Series: 426
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standards: UL Classified UL10C; ANSI/BHMA Certified A156.21
Subtype: Thresholds
Type: Saddle Threshold
Wall Thickness: Typical wall thickness .175"
Weight: Weight: 1.00 lbs./ft.
Width: 6"
