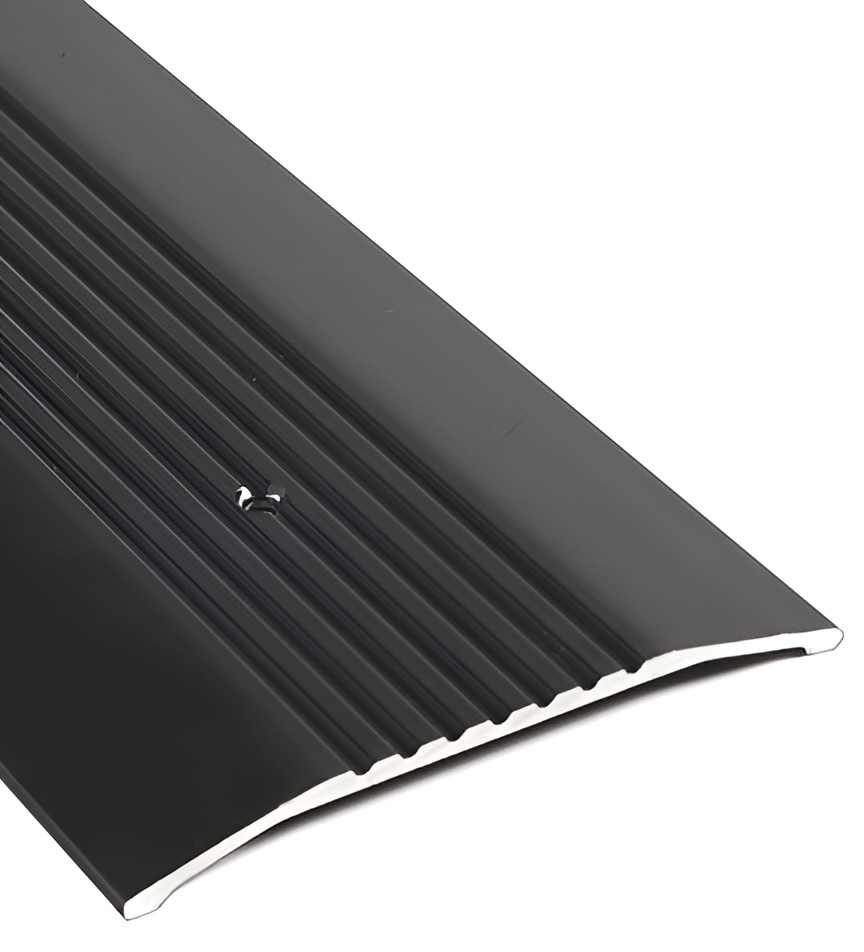

NGP 426DKB 36" DKB-finish Aluminum Saddle Threshold is an essential component for ensuring smooth transitions in commercial restroom environments. Crafted from durable aluminum alloy 6063 with a T5 temper, this threshold is designed to withstand heavy foot traffic while maintaining its robust structure. With dimensions of 6" wide and 1/2" tall, it effectively meets ADA compliance standards, providing accessibility for all users. The fluted top design not only enhances aesthetic appeal but also provides superior traction, ensuring safety in wet areas. Weighing just 1.00 lbs./ft., this threshold is lightweight yet sturdy, making installation a breeze. Included with the product are #10 x 1-1/2" FH zinc plated wood screws, streamlining the mounting process. The dark bronze finish adds a sophisticated touch, seamlessly integrating with various decor styles while providing lasting protection against wear. Furthermore, the NGP 426DKB is certified by UL for fire door applications, ensuring compliance with NFPA standards and enhancing safety measures. Ideal for both new constructions and renovations, this threshold will enhance the functionality and aesthetics of any restroom space. Choose the NGP 426DKB for a reliable solution that combines quality, safety, and style.
Attributes
Alternate Codes: 426DKB 36IN, 426DKB36IN
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, ADA, ANSI, CAN/ULC-S104, IBC International Code 1008.1.3.4, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C

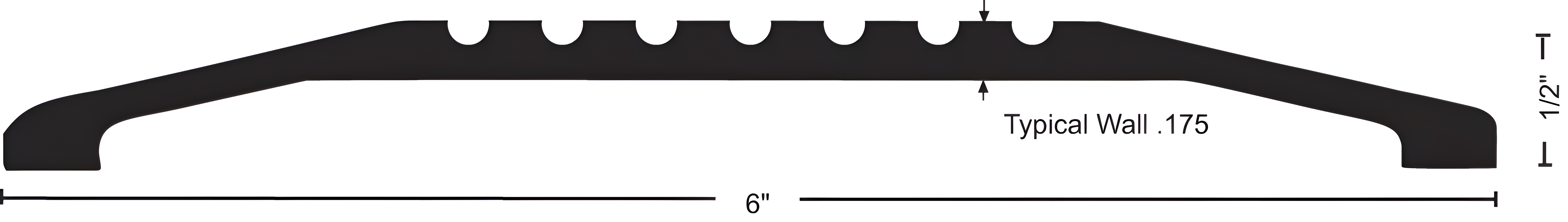

Dimensions: 6" wide x 1/2" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Dark bronze finish
Finish Color: Dark Bronze
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Height: 1/2"
Length: 36.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Series: 426
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Wall Thickness: Typical wall thickness .175"
Weight: Weight: 1.00 lbs./ft.
Width: 6"
