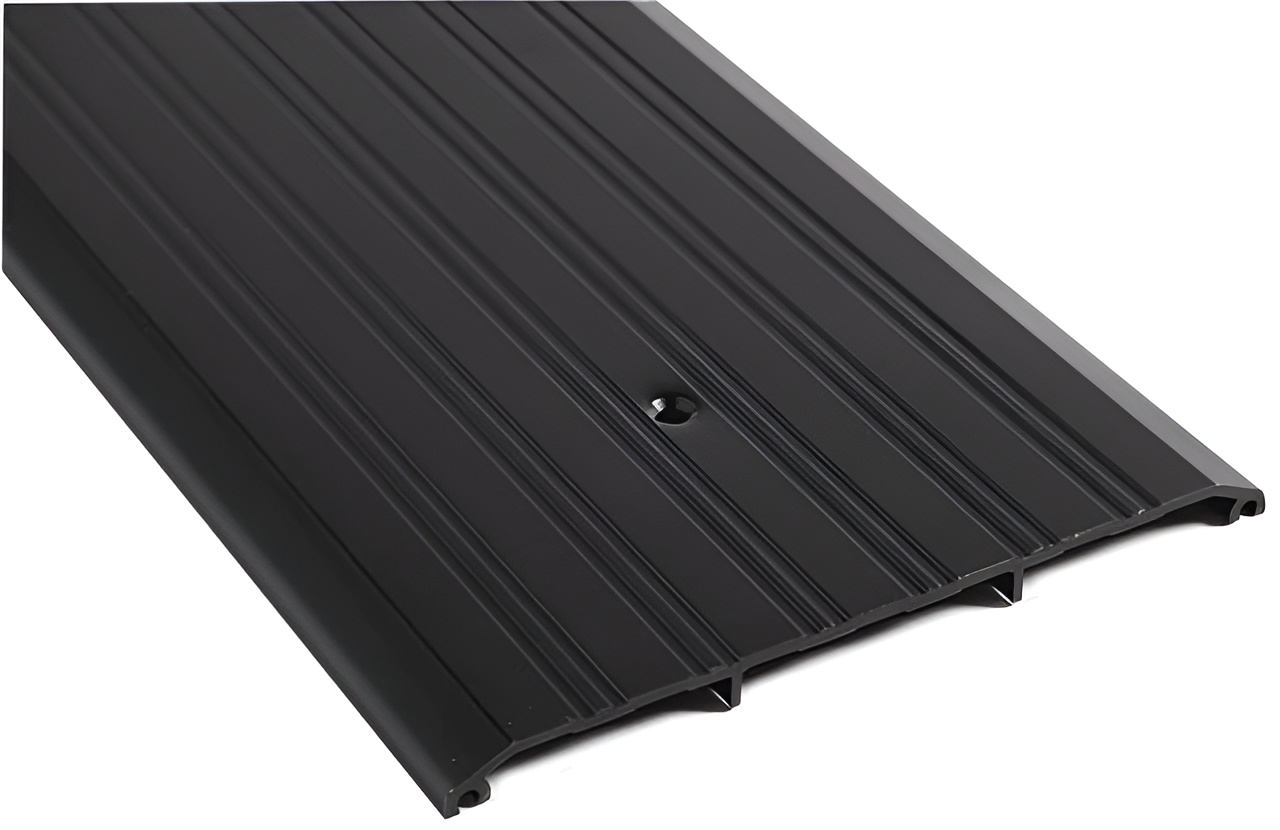

NGP 428EDKB 48" DKB-finish Aluminum Saddle Threshold is a robust solution designed for both functionality and aesthetic appeal in commercial environments. Crafted from aluminum alloy 6063 with T5 temper, this threshold measures 8 inches wide and stands 1/2 inch tall, providing a sturdy transition between spaces while meeting ADA compliance standards for accessibility. The fluted top design not only enhances its visual appeal but also aids in traction, ensuring safety in high-traffic areas. Weighing just 1.27 lbs./ft., it’s lightweight yet durable, making installation easy without compromising strength. The typical wall thickness of .120 adds to its reliability, while the included #10 x 1-1/2" FH zinc-plated wood screws ensure a secure fit. Finished in a sleek Dark Bronze/Black Anodized (DKB), the NGP 428EDKB blends seamlessly with various decor styles. Additionally, it is certified by UL for fire door applications, complying with NFPA standards and ANSI/BHMA certification requirements, ensuring it meets rigorous safety standards for use with both hollow metal and wood fire doors. This threshold is an ideal choice for professionals seeking a combination of durability, safety, and style in their restroom partition hardware.
Attributes
Alternate Codes: 428EDKB 48IN, 428EDKB48IN
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, A156.21, ADA, ANSI, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Dimensions: 8" wide x 1/2" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: DKB - Aluminum Dark Bronze/Black Anodized
Finish Color: Dark Bronze
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Height: 1/2"
Length: 48.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Series: 428E
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Thresholds
Type: Weatherization
Wall Thickness: Typical wall thickness .120
Weight: Weight: 1.27 lbs./ft.
Weight Rating: 000 lbs, 1
Width: 8"
