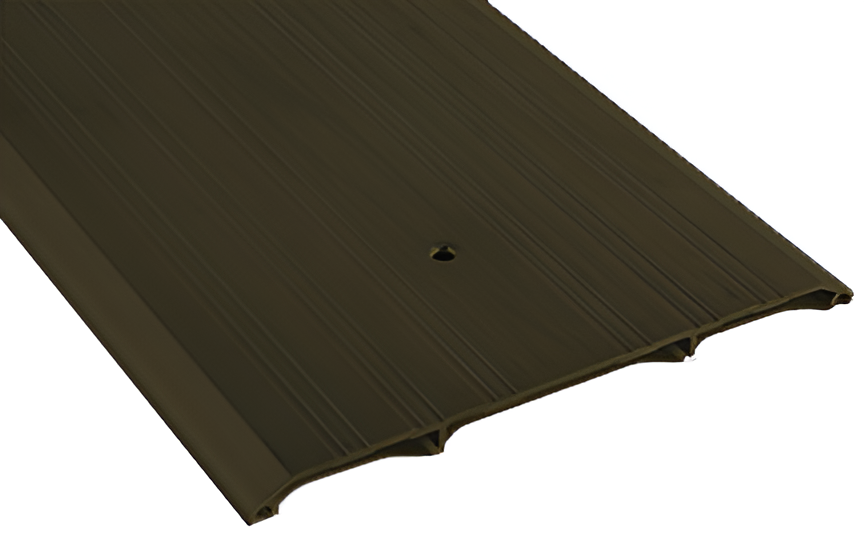

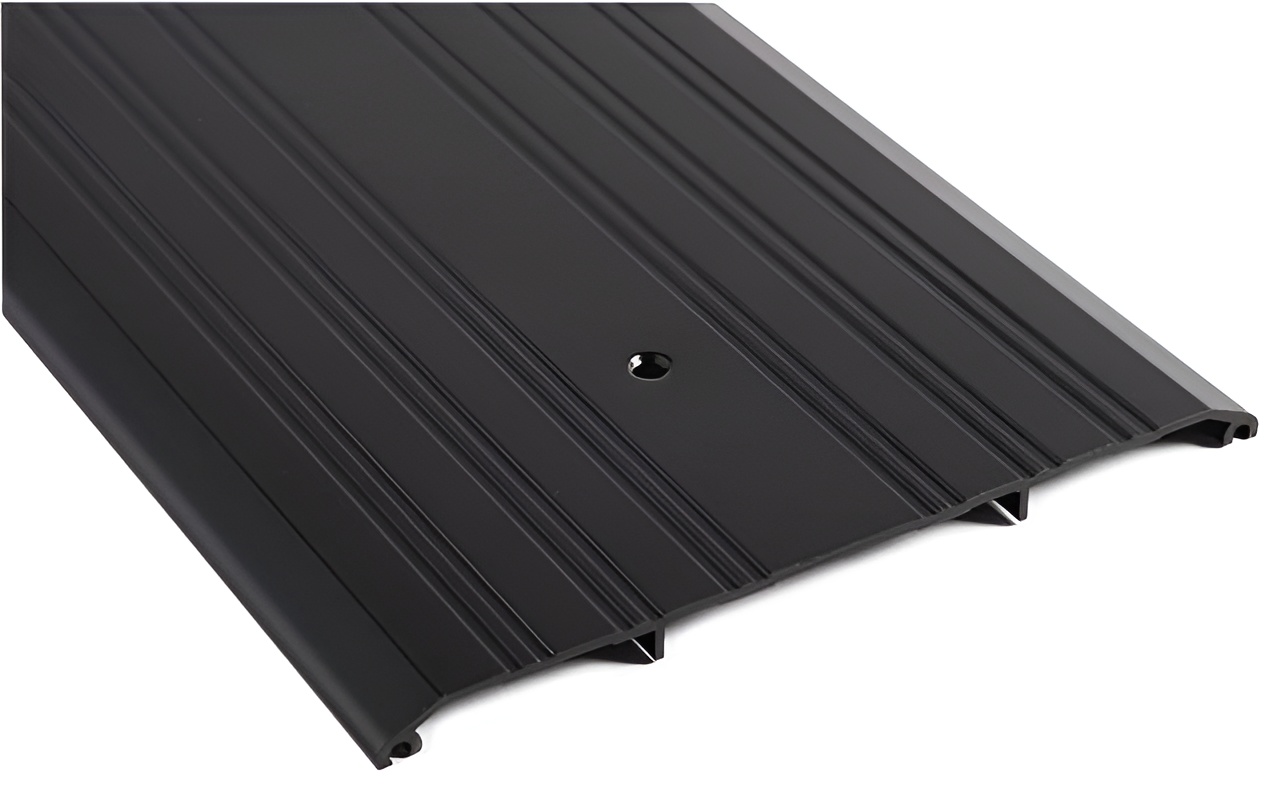

NGP 429EDKB 36" DKB-finish Aluminum Saddle Threshold is designed to provide a robust and stylish solution for your commercial restroom needs. Constructed from high-quality aluminum alloy 6063 with a T5 temper, this threshold boasts impressive durability while ensuring a sleek appearance with its DKB Aluminum Dark Bronze/Black Anodized finish. Measuring 9" wide and 1/2" tall, the fluted top not only enhances traction but also adds a modern touch to any restroom setting. With a typical wall thickness of .120 and a weight of 1.43 lbs./ft., this threshold is both sturdy and lightweight, making installation a breeze. Included with the threshold are #10 x 1-1/2" FH zinc plated wood screws for added convenience. This product is ADA compliant, meeting the requirements of the ADA Standard for Accessible Design, making it an excellent choice for barrier-free installations. Furthermore, it is certified by UL for various fire door applications, ensuring safety and reliability. The NGP 429EDKB threshold is ANSI/BHMA certified, confirming its ability to withstand a 1,000 lb. load, making it a dependable choice for high-traffic areas. Elevate your restroom's functionality and aesthetic with this exceptional threshold.
Attributes
Alternate Codes: 429EDKB 36IN, 429EDKB36IN
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, A156.21, ADA, ANSI, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Dimensions: 9" wide x 1/2" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: DKB Aluminum Dark Bronze/Black Anodized
Finish Color: Dark Bronze
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Height: 1/2"
Length: 36.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Series: 429E
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Thresholds
Type: Weatherization
Wall Thickness: Typical wall thickness .120
Weight: Weight: 1.43 lbs./ft.
Weight Rating: 000 lbs, 1
Width: 9"
