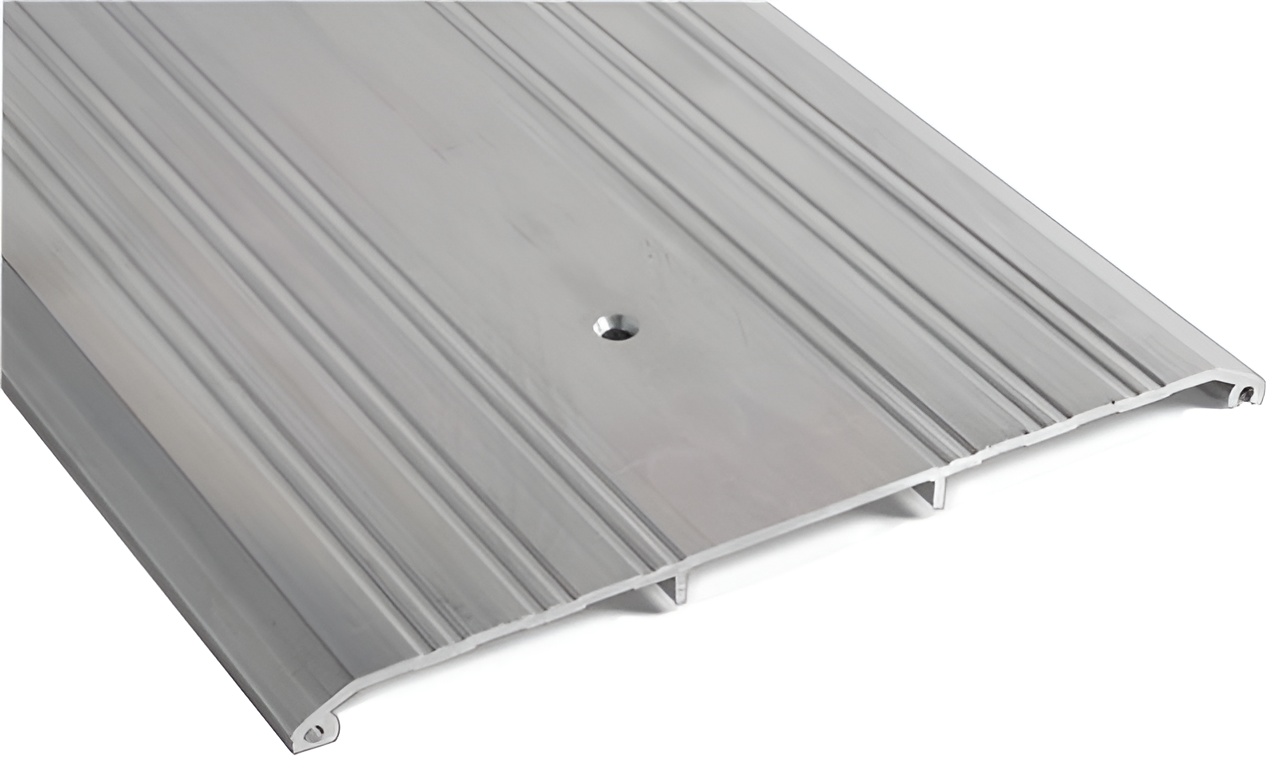

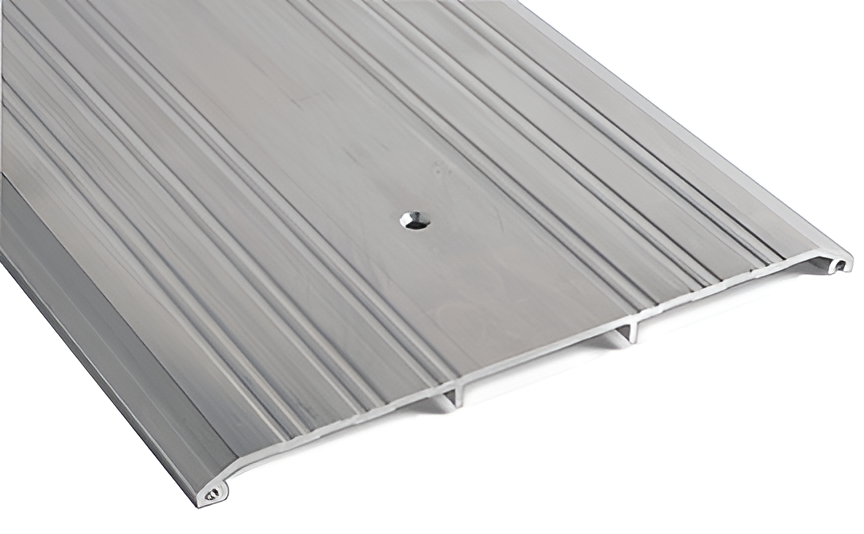

NGP 430E 48" Mill Aluminum Saddle Threshold is engineered for durability and functionality, making it an ideal choice for commercial restroom applications. Crafted from aluminum alloy 6063 with a T5 temper, this threshold boasts a robust construction with a typical wall thickness of .120 inches, ensuring it can withstand daily use. Measuring 10 inches wide and 1/2 inch tall, the fluted top design not only provides an aesthetic appeal but also enhances safety by minimizing slip risks. Weighing just 1.59 lbs. per foot, it is lightweight yet strong enough to meet rigorous standards. The threshold is ADA Compliant, ensuring barrier-free access in accordance with the ADA Standard for Accessible Design. Included with the product are #10 x 1-1/2" flat head zinc plated wood screws, making installation straightforward and efficient. The mill finish adds a sleek look, seamlessly integrating into any restroom design. Certified by UL to various fire safety standards, the NGP 430E is suitable for use with hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes. ANSI/BHMA certified, it has passed stringent load tests, ensuring reliability and performance in high-traffic environments. Choose NGP for quality restroom hardware that meets both aesthetic and functional demands.
Attributes
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
Accessible: Yes
Ada Compliance: Yes
Alternate Codes: 430E 48IN, 430E48IN
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, A156.21, ADA, ANSI, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Commercial Residential: Commercial
Dimensions: 10" wide x 1/2" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Mill finish
Finish Color: Mill Aluminum
Finish Description: Milled Aluminum
Finish Family: Matte Silver
Fire Rated: Yes
Fire Rating: 3 Hours
Height: 1/2"
Installation: Commercial
Length: 48.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Pack Qty: 1
Restrictions: Fragile
Series: 430E
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Thresholds
Type: Weatherization
Ul Listing: UL10C
Unit of Measure: Each
Wall Thickness: Typical wall thickness .120
Weight: Weight: 1.59 lbs./ft.
Weight Rating: 000 lbs, 1
Width: 10"
