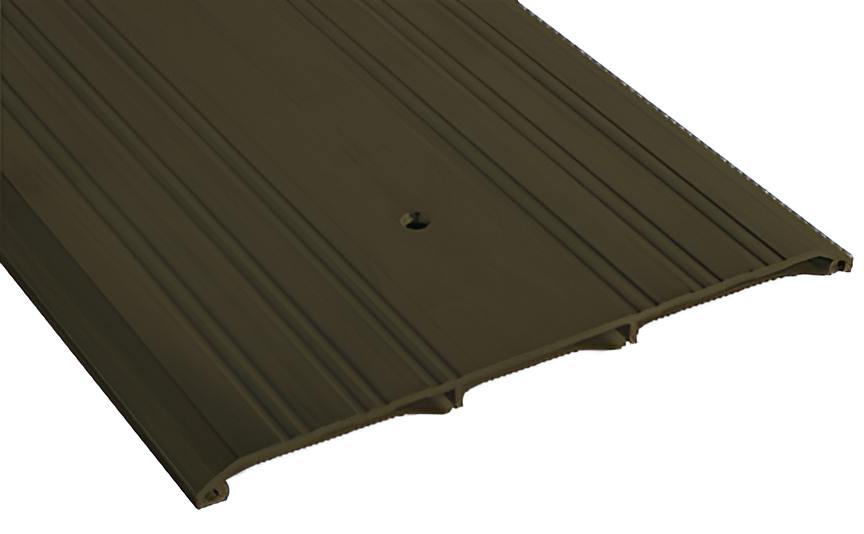

NGP 430EDKB 48" DKB-finish Aluminum Saddle Threshold is designed to provide both functionality and aesthetics in commercial restroom environments. Crafted from durable aluminum alloy 6063 with T5 temper, this threshold measures 10 inches wide and stands 1/2 inch tall, making it an ideal choice for barrier-free access compliant with ADA standards. Its fluted top not only enhances visual appeal but also aids in slip resistance, ensuring safety in high-traffic areas. Weighing in at just 1.59 lbs. per foot, the threshold is lightweight yet robust, with a typical wall thickness of .120 inches for added durability. The DKB (Dark Bronze/Black Anodized) finish offers a sleek look that complements various design schemes while providing resistance to corrosion. Included with the product are #10 x 1-1/2" FH zinc plated wood screws for hassle-free installation. The NGP 430EDKB is certified by UL for use with both hollow metal and wood fire doors, ensuring compliance with NFPA regulations for fire safety. This threshold is not only a practical solution for transitioning between spaces but also a reliable choice for building professionals seeking quality and compliance in restroom partition hardware.
Attributes
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
Alternate Codes: 430EDKB 48IN, 430EDKB48IN
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, A156.21, ADA, ANSI, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Dimensions: 10" wide x 1/2" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: DKB - Aluminum Dark Bronze/Black Anodized
Finish Color: Dark Bronze
Finish Description: Dark Bronze
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Height: 1/2"
Length: 48.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Restrictions: Fragile
Series: 430E
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Threshold
Type: Hinges and Pivots
Wall Thickness: Typical wall thickness .120
Weight: Weight: 1.59 lbs./ft.
Weight Rating: 000 lbs, 1
Width: 10"
