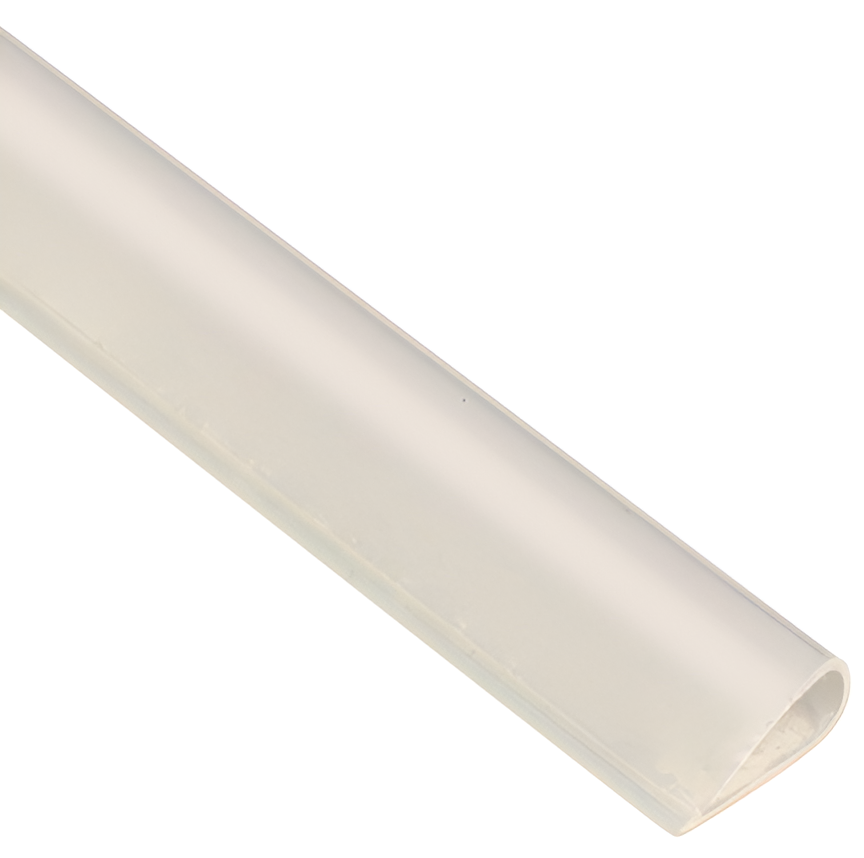

NGP 5050CL 17FT Self-Adhesive Clear Silicone Bulb Fire Smoke Seal 1/4 H x 1/2in W x 17ft

National Guard Products Inc 5050CL 17FT Self-Adhesive Clear Silicone Bulb Fire Smoke Seal is a vital solution for ensuring enhanced fire safety and draft control in residential and commercial spaces. Constructed from a synthetic rubber polymer, Siloxane, this seal boasts excellent flexibility and memory, allowing it to maintain its shape and integrity even in extreme temperatures ranging from -100°F to 500°F. This self-adhesive seal is flame resistant and moisture resistant, making it suitable for various environments, particularly those using FM200 or Halon fire suppression systems. Its BHMA certification to ANSI/BHMA A156.22 performance tests guarantees its effectiveness against heat, cold, and air infiltration. The modified acrylic pressure-sensitive adhesive provides high initial adhesion and long-term holding power for both exterior and interior applications. Measuring 1/4" high and 1/2" wide, the 5050CL seal is available in convenient 17', 20', 21', and 25' rolls, ensuring you have the right length for your project. It effectively seals gaps around doors, offering smoke and draft control for up to 90 minutes on wood fire doors and up to 3 hours on hollow metal fire doors. Compliant with various safety standards, this seal is an essential accessory for maintaining safety and energy efficiency in any building.

Self-Adhesive Clear Silicone Bulb Fire Smoke Seal 1/4 H x 1/2in W x 17ft

• Synthetic rubber polymer: Siloxane
• Self-Adhesive
• Excellent flexibility and memory
• Flame resistant
• Moisture resistant
• Temperature range -100°F to 500°F, remains flexible at extreme temperatures
• Excellent resistance to ozone, UV and aging
• Recommended for areas using FM200 or Halon fire suppression systems
• BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold and air infiltration
• Modified acrylic pressure sensitive adhesive protected by release liner
• Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations
• Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals
• End use temperature range of adhesive, long term exposure -30°F up to 250°F
• Shelf life of adhesive prior to installation is one year when stored at 75°F and 50% relative humidity or less
• Edge sealing system - category "G" for 20 minute rated category B wood doors perimeter application up to: single swing 4'0 x 8'0, pairs 8'0 x 8'0. Use 9550 at the meeting edge of pairs
• Smoke and draft control - category "H", up to 3 hours hollow metal fire doors, up to 90 minutes wood fire doors
• Meets requirements of RoHS directive
• 1/2" wide x 1/4" tall
• Available in 17', 20', 21' and 25' rolls
• Clear

Features

• Excellent flexibility and memory
• Recommended for areas using FM200 or Halon fire suppression systems
• Meets requirements of RoHS directive
• Flame resistant
• Synthetic rubber polymer: Siloxane
• Modified acrylic pressure sensitive adhesive protected by release liner
• Resistant to aging, weathering, UV radiation, water, detergent, alcohol and the influence of chemicals
• Edge sealing system - category "G" for 20 minute rated category B wood doors perimeter application up to: single swing 4'0 x 8'0, pairs 8'0 x 8'0. Use 9550 at the meeting edge of pairs
• Clear
• Temperature range -100°F to 500°F, remains flexible at extreme temperatures
• Shelf life of adhesive prior to installation is one year when stored at 75°F and 50% relative humidity or less
• Excellent resistance to ozone, UV and aging
• 1/2" wide x 1/4" tall
• BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold and air infiltration
• Self-Adhesive
• Available in 17', 20', 21' and 25' rolls
• Moisture resistant
• Provides high initial adhesion and long term holding power for permanent mounting in exterior or interior locations
• End use temperature range of adhesive, long term exposure -30°F up to 250°F
• Smoke and draft control - category "H", up to 3 hours hollow metal fire doors, up to 90 minutes wood fire doors
