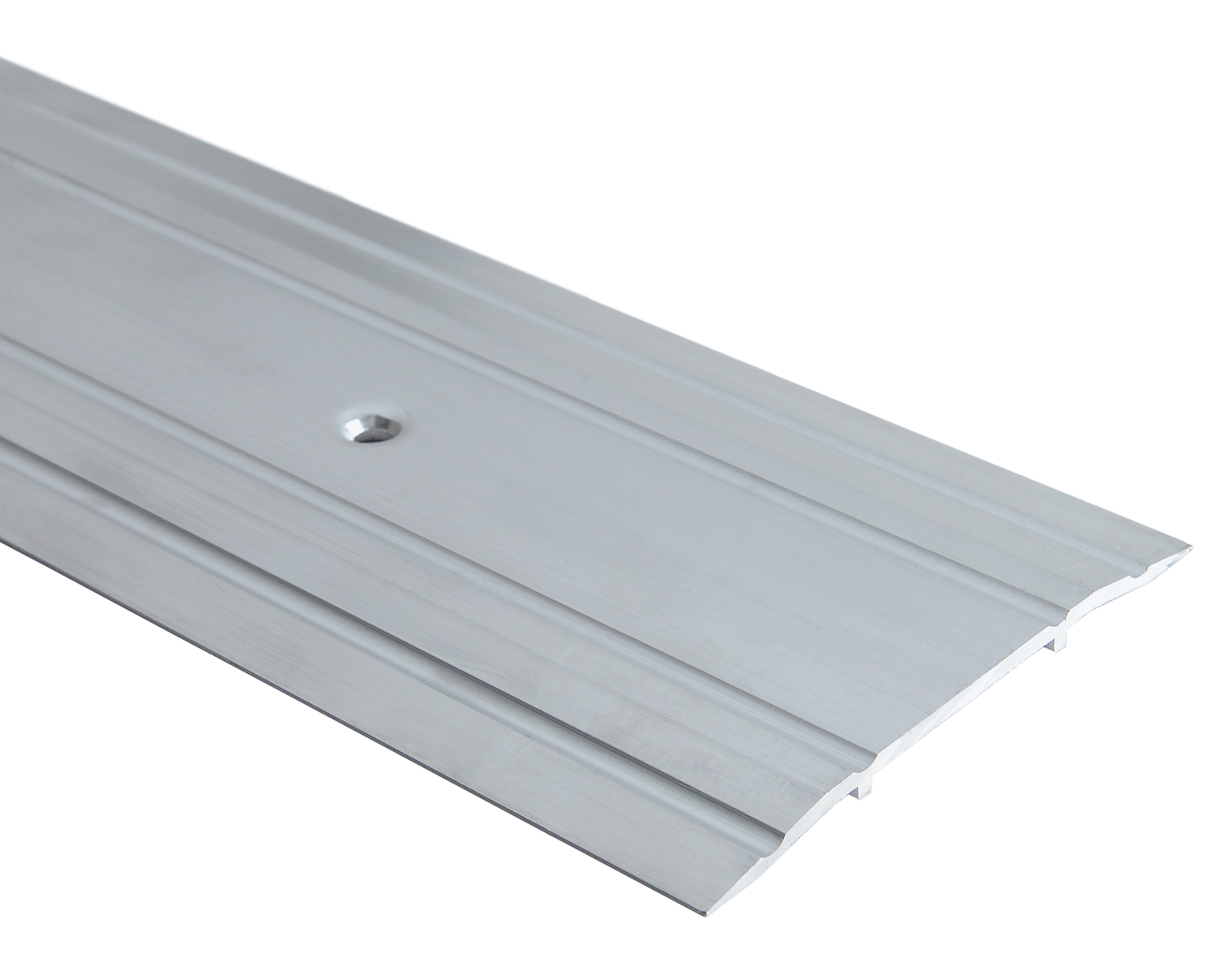

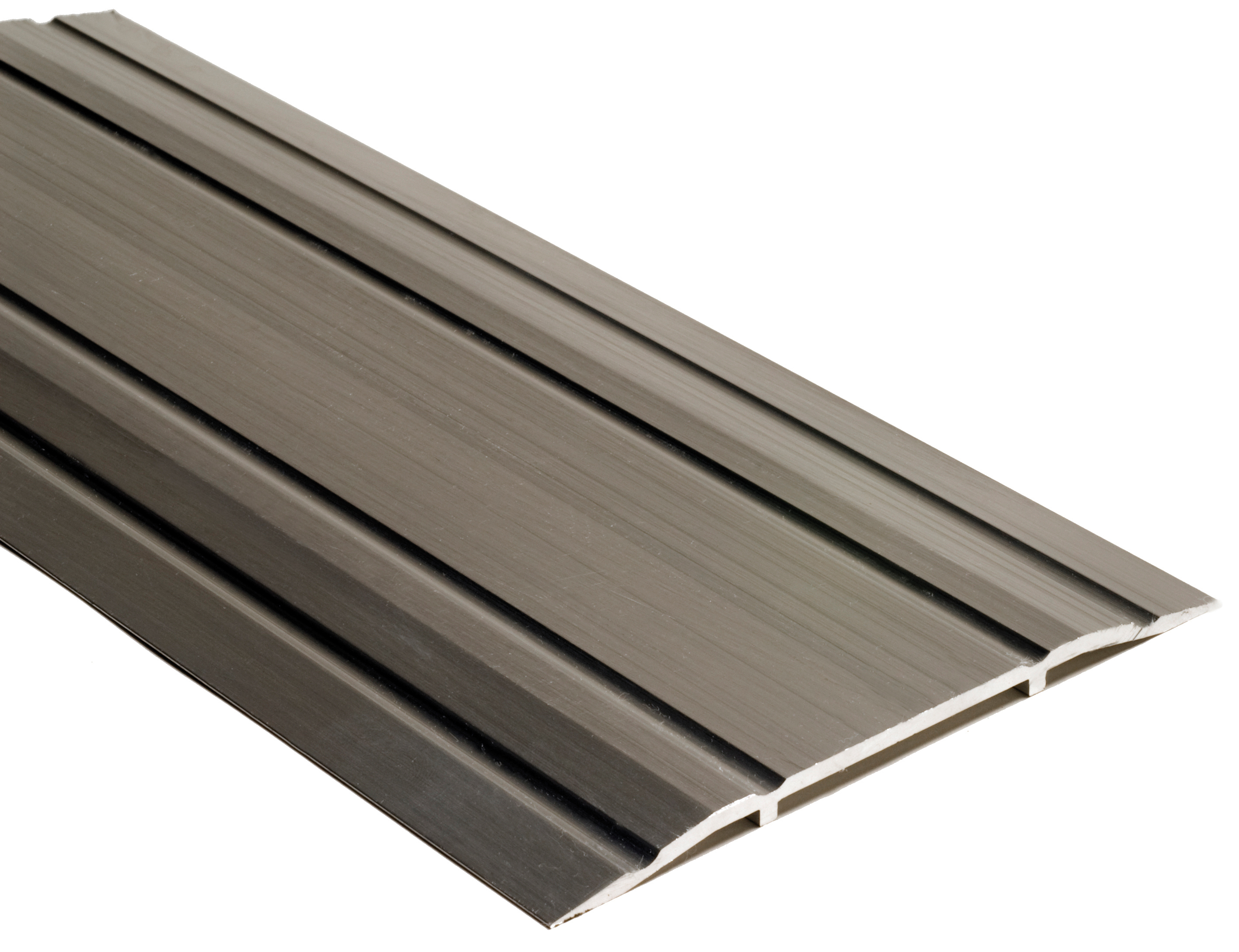

NGP 513 48" Mill Aluminum Saddle Threshold, 1/4" x 5" is a robust and reliable solution designed for commercial restroom applications. Crafted from high-quality aluminum alloy 6063 with T5 temper, this threshold measures 5" wide and stands 1/4" tall, making it an ideal choice for ensuring smooth transitions between spaces. With a fluted top, it not only provides functional support but also adds a touch of style. This threshold is BHMA certified to meet ANSI/BHMA A156.21 standards, passing a rigorous 1,000 lb. load test, ensuring its durability and strength. It features a typical wall thickness of .125", weighing just .68 lbs. per foot for easy installation. Included with the product are #10 x 1-1/2" FH zinc plated wood screws, simplifying the setup process. Additionally, the NGP 513 is ADA compliant, meeting the requirements of the ADA Standard for Accessible Design, ensuring barrier-free access. It is also certified by UL for use with fire doors, complying with NFPA standards for up to 3-hour ratings in hollow metal doors and up to 90 minutes for wood doors. With its mill finish, this threshold is not only functional but also enhances the overall aesthetic of any restroom environment.
Attributes
Restriction message: Due to the fragile nature of this item, it can be easily damaged in shipping. The following charges apply to insure your items arrive in good condition. 1 to 12 Pieces: $19.50 13 to 24 Pieces: $39.50 25 to 36 Pieces: $58.50
Alternate Codes: 513 48IN, 51348IN
BHMA: BHMA certified to ANSI/BHMA A156.21 1,000 lb. load test
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, A156.21, ADA, ANSI, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, NFPA 252, NFPA 80, UL 10b, UL 10C
Dimensions: 5" wide x 1/4" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included
Finish: Mill finish
Finish Color: Mill Aluminum
Finish Description: Milled Aluminum
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Flange Material: Mill
Hardware: #10 x 1-1/2" FH Zinc Plated Wood Screws
Height: 1/4"
Length: 48.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Restrictions: Fragile
Series: 513
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 1,000 lb. load test and are listed in the BHMA Certified Products Directory.
Standards: UL Classified UL10C; ANSI/BHMA Certified A156.21
Subtype: Thresholds
Type: Saddle Threshold
Wall Thickness: Typical wall thickness .125"
Weight: Weight: .68 lbs./ft.
Weight Rating: 000 lbs, 1
Width: 5"
