NGP 513BR 36" Architectural Bronze Saddle Threshold is expertly crafted from Alloy CDA 385 (Copper Alloy No. C38500), ensuring durability and longevity. With dimensions of 5" in width and 1/4" in height, this threshold features a stylish fluted top, adding an elegant touch to any commercial restroom or facility entrance. Weighing in at just 1.96 lbs. per foot, the NGP 513BR is designed for easy installation, featuring #10 x 1-1/2" antique bronze finish brass wood screws included with the product. The architectural bronze satin finish (similar to US4) not only enhances its aesthetic appeal but also provides a robust barrier against wear and tear. This threshold is ADA compliant, meeting the requirements of the ADA Standard for Accessible Design, making it a practical choice for barrier-free facilities. Additionally, it is certified by UL for application to both hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes, ensuring it adheres to stringent safety standards, including NFPA 80 and NFPA 252. The NGP 513BR is an ideal solution for those seeking a reliable, functional, and visually appealing threshold that meets both accessibility and fire safety requirements.
36" Architectural Bronze Saddle Threshold, 1/4" x 5"

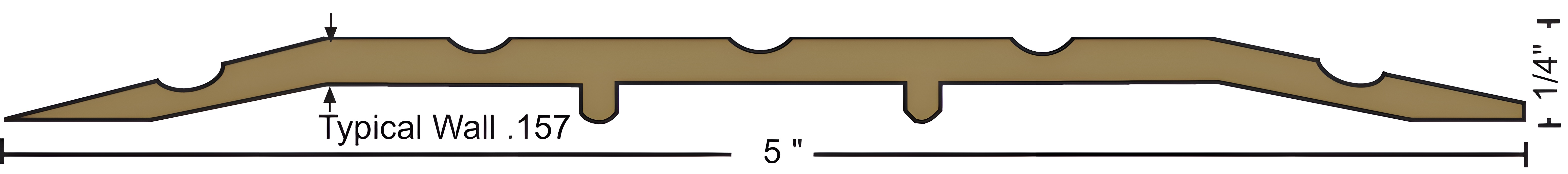

Dimensions: 5" width x 1/4" tall
Finish: Architectural Bronze satin finish (728) similar to US4
Length: 36.0"
Material: Alloy CDA 385 (Copper Alloy No. C38500)
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Wall Thickness: Typical wall thickness .157"
Weight: Weight: 1.96 lbs./ft.
