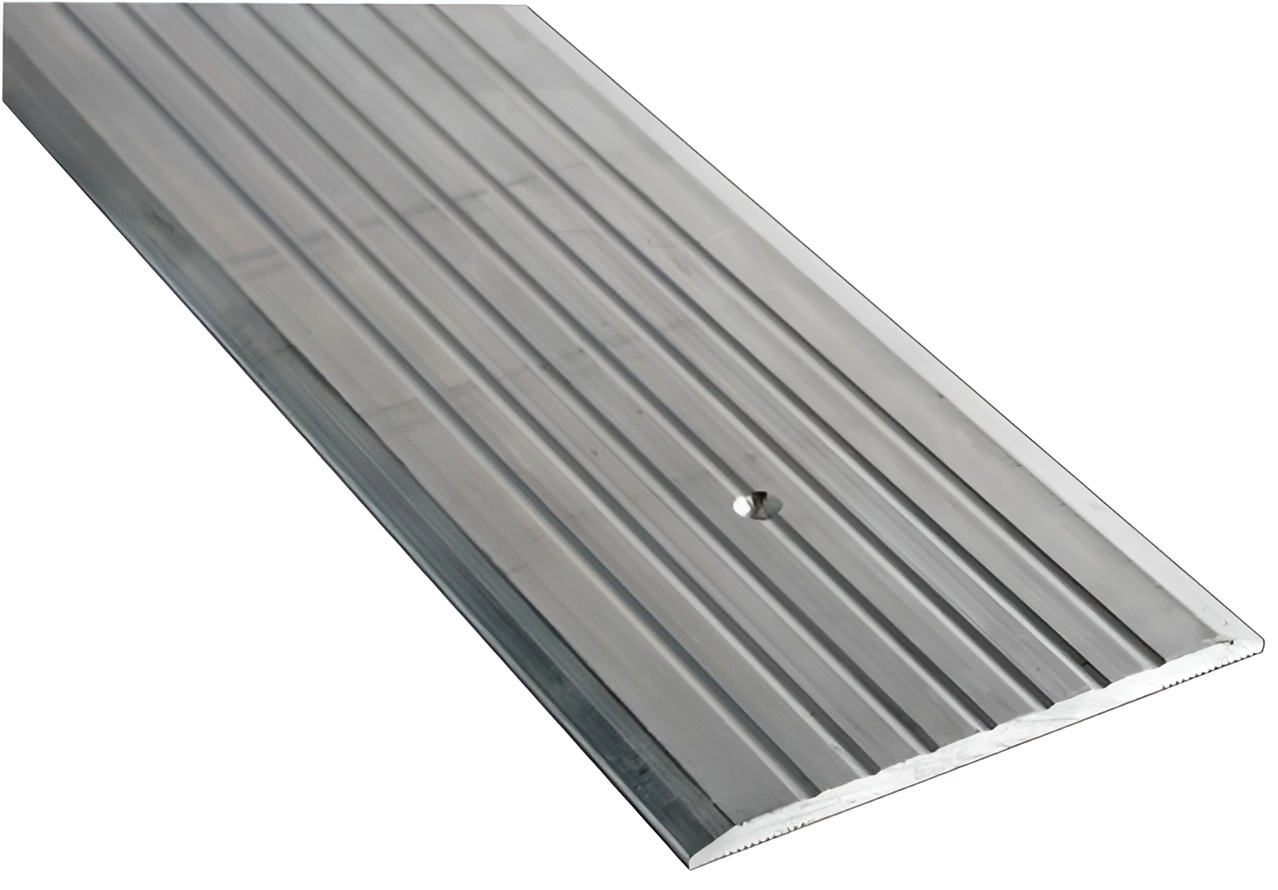

NGP 513HD 48" ADA Compliant Heavy Duty Aluminum Threshold offers a robust solution for high-traffic areas requiring accessibility compliance. Crafted from durable aluminum alloy 6063 with a T5 temper, this threshold measures 5 inches wide and stands 1/4 inch tall, making it ideal for delivery and storage doorways where heavier loads are commonplace. Designed specifically for environments with forklift or vehicular traffic, the NGP 513HD weighs just 1.4 lbs. per foot, ensuring easy installation without sacrificing strength. The fluted top not only enhances traction but also adds a touch of visual interest. This threshold is supplied with #10 x 1-1/2" FH zinc-plated wood screws, ensuring a secure fit. Certified for ADA compliance, it meets the requirements of the ADA Standard for Accessible Design, making it a reliable choice for barrier-free environments. Additionally, it is UL certified for fire safety, suitable for hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes. The mill finish provides a clean and professional look, ready to blend seamlessly into any commercial facility. Choose the NGP 513HD for a heavy-duty, compliant, and aesthetically pleasing threshold solution that stands up to the demands of your space.
Attributes
Alternate Codes: 513HD 48IN, 513HD48IN
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, A156.21, ADA, ANSI, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Dimensions: 5" wide x 1/4" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Mill finish
Finish Color: Mill Aluminum
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Height: 1/4"
Length: 48.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Series: 513HD
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 Heavy Duty 10,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Thresholds
Type: Weatherization
Weight: Weight: 1.4 lbs./ft.
Weight Rating: 000 lbs, 10
Width: 5"
