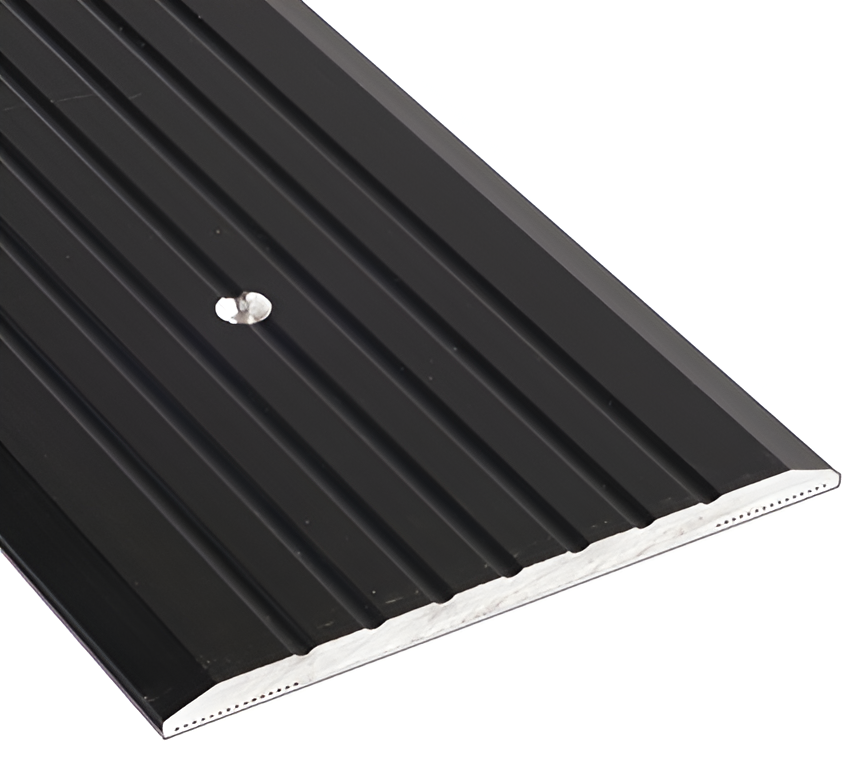

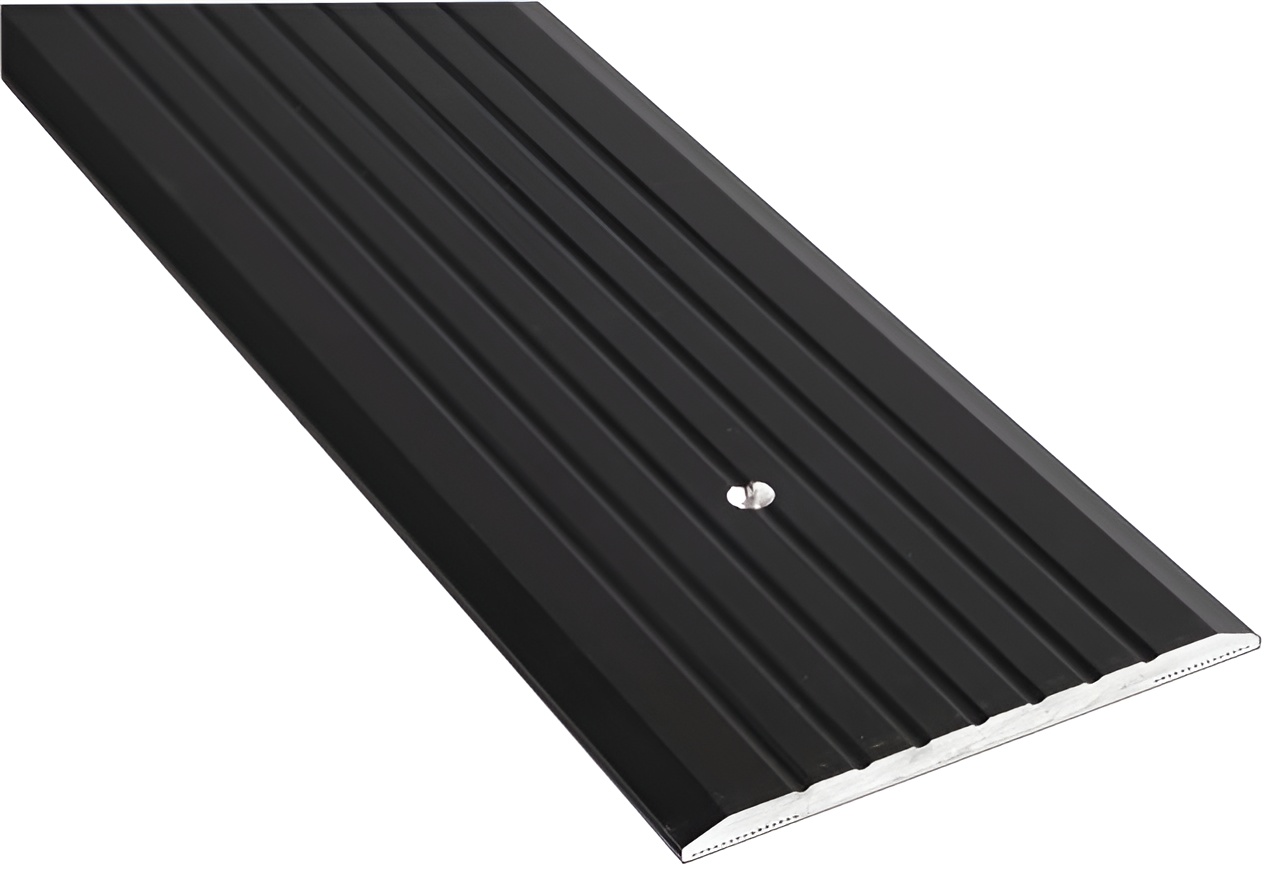

NGP 513HDDKB 48" ADA Compliant DKB-finish Heavy Duty Aluminum Threshold is engineered for durability and compliance, making it an ideal choice for commercial restroom applications. Crafted from high-quality aluminum alloy 6063 with a T5 temper, this threshold measures 5" wide and stands 1/4" tall, providing a robust barrier-free transition that meets ADA standards for accessible design. Designed specifically for delivery and storage doorways, the NGP 513HDDKB excels in environments with heavy foot and vehicular traffic, such as forklifts. Its fluted top not only enhances traction but also adds a touch of sophistication to any space. Weighing in at just 1.4 lbs. per foot, this threshold is lightweight yet strong, accommodating loads up to 10,000 lbs., certified by ANSI/BHMA. Installation is straightforward, thanks to the included #10 x 1-1/2" FH zinc-plated wood screws, which are supplied in a dark bronze finish that complements the threshold’s elegant design. Moreover, this product is UL certified for fire door applications, ensuring safety and compliance with NFPA standards. The NGP 513HDDKB is the reliable choice for professionals seeking superior performance and peace of mind in commercial restroom settings.
Attributes
Alternate Codes: 513HDDKB 48IN, 513HDDKB48IN
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, A156.21, ADA, ANSI, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Dimensions: 5" wide x 1/4" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Dark bronze finish
Finish Color: Dark Bronze
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Height: 1/4"
Length: 48.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Series: 513HD
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 Heavy Duty 10,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Thresholds
Type: Weatherization
Weight: Weight: 1.4 lbs./ft.
Weight Rating: 000 lbs, 10
Width: 5"
