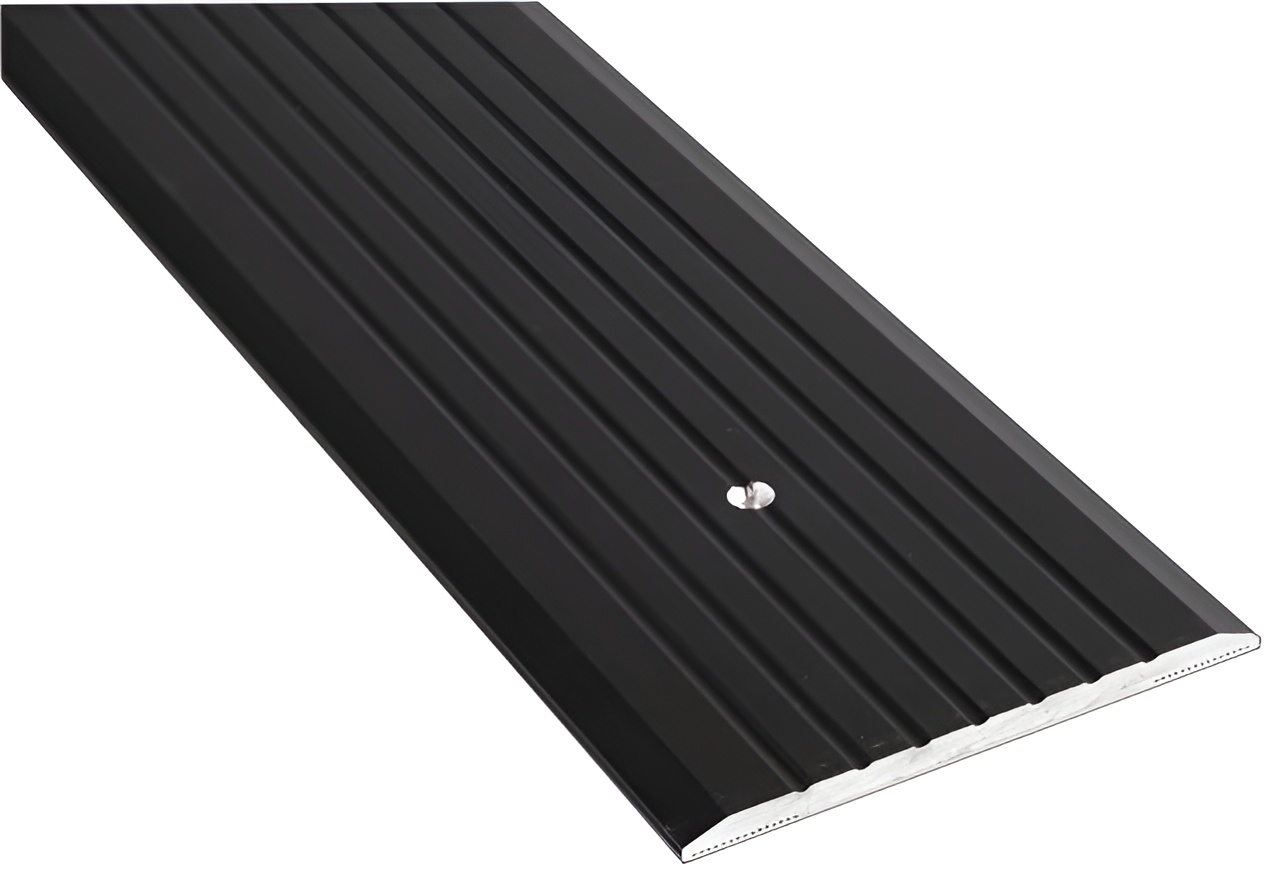

NGP 513HDDKB 72" ADA Compliant DKB-finish Heavy Duty Aluminum Threshold is designed for high-traffic areas where durability and accessibility are paramount. Constructed from aluminum alloy 6063 with a T5 temper, this threshold measures 5" wide and stands 1/4" tall, making it an ideal solution for delivery and storage doorways that regularly accommodate heavier loads, including forklift or vehicular traffic. The fluted top surface enhances traction, ensuring safe passage in busy environments. Weighing only 1.4 lbs./ft., this threshold is lightweight yet robust. It includes #10 x 1-1/2" FH zinc-plated wood screws for secure installation, and the dark bronze finish adds a sophisticated touch to any setting. This product is not only ADA compliant, meeting the standards of the ADA Standard for Accessible Design, but it is also certified by UL for various fire door applications, ensuring safety and compliance with NFPA regulations. Furthermore, it has been tested to support heavy loads, passing the ANSI/BHMA A156.21 standards for heavy-duty use. Upgrade your commercial restroom or entryway with the NGP 513HDDKB threshold, where strength meets compliance and style.
Attributes
Alternate Codes: 513HDDKB 72IN, 513HDDKB72IN
Category: Door Accessories, Glass Aluminum Hardware, Thresholds & Seals
Certifications: A117.1, A156.21, ADA, ANSI, BHMA, CAN/ULC-S104, IBC International Code 1008.1.3.4, ICC, NFPA 252, NFPA 80, UL 10b, UL 10C
Dimensions: 5" wide x 1/4" tall
Door Application: Thresholds & Seals
Fasteners: #10 x 1-1/2" FH zinc plated wood screws included. Dark bronze supplied with DKB thresholds
Finish: Dark bronze finish
Finish Color: Dark Bronze
Fire Rated: Yes
Fire Rating: 180 min, 90 min
Height: 1/4"
Length: 72.0"
Manufacturer: National Guard Products
Material: Aluminum alloy 6063, T5 temper
Series: 513HD
Shipping Limitations: Some products exceed standard small package size regulations and may incur additional fees. Items measuring 96" or more could require extra charges or LTL shipping. Please keep this in mind when ordering, and contact customer service for more details.
Standard-0: ADA COMPLIANT. Barrier Free Thresholds meet the requirements of the ADA Standard for Accessible Design and ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities.
Standard-1: CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-2: POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Standard-3: ANSI/BHMA CERTIFIED. Certified thresholds comply with American National Standard for Thresholds ANSI/BHMA A156.21 Heavy Duty 10,000 lb. load test and are listed in the BHMA Certified Products Directory.
Subtype: Thresholds
Type: Weatherization
Weight: Weight: 1.4 lbs./ft.
Weight Rating: 000 lbs, 10
Width: 5"
